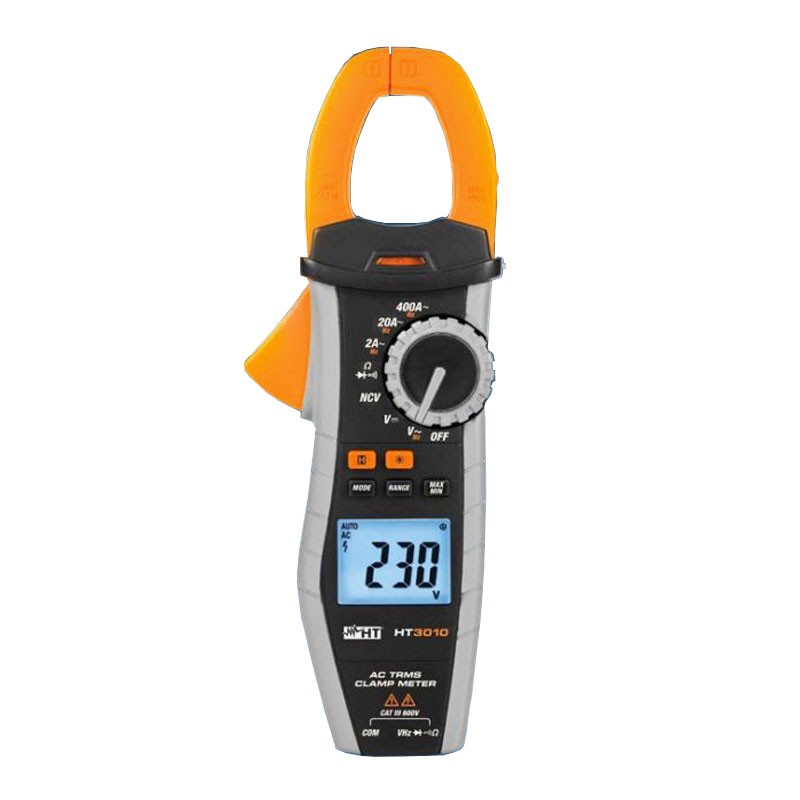

HT TRMS 400A 600V Calibration Certified HT Current Clamp HP03010C
HTI HP03010C
8052870672292
HT TRMS 400A current clamp for professional measurements of AC current, AC/DC voltage, resistance and continuity. Built-in sensor for non-contact voltage detection and backlit display, with the following features:
-
AC current measurement up to 400A TRMS
-
AC/DC voltage up to 600V
-
Resistance, continuity and diode test
-
Non-contact AC voltage detection
-
Backlit display with HOLD and MAX/MIN function
-
Auto power off and autorange
-
Calibration certificate included
€216.66
€216.66
Tax included
Tax included
Items Available: 1
Current clamp reliability and safety in every environment
The current clamp is designed to provide accurate and safe measurements in both civil and industrial environments. Thanks to True RMS (TRMS) technology, the instrument can provide accurate values even on non-sinusoidal waveforms, making it ideal for applications on modern systems and complex electronic loads.
Built-in functions: convenience in every operation
In addition to classic current and voltage measurements, HT3010 is equipped with:
-
Internal non-contact AC voltage detection sensor, which activates an LED and buzzer to signal the presence of voltage in cables
-
Continuity test with audible buzzer
-
Diode test
-
Data HOLD function to freeze the value on the display
-
MAX/MIN mode to record extreme values during a measurement
-
Backlit LCD display with 2000 reading points
-
Auto Power Off for power saving
Recommended applications
-
Checks on civil electrical installations
-
Interventions on industrial plants
-
Diagnostics on machinery and HVAC systems
-
Tests on electrical panels and AC/DC circuits
Technical Specifications Current Clamp TRMS
Measurement Functions
| Measurement Type | TRMS |
| AC Current | Up to 400 A |
| AC/DC Voltage | Up to 600 V |
| Resistance | Yes |
| Continuity test | Yes, with buzzer |
| Diode test | Yes |
| Non-contact voltage detection (NCV) | Yes, with LED and buzzer |
Display and Functions
| Display | LCD 2000 dots, backlit |
| Functions | HOLD, MAX/MIN, Autorange, Auto OFF |
Safety and Certifications
| Safety | IEC/EN61010-1, CAT III 600V |
| Calibration certificate | Included |
There are no reviews
Data sheet
- Type: Current Clamps
