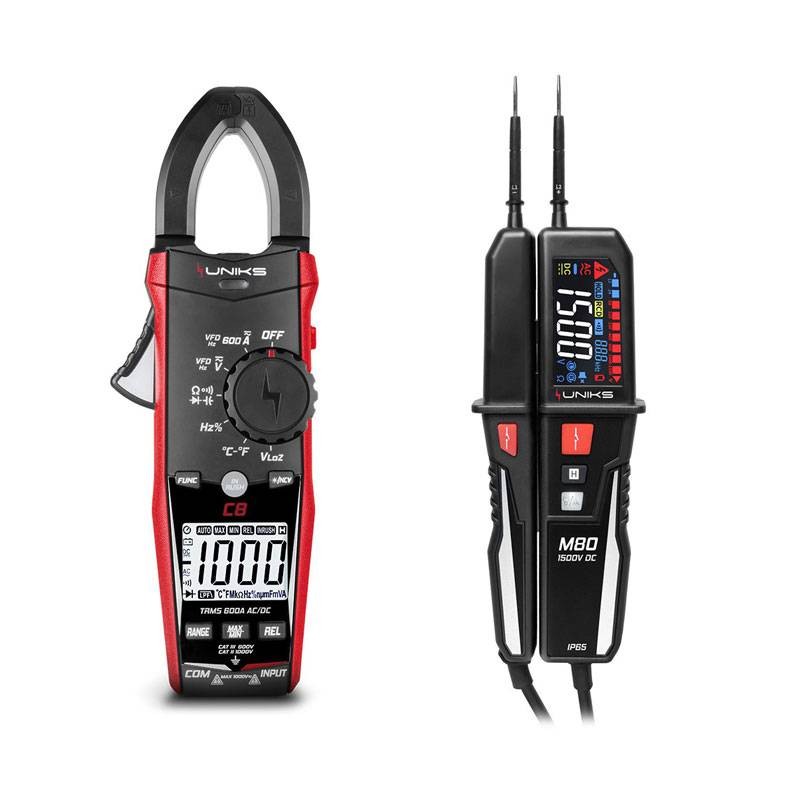

Uniks Kit C8 Current Clamp and M80 Two-Pole Tester M80C8EDITION2
UNK M80C8EDITION2
8052461742748
Uniks C8 current clamp with TRMS technology and the Uniks M80 two-pole tester provide a complete professional solution for precise measurements in the civil, industrial and photovoltaic fields. Compact, reliable and equipped with advanced functions, they are indispensable tools for electricians, maintenance workers and technicians. The kit consists of:
-
1 600A AC/DC TRMS current clamp, CAT III 600V, CAT II 1000V
-
1 Two-pole tester for voltage measurements up to 1500VDC and RCD 30mA test
Complimentary Uniks Select sunglasses.
€242.78
€242.78
Tax included
Tax included
Items Available: 17
: 16
C8 current clamp and M80 two-pole tester
The Uniks C8 current clamp and M80 two-pole tester constitute a highly reliable and versatile professional solution designed to meet measurement and diagnosis needs in civil, industrial and photovoltaic electrical systems. Both instruments are designed to ensure absolute accuracy, ease of use and safety, even under the most demanding operating conditions.
Together, these two instruments offer comprehensive coverage of the main electrical measurements required in modern contexts, enabling them to work efficiently, safely and with a high level of accuracy. Whether for photovoltaic systems, industrial plants, automation systems or civil installations, the Uniks C8 + M80 combination proves to be an indispensable choice for any qualified electrical technician.
Specifications and details of the components in the Kit:
600A AC/DC TRMS current clamp , CAT III 600V, CAT II 1000V
The C8 clamp is capable of measuring AC and DC current up to 600A and voltage up to 1000V TRMS, integrating advanced technologies such as InRush measurement, VLoZ function for detecting real voltages, and VFD filter for handling distorted signals generated by inverters or electric motors. Compact and rugged, it is the ideal tool for those working in spaces.
Technical Specifications Current Clamp C8
Electrical Measurements
| AC/DC Voltage | Up to 1000V TRMS |
| AC/DC Current | Up to 600A TRMS |
| Min. measurable current | 0.1A AC |
| Resistance | Up to 60 M |
| Capacity | Up to 60 mF |
| Frequency | AC and V up to 10kHz |
Special Functions
| Continuity | Yes |
| Diode test | Yes |
| NCV | Non-contact voltage detector |
| VLoz | Low impedance voltage measurement |
| VFD filter | Voltage and current |
| Temperature | Type K probe included |
| REL / Zero function | For DC current |
| Duty Cycle | Yes |
Display and General Features
| Display |
LCD 26000 dots |
| TRMS | Yes |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Backlight | Yes |
| Built-in flashlight | Yes |
| Data Hold | Yes |
| TRMS Bandwidth | 1 kHz |
Protections and Safety
| Input surge protection | 1000V AC/DC RMS |
| Overload protections | Up to 1000V TRMS |
| Safety Category | CAT II 1000V / CAT III 600V |
Measurement Accuracies
| DC Voltage | 1000V ± 0.5% +5d |
| AC Voltage | 1000V ± 1.0% +5d |
| DC Current | 600A ± 3.0% +5d |
| AC Current | 600A ± 2.5% +8d |
| Resistance | 60 M ± 1.0% +3d |
| Temperature | 20°C ÷ +1000°C ± 2.0% +2d |
| Capacity | 60 mF ± 4% +3d |
| Frequency | 10 kHz ± 1.0% +5d |
Supplied Accessories
| UNI200 | 2 test leads (red and black) 4mm and 2mm CAT III 1000V / 10A |
| UNI300 | Wire probe |
| UNIAD2 | Adapter for type K probe |
| UNI3340 | Canvas carrying bag |
| User's manual | Included |
| Power supply | 3 × 1.5V AAA batteries (included) |
Two-pole tester for voltage measurements up to 1500VDC and RCD 30mA testing
The M80 tester, is designed to operate up to 1500V DC, a basic requirement for next-generation PV systems. It features RCD 30mA function, measures continuity, phase cyclic sense, resistance, and allows clear and immediate readings thanks to the LCD display with built-in bargraph. Its IP64 rating and rugged construction make it ideal for harsh or outdoor environments.
Technical Specifications Multifunction Voltage Tester
Main Features
| LED voltage indicator | Active even with low batteries |
| AC Voltage | Up to 1200 V |
| DC voltage | Up to 1500 V |
| Auto Range | Yes |
| RCD Test | 30 mA differential trip |
| Cyclic phase sense | Yes |
| Continuity | With buzzer (0-10 kΩ) |
| Resistance measurement | Up to 1 MΩ |
| Display | LCD |
| Data Hold | Yes |
| Built-in flashlight | Yes |
| Auto Power OFF | Yes |
| Degree of Protection | IP64 |
| Safety | CAT IV 600V / CAT III 1000V |
Range and Accuracy
| DC Voltage | Up to 1500 V ± 2.0% +3d |
| AC Voltage | Up to 1200 V ± 2.0% +3d |
| AC/DC Voltage Range | 6 V ~ 1000 V |
| RCD test | 30 mA |
| LED voltage levels | 24 / 12 / 50 / 120 / 230 / 400 / 690 / 1500 V |
| Continuity | 0 ~ 10 kΩ (with buzzer) |
| Frequency | 40 Hz ~ 400 Hz |
| Resistance | 0 ~ 1 MΩ ± 5.0% +10d |
Accessories Included
| Carrying bag | Canvas |
| User's manual | Included |
| Batteries | 2 × 1.5V AAA |
| Adapters | 2 × 4-mm test lead adapters |
