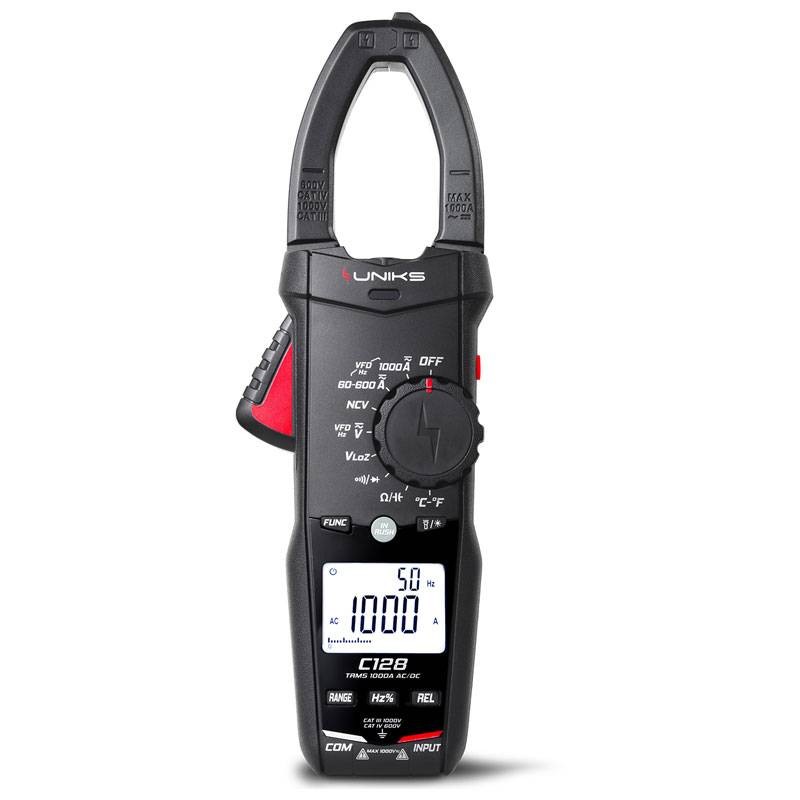

Uniks AC/DC 1000V TRMS Current Clamp C128
UNK C128
8052461742298
Uniks AC/DC 1000V TRMS current clamp designed for use in both industrial and civil applications, makes TRMS measurements of voltage up to 1000V AC/DC and current from 0.1A up to 1000A AC/DC.
Package contains:
- UNI97: 2 R and N 4mm CAT III 1000V/10A test leads
- UNI300: Wire probe
- UNIAD2: Adapter for K probe
- UNI3300: Canvas carrying bag
- User's manual
- 3x 1.5V AAA batteries
€260.78
€260.78
Tax included
Tax included
Items Available: 2
: 1
Its modern design, smooth mechanics and Display 2 with DUAL DISPLAY function make it easy to work in the field, making it the most complete pliers in the range.
It is equipped with a built-in voltage detector that lights up when placed near active conductors and a built-in flashlight that allows it to work even in very dark places.
Uniks C128 performs the following measurements:
- DC/AC TRMS voltage up to 1000V
- DC/AC TRMS current up to 1000A
- Minimum current value 0.1A
- InRush Current
- Voltage Measurement with Low Impedance VLoz
- VFD Filter in Voltage and Current
- Resistance and Continuity test with buzzer
- Capacitance and Frequency
- Duty cycle
- Diode test
- Temperature
LED Light and NCV:
- The C128 Current Clamp allows the darkest areas to be illuminated by a built-in LED Light and via NCV (non-contact voltage detector) sensor it can be used to detect the presence of dangerous voltage via a RED LED.
The Uniks C128 current clamp allows the Uniks C128 current clamp to measure the Starting Inrush Currents of motors via the InRush function.
The inrush value will be calculated over 100ms and could be as much as 8/10 times the value at steady-state current. In addition, the VloZ function will allow you to measure Voltage with low input impedance so that you can check whether the measured voltage is a GHOST VOLTAGE or a real voltage.
The GHOST VOLTAGE Voltage is nothing more than the capacitive coupling between the line in question and another line. The line in question being upstream disconnected and being placed close to the other live line the latter through coupling could induce a voltage on the line and because of the high impedance of our multimeter we would risk reading it.
The VloZ position therefore low impedance would charge the disconnected line bringing it to 0V potential as it really should be.
Functions:
- REL or Zero function for DC current
- LCD Display 2
- Points Display 6000
- TRMS
- Overload protections up to 1000V TRMS
- Fitro VFD
- Auto Power Off
- Low battery indicator
- Backlight
- Integrated flashlight
- Diode Test
- Duty Cycle
- NCV
- Data Hold
- CAT III 1000V and CAT IV 600V
Features:
- 6,000 Measurement Points
- Input surge protection 1000V AC/DC RMS
- Bandwidth for TRMS measurements of 1KHz
- AC/DC voltage up to 1000V TRMS
- AC/DC Current up to 1000A TRMS
- Minimum measurable current value 0.1A AC
- Resistance up to 60M?
- Capacitance up to 60mF
- Continuity
- Frequency and Hz%
- Diode Test
- NCV (Non-Contact Voltage Detector)
- VLoz (Low Impedance Voltage Measurement)
- VFD filter in Voltage and Current
- Temperature (Type K Probe)
There are no reviews
Data sheet
- Type: Current Clamps
