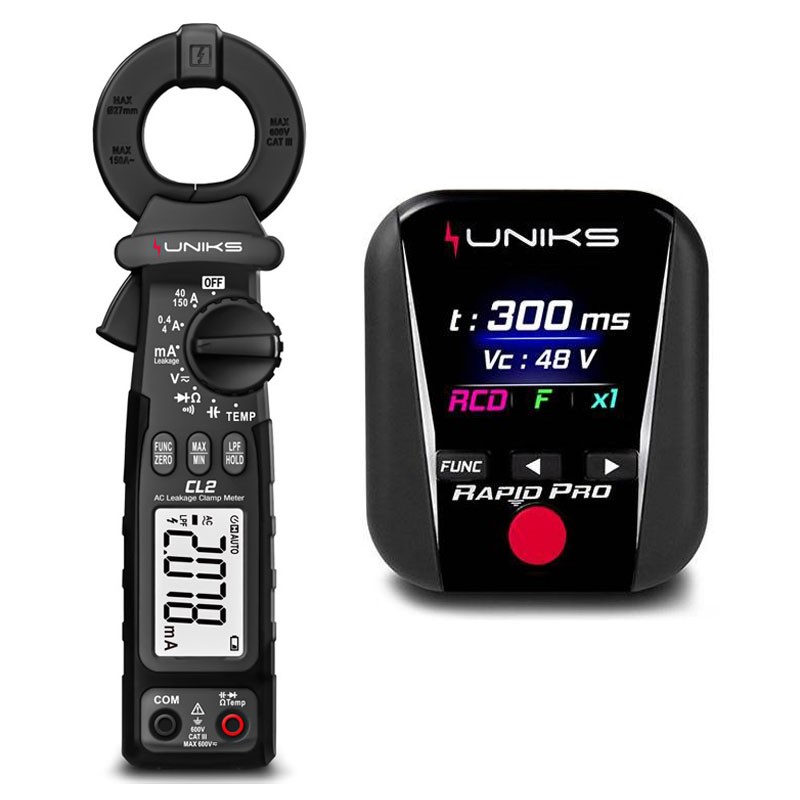

Uniks Kit CL2 Current Clamp with Multifunctional Rapido Pro
UNK RAPIDPROEDITION2
8052461742724
Uniks CL2 + Rapido Pro set: compact, advanced tools for electrical system testing and professional current, voltage and leakage measurements.
The kit consists of:
-
1 AC Dispersion Current Clamp CL2
-
1 multifunction pocket-size Rapido Pro for verification of installations.
€486.78
€486.78
Tax included
Tax included
Items Available: 8
: 4
Uniks CL2 + Rapido Pro kit: compact and advanced tools for verifying electrical installations
Electrical installations verification with Rapid Pro
The multifunction pocket-sized Rapido Pro is designed for quick and comprehensive verification of electrical installations according to IEC 64-8. Compact yet powerful, it performs tests on RCD type A, AC and F differentials, supporting various test modes (AUTO, x1, x5, x1/2 and 180°). It also integrates measurement of contact voltage (Vc) and global earth resistance in TT systems, thanks to innovative DIGITALOOP™ technology.
In addition to basic functions, it allows measurement of LN TRMS voltage, frequency, and detailed analysis of harmonics up to 49th, with graphical display and percentage values, including indication of THD% (Total Harmonic Distortion). All this is easily exportable via the RapidProReport app, which enables professional report generation.
Technical specifications of the Rapid Pro
- Power supply directly from the mains up to 265V
- Internal battery life approximately 1 min on 100% charge
- TFT color display
- Memory 64 results
- Safety IEC/EN 61010-1, double insulation
- Operating Temperature 0 to 50°C
- Measurement category CAT III 300V
- Pollution degree 2
- Reference standard IEC/EN 61557-3 and IEC/EN 61557-6
Rapid Pro the Multifunctional for Electrical Installations Testing Pocket-sized
Rapid Pro packs the functions found only in instrumentation dedicated to electrical safety verification into the size of a socket test. In addition to being used as a TRMS multimeter and a Receptacle Test, it allows for performing and certifying electrical safety tests such as Global Earth Resistance (LOOP) and RCD differential tripping time test according to IEC 64-8, IEC/EN61557-3 and IEC/EN61557-6 standards.
It is equipped with a SUPERCAP component to power it even when disconnected from the grid. By installing the RAPID PRO REPORT APP, all the REPORTS of the measurements made can be made and saved.
The new FIRMWARE Version 1.14 allows to measure also in BIFASE systems contact UNIKS for 'upgrade.
DIGITALOOP™
Digitaloop™ is the revolutionary method patented by UNIKS SRL, is transforming the way we measure loop impedance in electrical systems. With its advanced digital algorithm, we have created more compact and innovative products such as the RAPID PRO, eliminating the need for power components.
- Accuracy without compromise
- Total immunity to noise
- Superior resolution
Accessories included in the package
- Carrying bag
- User's manual
- Calibration certificate downloadable from RAPIDPROREPORT APP
Precise measurements with the CL2 current clamp
The CL2 current clamp included in the kit is ideal for high-precision AC leakage current measurements with a minimum resolution of 0.001 mA. It measures AC currents up to 150A TRMS, AC/DC voltages up to 600V TRMS, and has built-in surge protection up to 600V RMS.
It also offers advanced functions such as:
- Resistance measurement up to 40 MΩ
- Capacitance measurement up to 40 mF
- Continuity, diode and temperature testing with type K probe
- Bandwidth up to 1 kHz for TRMS measurements
The CL2 Current Clamp is suitable for Earth Dispersion current measurements but can also be used for AC current measurements up to 150A , of Resistance, Continuity , Capacitance and Temperature.
Its mA position will make it possible to detect leakage currents with extreme accuracy so that it can solve the problems of sudden trips of protective devices, locate the load that is leakage current to earth, and finally it also allows measurement by the differential method (measurement of the phase and neutral wire simultaneously).
Technical specifications of Current Clamp CL2
| Feature | Detail |
|---|---|
| Mode | Automatic and manual |
| Overload protection | Present on all measurements |
| Maximum voltage between inputs and ground | 600 V DC or AC (RMS) |
| Operating altitude | 2000 m maximum |
| Display | LCD |
| Measurement points | 4000 points |
| Out of range indicator | "OL" |
| Sampling frequency | 3 times/second |
| Power supply | 2 x AAA 1.5 V batteries |
| Low battery indication | Yes, on display |
| Operating temperature | 0°C TO 50°C |
| Storage temperature | -10°C ÷ 50°C |
| Dimensions | 213 × 62 × 38 mm (8.4 × 2.44 × 1.5 in.) |
| Weight | More than 238 g (including batteries) |
| DC voltage | 600 V ± 0.5% + 4d |
| AC voltage | 600 V ± 1.0% + 3d |
| AC current | 150 A ± 3.0% + 5d |
| AC leakage current | Up to 400 mA ± 3% + 5d |
| Resistance | 40 MΩ ± 0.8% + 3d |
| Temperature | -20°C to 1000°C ± 1.5% + 5d |
| Capacitance | 40 mF ± 3% + 8d |
| Diode test | Resolution 0.001 V |
