Uniks Multifunctional NOVAPRO kit EV CHECK charging adapter Clamp CL2 thermal imaging camera T100
UNK NOVAPROEDITION2

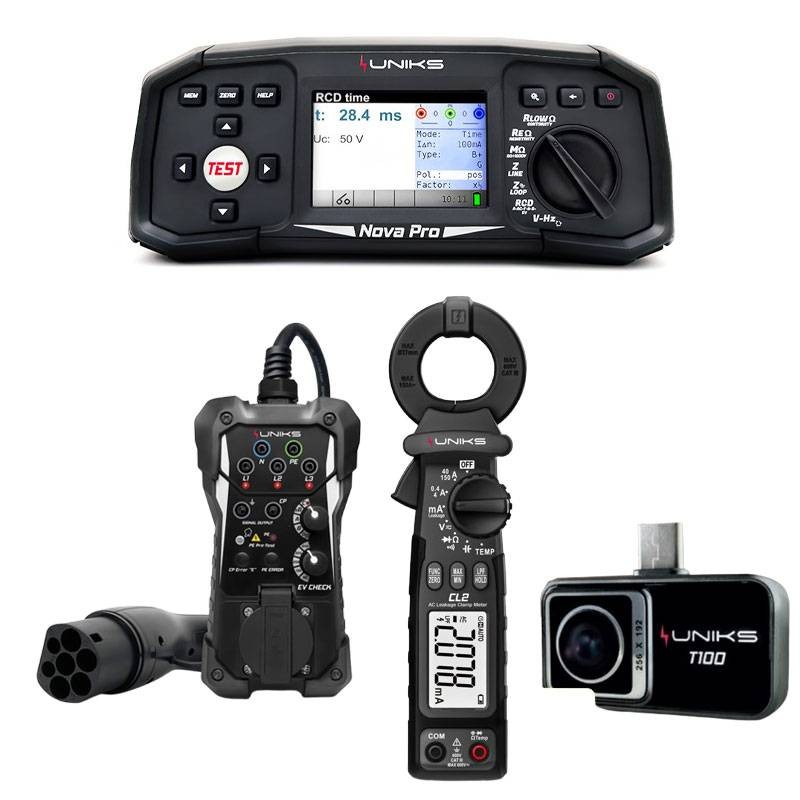

Unika Kit, NOVA PRO professional multifunction tester for testing electrical systems according to IEC 64-8 and for testing EV charging stations. With EV CHECK and CL2 clamp, it offers complete, accurate and certified measurements. The kit consists of:
-
1 Multifunction for checking electrical installations and testing electric charging stations NOVA PRO
-
1 EV CHECK electric vehicle charging station testing adapter
-
1 AC CL2 leakage current clamp for AC leakage currents for FREE
-
1 Smartphone thermo camera 256x192 pxl T100 for FREE
€2,316.78
Items Available: 2
Uniks Multifunction Kit Charging Adapter Current Clamp and Thermal Chamber
A new generation professional multifunction instrument designed to meet all requirements for verification, testing and certification of electrical installations according to IEC 64-8. Combined with the EV CHECK adapter and CL2 current clamp, the system allows for quick and safe performance of all measurements required by current standards, including verifications on RCD type B, B+ and EV at 6mA, measurement of loop impedance, global earth resistance, insulation testing and more.
Specifications and component details in the Kit:

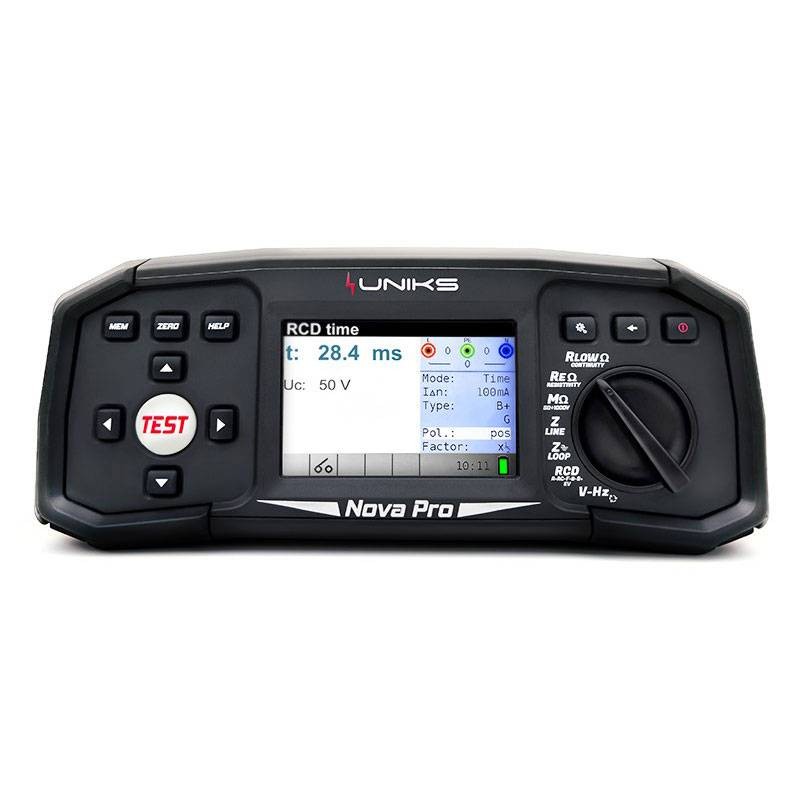

Multifunction for IEC 64-8 electrical installation testing and electric charging column testing
The NOVA series represents the evolution of professional multifunction instruments designed to meet the needs of verification, measurement and certification according to IEC 64-8 standards and for comprehensive testing of electric vehicle (EV) charging stations.
All measurements comply with EN 61557 standards, making the NOVA PRO perfect for civil (TT) and industrial (TN) installations. The instrument includes rechargeable NiMH batteries, internal memory, USB communication and software for customized reports in XLS format, facilitating technical documentation for testing and declarations of conformity.
Technical Specifications Multifunction Instrument NOVA PRO
Measurement Functions
| Isolation | Selectable voltages: 50, 100, 250, 500, 1000 VDC |
| Ground conductor continuity | 200 mA with polarity reversal, test with 7 mA |
| Earth resistance | Voltamperometric method (with stakes) |
| Ground resistivity | Wenner method (with stakes) |
| Overall earth resistance Ra | Without differential tripping |
| Line/loop impedance | Phase-Phase, Phase-Neutral, Phase-PE |
| Short-circuit current | Assumed |
| RCD test | Type A, AC, F, B, B+, EV (also 6 mA AC/DC for EV) |
| RCD test current | Up to 1 A (types A, AC, F) |
| RCD tripping time | General, selective, delayed |
| RCD ramp test | Tripping current and automatic test (½, x1, x5) |
| Fuse/switch selection | OK / NO OK function on impedance |
| Voltage drop | Included Zref (reference impedance) |
| TRMS voltage measurement | L-N, L-PE, N-PE |
| Frequency measurement | Yes |
| Cyclic phase sense | Yes |
| Remote tip compatibility | LeadNova (optional) |
Technical Features
| Display | TFT color 480×320 pixels, 3 brightness levels |
| Display help | Yes |
| Memory | Up to 1700 results |
| PC interface | USB |
| Power supply | 6× AA NiMH (9VDC) |
| Batteries | Rechargeable NiMH (included) |
Safety and Compliance
| Safety | IEC/EN 61010-1, double insulation |
| Measurement category | CAT III 600V - CAT IV 300V |
| LeadNova | CAT II 300V |
| Pollution degree | 2 |
| Reference standard | IEC/EN 61557-1-2-3-4-5-6-7 |
| Operating temperature | 0 ÷ 30°C |
Supplied Accessories
| Measuring cables | 3× (Red, Green, Blue) - 1.5 m |
| Tips | 3× (Red, Green, Blue) |
| Alligator clips | 3× (Red, Green, Blue) |
| Charger | Included |
| USB cable | Included |
| Bag | For transport and protection |
| Batteries | 6× NiMH type AA |
| Software | MFT software included |
| User's manual | Included |
| Calibration certificate | Included |

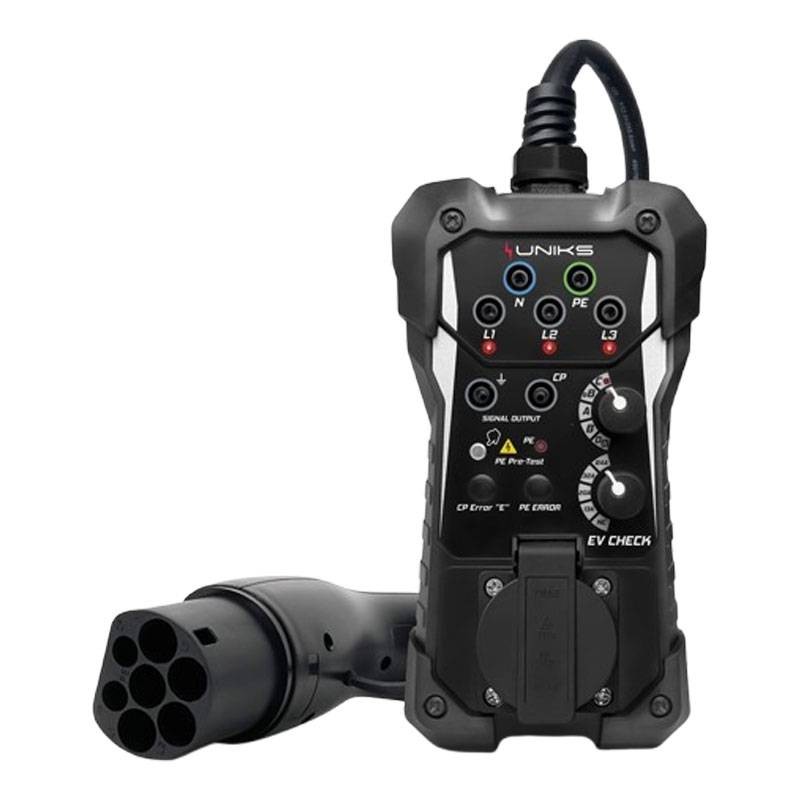

Adapter for electric vehicle charging station verification
With EV CHECK you can connect directly to the charging outlet without having to open or modify the charging station, simulating exactly the behavior of an electric vehicle. This way you can test the entire EVSE system, detect anomalies or malfunctions and ensure full compliance of the system.
Technical Features Electric Vehicle Charging Adapter
Simulation and Diagnostic Functions
| PE pre-test | Yes |
| PP Simulation | NC / 13A / 20A / 32A / 63A |
| Simulatable CP states. | A - Vehicle not connected B - Vehicle connected, not ready for charging C - Vehicle connected, ready for charging (no ventilation) D - Vehicle connected, ready for charging (ventilation required) |
| Error CP "E" | Simulable |
| Error PE | Ground fault detectable |
Outputs and Connections
| Measurement terminals | L1, L2, L3, N, PE - Max. 250/430V, CAT III 600V, 10A |
| Mains receptacle | Max 250V, CAT II 300V, max 10A Note: Do not use simultaneously with terminals |
| Mains socket protection | 10A / 250V fuse, 5×20 mm - Xunlibang magnetic tube |
| CP signal output | ±12V (CAT 0 - can go up to CAT III 600V in case of failure) |
Technical Specifications
| Input Voltage | Up to 250V (single-phase) / up to 430V (three-phase), 50/60 Hz, max 10A |
| Test cable | Type 2 - AC charging mode 3, IEC 62196-2 compliant |
| Measurement category | CAT III 600V |
| Degree of protection | IP54 |
| Insulation class | Class II |
| Working temperature range | 0°C to +40°C |
Current Clamp for AC Leakage Currents
The CL2 current clamp is a professional instrument designed to detect earth leakage currents with the highest accuracy, effectively resolving sudden trips of protective devices and identifying the load responsible for the leakage.
Thanks to the mA position, measurements can be made on even the smallest currents, with a resolution down to 0.001 mA, making it ideal for diagnostic work on civil and industrial installations.
Technical Specifications Current Clamp
Measurement Functions
| AC Leakage Current | Minimum resolution 0.001 mA - up to 400 mA ± 3% +5d |
| AC Current | Up to 150 A TRMS ± 3.0% +5d |
| AC Voltage | Up to 600 V TRMS ± 1.0% +3d |
| DC Voltage | Up to 600 V ± 0.5% +4d |
| Resistance | Up to 40 MΩ ± 0.8% +3d |
| Capacitance | Up to 40 mF ± 3% +8d |
| Temperature | -20°C to +1000°C (type K probe) ± 1.5% +5d |
| Diode test | Resolution 0.001 V |
| Continuity | Yes |
Technical Characteristics.
| TRMS bandwidth | 1 kHz |
| Sampling frequency | 3 times/second |
| Display | LCD, 4000 dots |
| Out-of-range indication | "OL" |
| Modes | Automatic and manual |
Safety and Power Supply
| Overload protection | On all measurements |
| Maximum voltage between inputs and ground | 600 V AC/DC RMS |
| Measurement category | CAT III 600V |
| Operating altitude | Up to 2000 m |
| Operating temperature | 0°C TO 50°C |
| Storage temperature | -10°C TO 50°C |
| Low battery indicator | Yes, on display |
| Power supply | 2 × AAA 1.5 V batteries |
Dimensions and Weight
| Dimensions | 213×62×38 mm |
| Weight | About 238 g (with batteries) |

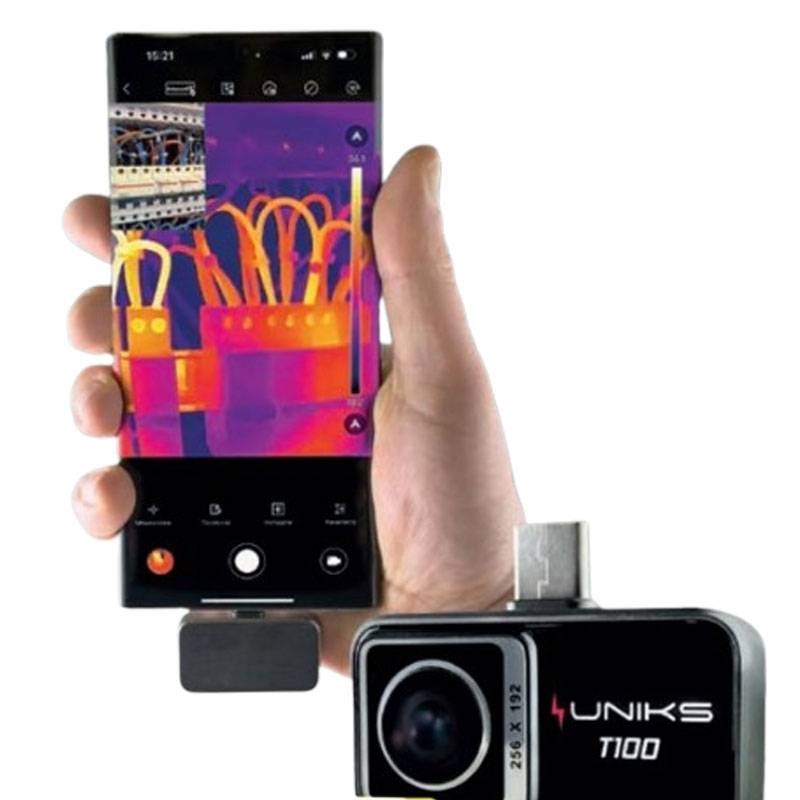

Smartphone thermo camera 256×192 pxl
Compact thermo camera for smartphone with 256×192 pxl thermal resolution, ideal for electrical diagnosis, construction, HVAC and industrial maintenance. Compatible with Android and iOS.
Technical Specifications Thermo camera Smartphone
Performance and Resolution
| Infrared resolution | 256 × 192 pixels |
Compatibility and Connection
| Compatibility | Android and iOS smartphones |
| Connection | USB-C direct or via adapter (for iOS) |
| Dedicated app | Available on Google Play and App Store |
Features
| Viewing | Real-time on smartphone screen |
| Saving | Thermal images directly in the gallery |
Design and Usage
| Format | Compact and lightweight |
| Use | Plug & Play, intuitive and portable |
