Uniks kit Current Clamp C128PRO voltage meter detector R18 multimeter M12 C128PROEDITION2
UNK C128PROEDITION2
8052461742731

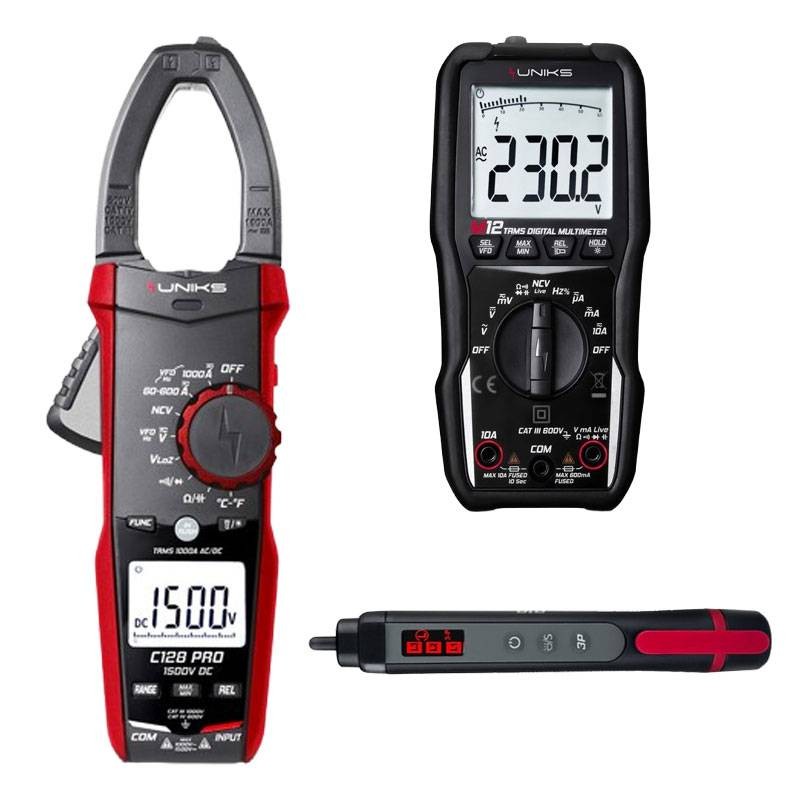

Uniks complete kit, includes three essential tools for professional electrical measurements: the Uniks C128PRO TRMS clamp, R18 voltage detector and M12 multimeter. These devices, compact and equipped with advanced features such as TRMS measurements, NCV, VLoZ, dual display and integrated flashlight, are an ideal solution for electricians, photovoltaic technicians, industrial and civil plant installers who require precision, versatility and safety in every field operation. The kit consists of:
-
1 TRMS current clamp, 1500V DC and 1000A AC/DC C128PRO
-
1 Voltage detector (phase finder) and non-contact cyclic phase sense with R18 flashlight
-
1 Compact multimeter in autorange and TRMS, current 10A, CAT III 600V M12
Complimentary Uniks Select sunglasses.
€364.78
Items Available: 19
: 3
Professional current clamp detector and multimeter kit
Professional tool kit, represents a complete and advanced solution for all electrical, industrial and photovoltaic professionals who need precision, reliability and practicality in daily operations.
Each instrument is manufactured to high safety standards, with CAT III and CAT IV certifications, and provides specific functionality for quick and safe diagnostics on low and high voltage systems. The ergonomic design, robust construction, and integrated technologies enable even the most complex scenarios to be tackled with maximum efficiency.
Specifications and component details in the Kit:

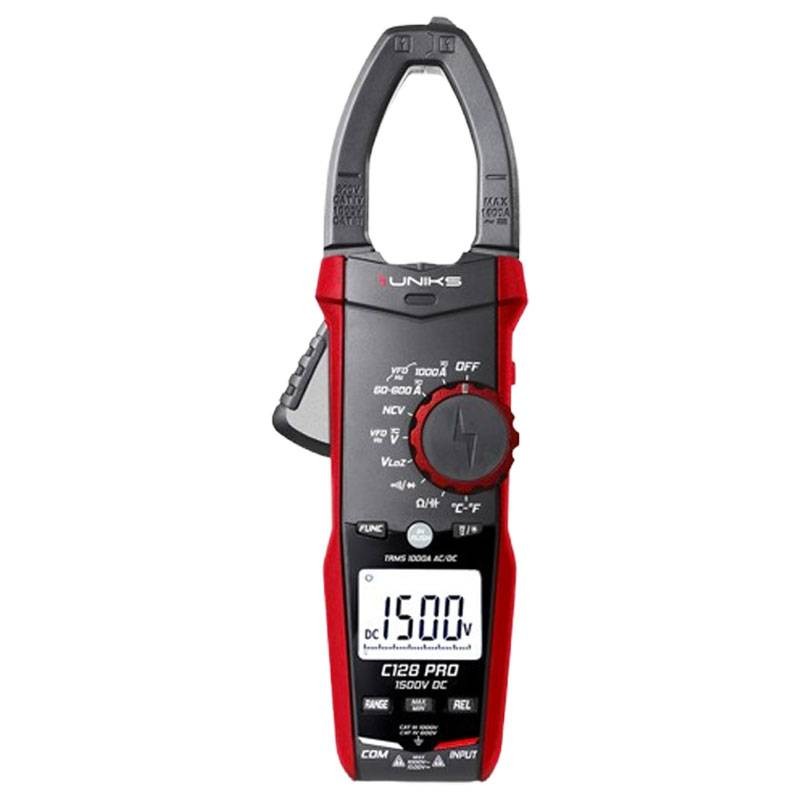

TRMS current clamp, 1500V DC and 1000A AC/DC C128PRO
The Uniks C128PRO current clamp is an advanced and highly professional instrument designed to meet the needs of technicians working in the industrial, civil and photovoltaic fields. With its TRMS technology and ability to measure voltages up to 1500V DC and currents up to 1000A AC/DC, the C128PRO represents one of the most comprehensive and high-performance clamps in the Uniks range. Accurate, robust and reliable, it is ideal for maintenance, testing and diagnostics on complex systems, inverters, electrical panels and photovoltaic strings.
Technical Specifications Current Clamp C128PRO
Electrical Measurements
| AC Voltage | Up to 1000V TRMS |
| DC Voltage | Up to 1500V TRMS |
| AC/DC Current | Up to 1000A TRMS |
| Minimum measurable current | 0.1A AC |
| Resistance | Up to 60 MΩ |
| Capacitance | Up to 60 mF |
| Frequency | A and V up to 10 kHz |
Advanced Functions
| Continuity | Yes |
| Diode test | Yes |
| NCV | Non-contact voltage detector |
| VLoz | Low impedance measurement |
| VFD filter | On voltage and current |
| Temperature | With type K probe |
| REL / Zero function | For DC current |
| Duty Cycle | Yes |
Display and User Interface
| Display | 2 inch LCD - 6000 dots |
| TRMS | Yes |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Backlight | Yes |
| Built-in flashlight | Yes |
| Data Hold | Yes |
| TRMS Bandwidth | 1 kHz |
Accuracy of Measurements
| DC Voltage | 1500V ± 0.5% +5d |
| AC voltage | 1000V ± 1.0% +5d |
| DC Current | 1000A ± 3.0% +5d |
| AC Current | 1000A ± 2.5% +8d |
| Resistance | 60 MΩ ± 1.0% +3d |
| Temperature | -20°C to +100°C ± 2.0% +2d |
| Capacity | 60 mF ± 4% +3d |
| Frequency | 10 kHz ± 1.0% +5d |
Safety and Protections
| Overload protections | Up to 1500V TRMS |
| Safety categories | CAT III 1000V / CAT IV 600V |
Accessories Included
| UNI200 | 2 red and black test leads 4mm/2mm - CAT III 1000V / 10A |
| UNI300 | Wire probe |
| UNIAD2 | Adapter for type K probe |
| UNI3300 | Canvas carrying bag |
| User's manual | Included |
| Power supply | 3 × 1.5V AAA batteries (included) |

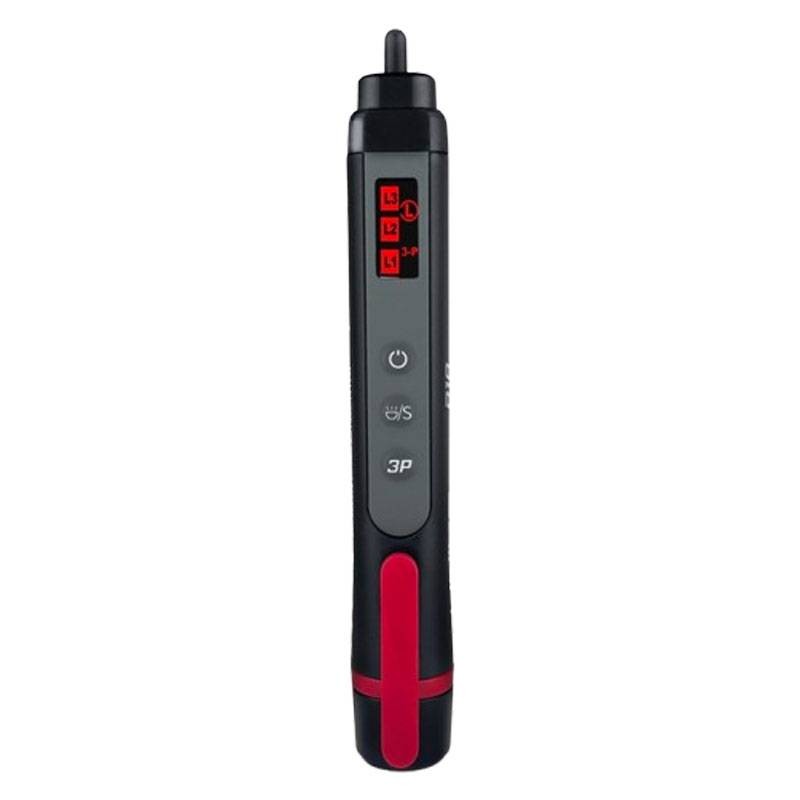

R18 non-contact voltage and phase cyclic sense detector with flashlight
The Uniks R18 Voltage and Phase Sequence Detector is a compact, reliable, and highly versatile instrument designed to facilitate verification tasks in the electrical field. Designed for electricians, industrial technicians and plant maintenance engineers, the R18 enables fast and efficient verification of cyclic phase direction and non-contact AC voltage detection, even through insulating conduits. A pocket-sized but highly advanced device that is indispensable for safe and accurate operation.
Technical Specifications Voltage Detector R18
Main Functions.
| AC Voltage Detection | 12V - 1000V across insulating sheaths |
| Dual level of sensitivity | 12V - 1000V / 48V - 1000V |
| Cyclic phase sense | Yes, non-contact |
| Indications | LED + sound indication |
| Integrated LED light | Yes |
| Operating frequency | 50 / 60 Hz |
Physical and Safety Features
| Degree of protection | IP67 - Resistant to water and dust |
| Shock resistance | Up to 2 m drop |
| Pocket clip | Included |
| Measurement category | CAT IV 1000V |
Supplied Accessories
| User's manual | Included |
| Batteries | 2 × 1.5V AAA (included) |

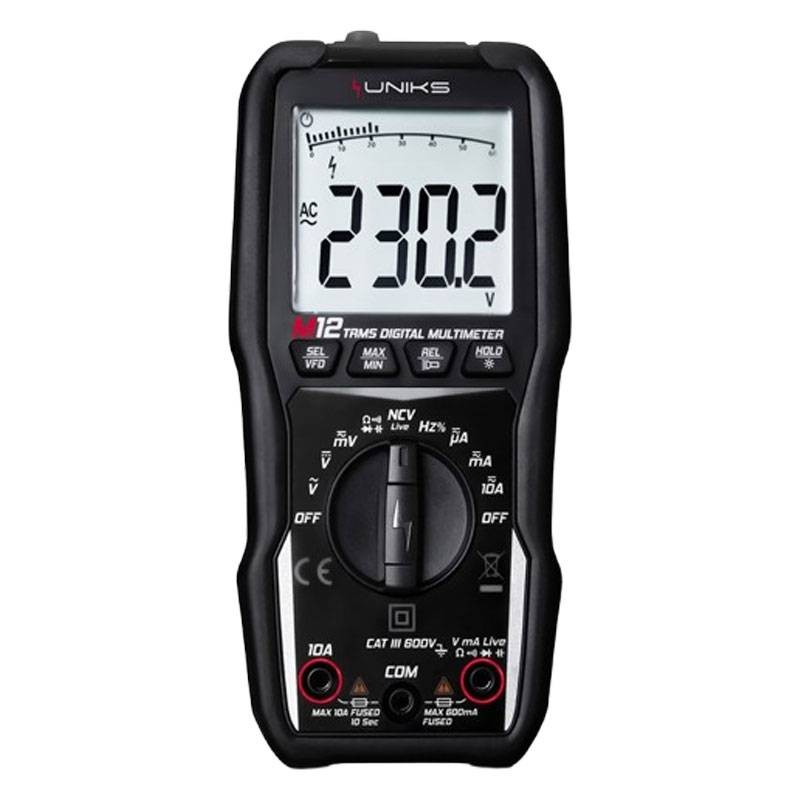

Compact multimeter in autorange and TRMS, 10A current, CAT III 600V M12
The M12 multimeter is a compact, professional digital instrument designed to offer advanced measurement performance in a portable, rugged, and easy-to-use format. Designed for electricians, installers, maintenance workers, and technicians in the electronics and electrical engineering industries, it ensures reliability and accuracy in even the most demanding applications.
Technical Specifications Digital Multimeter M12
Main Functions
| TRMS | Yes |
| Autorange | Yes |
| Modes | MAX / MIN / REL / HOLD |
| Display | LCD with 6000 measuring points |
| VFD filter | Yes |
| Built-in flashlight | Yes |
| Auto Power Off | Yes |
| Backlight | Yes |
| Low Battery Indicator | Yes |
| Measurement category | CAT III 600V |
Measurement Performance
| AC Voltage | 60 mV - 600 V ± 0.8% + 3d |
| DC voltage | 60 mV - 600 V ± 0.5% + 3d |
| AC Current | up to 10 A ± 1.0% + 3d |
| DC current | up to 10 A ± 1.0% + 3d |
| μA / mA | 600 μA - 600 mA |
| Resistance | up to 60 MΩ ± 1.5% + 5d |
| Capacitance | up to 100 mF ± 3% + 5d |
| Frequency | 10 Hz - 10 MHz ± 1.0% + 5d |
| Duty Cycle | 1% - 99% ± 3% + 5d |
Additional Functions
| Continuity | Yes |
| Diode Test | Yes |
| NCV | Non-contact voltage detection |
Technical Specifications
| Input Protection | Up to 600V AC/DC RMS |
| TRMS bandwidth | 1 kHz |
| Sampling frequency | 3 s |
Supplied Accessories
| UNI99 | 2 red and black test leads 4mm - CAT III 1000V |
| UNI616 | Canvas carrying bag |
| User's manual | Included |
| Power supply | 2 × 1.5V AAA batteries (included) |
