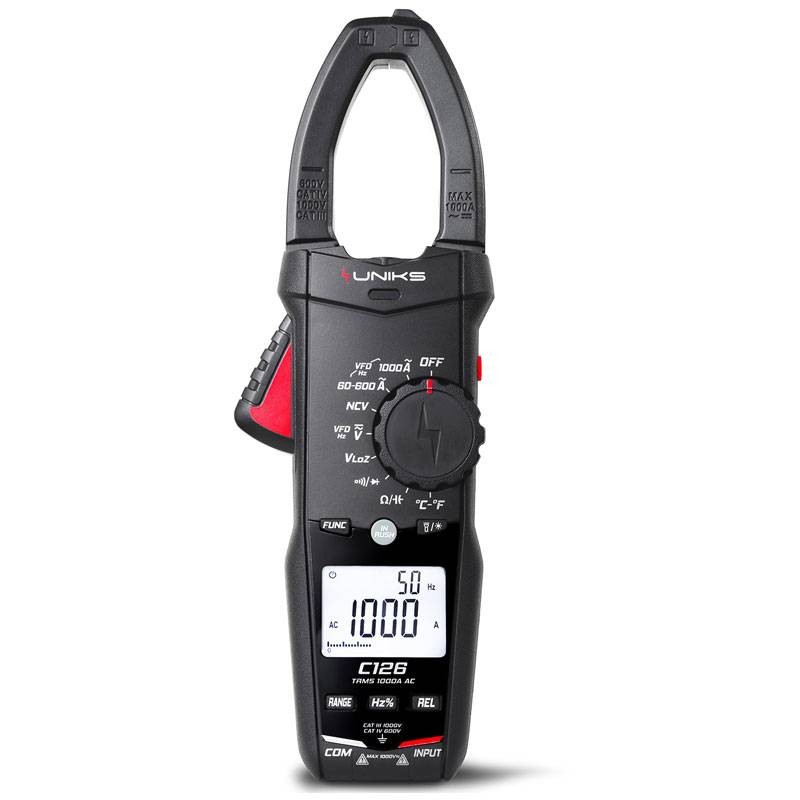

Uniks AC 1000V TRMS Current Clamp C126

Uniks
Uniks
UNK C126 8052461742281

Uniks TRMS current clamp is designed for use in both industrial and civil applications, it makes TRMS measurements of Voltage up to 1000V AC and Current from 0.1A up to 1000A AC.



It is equipped with a built-in voltage detector that lights up when placed near active conductors and a built-in flashlight that allows it to work even in very dark places.



Equipment in the standard package:

  • UNI97: 2 R and N 4mm CAT III 1000V/10A test leads
  • UNI300: Wire probe
  • UNIAD2: Adapter for K probe
  • UNI3300: Canvas carrying bag
  • User's manual
  • 3x 1.5V AAA batteries
Do you have questions about this product or did you not find what you were looking for? Ask us!
Uniks AC 1000V TRMS Current Clamp C126
€192.15
€192.15

€192.15
Tax included
Items Available: 3
Further availability of the manufacturer
€192.15

Buy it within and receive it from Thursday, 21 August
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The modern design, smooth mechanics and Display 2 with DUAL DISPLAY function facilitate work in the field making it the most complete caliper in the range.



Uniks C126 performs the following measurements:

  • DC/AC TRMS voltage up to 1000V
  • AC TRMS current up to 1000A
  • Minimum current value 0.1A
  • InRush Current
  • Voltage Measurement with Low Impedance VLoz
  • VFD Filter in Voltage and Current
  • Resistance and Continuity test with buzzer
  • Capacitance and Frequency
  • Duty cycle
  • Diode test
  • Temperature



Led Light and NCV:

  • The C126 Current Clamp allows the darkest areas to be illuminated by a built-in Led Light, and via NCV (non-contact voltage detector) sensor it can be used to detect the presence of dangerous voltage via a RED LED.



Functions:

  • REL function
  • LCD Display 2
  • Points Display 6000
  • TRMS
  • Overload protections up to 1000V TRMS
  • Fitro VFD
  • Auto Power Off
  • Low battery indicator
  • Backlight
  • Integrated flashlight
  • Diode Test
  • Duty Cycle
  • NCV
  • Data Hold
  • CAT III 1000V and CAT IV 600V



Features:

  • 6,000 Measurement Points
  • Input surge protection 1000V AC/DC RMS
  • Bandwidth for TRMS measurements of 1KHz
  • AC/DC voltage up to 1000V
  • AC Current up to 1000A
  • Minimum measurable current value 0.1A AC
  • Resistance up to 60M?
  • Capacitance up to 60mF
  • Continuity
  • Frequency and Hz%
  • Diode Test
  • NCV (Non-Contact Voltage Detector)
  • VLoz (Low Impedance Voltage Measurement)
  • VFD filter in Voltage and Current
  • Temperature (Type K Probe)

There are no reviews

Data sheet

Type:
Current Clamps
