Etelec Measuring Instrument Kit Multimeter Caliper and FREE Phase Tester KS03
ETL KS03
8053323906506

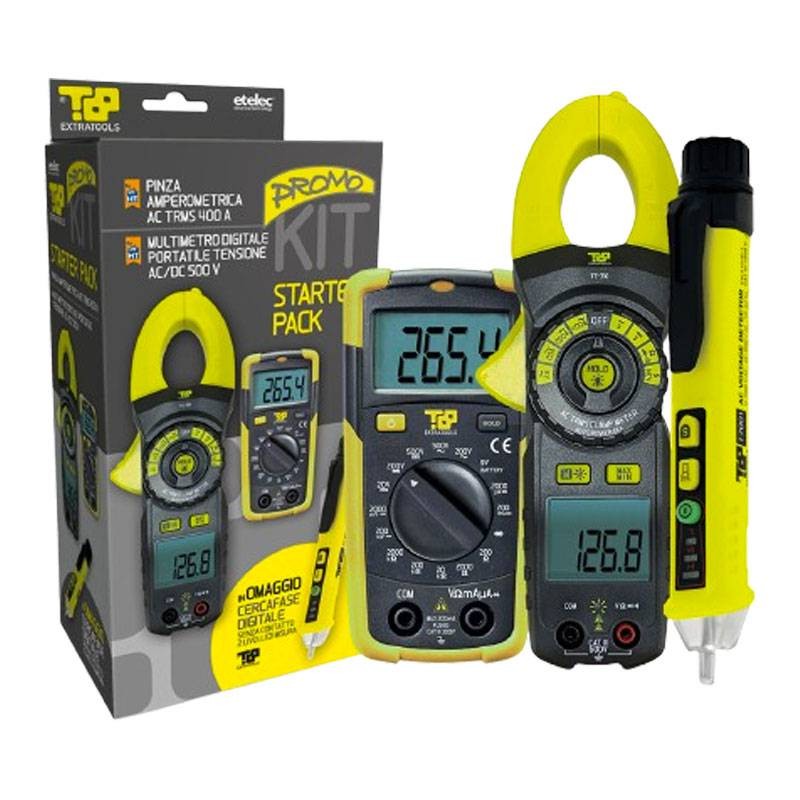

Etelec's measuring tool kit, perfect for electricians, technicians and industry enthusiasts, offers a complete solution for measuring current and voltage, combining practicality, accuracy and convenience. The kit consists of:
-
Etelec digital current clamp (cod. TE0310)
-
Portable digital multimeter (cod. TE0140)
-
Free digital phase tester (cod. T7001)
€93.94
Items Available: 30
: 2
Etelec measuring instrument kit for fast and safe electrical diagnostics
A practical, compact and professional kit designed for those performing electrical inspections in civil or industrial settings. With the TRMS current clamp, portable digital multimeter and complimentary non-contact phase finder, you have everything you need for reliable measurements wherever you are.
Etelec Kit Components

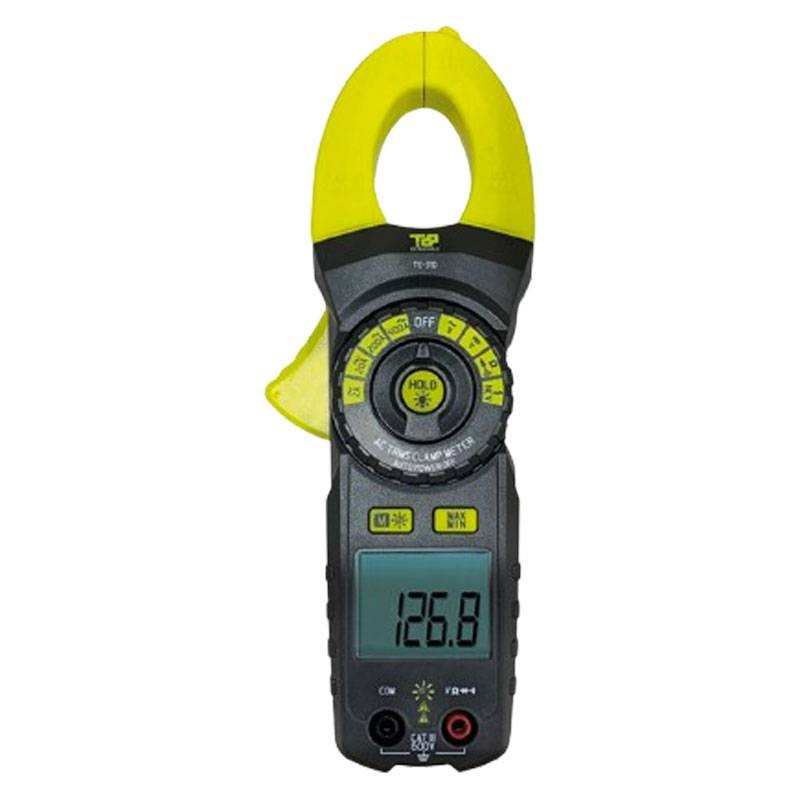

TRMS Digital Current Clamp
Ideal for those working on civil or industrial electrical systems, this pocket-sized TRMS digital current clamp combines convenience, accuracy and safety. With a 2000-point backlit display, True RMS function and non-contact AC voltage detection, it is the perfect tool for quick and reliable diagnosis, even in dimly lit environments.
Technical Specifications Etelec Clamp
Main Features
| Parameter | Value |
|---|---|
| AC Current | up to 400 A (True RMS) |
| AC/DC Voltage | up to 600 V |
| Backlit LCD display | 2000 dots, 3½ digits |
| Functions | Resistance, continuity with buzzer, diode test |
| AC voltage detection | Non-contact |
| Additional modes | Max/Min, Data Hold function |
| Safety | Double insulation |
Technical Specifications
| Parameter | Value |
|---|---|
| Autorange | No |
| Indications | Automatic polarity and out of scale |
| Maximum operating altitude | 2000 m |
| Operating temperature | 5 40 °C |
| Operating humidity | up to 80% |
| Power supply | 3 AAA 1.5 V batteries (IEC LR03) |
Dimensional Information
| Parameter | Value |
|---|---|
| Length | 208 mm |
| Width | 77 mm |
| Depth | 35 mm |

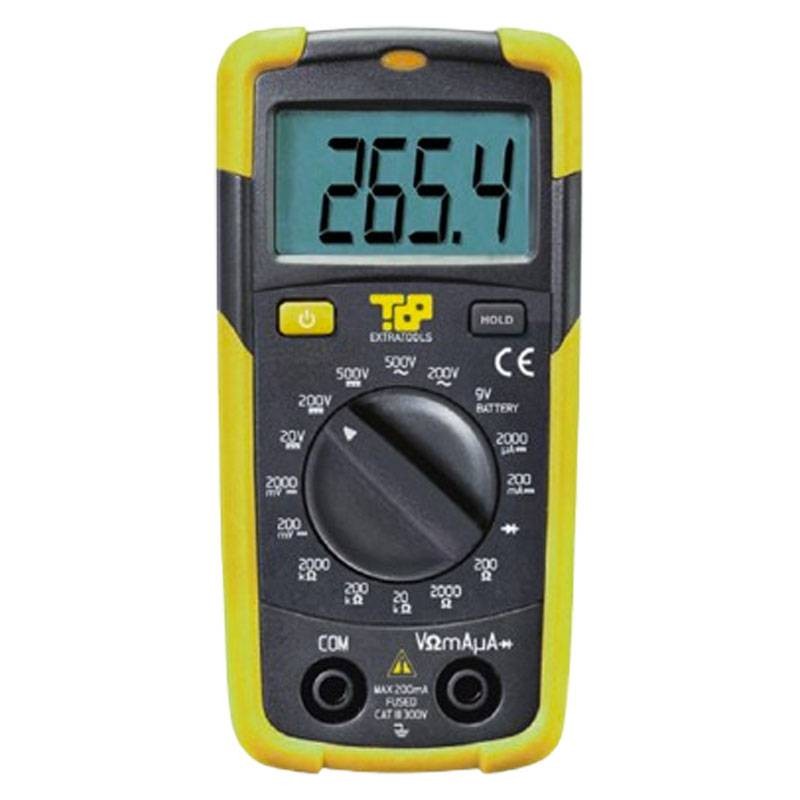

Portable digital multimeter for quick measurements up to 500V
Designed for those who need an essential yet reliable tool, this pocket-size digital multimeter allows for quick and easy measurements of AC/DC voltage up to 500V, DC current, resistance, diodes, and battery testing. With its compact size and 2,000-point display, it is ideal for work in confined spaces and for everyday use on civil and hobbyist electrical systems.
Technical Specifications Etelec Multimeter
Main Features
| Parameter | Value |
|---|---|
| AC/DC voltage | up to 500 V |
| Current | DC |
| Test | Diodes, resistance and 9V batteries |
| Display | LCD 2000 dots, 3½ digits with sign and decimal |
| Function | Data Hold |
| AC voltage detection | Non-contact |
| Safety | Double insulation for maximum safety |
Technical Specifications
| Parameter | Value |
|---|---|
| Conversion | Average value (not TRMS) |
| Autorange | No |
| Indications | Automatic polarity and out-of-scale |
| Max. operating altitude | 2000 m |
| Operating temperature | 0 50 °C |
| Max operating humidity | 70% |
| Power supply | 1 battery MS21 / MN21 (12V) |
Dimensional Information
| Parameter | Value |
|---|---|
| Length | 105 mm |
| Width | 50 mm |
| Depth | 25 mm |

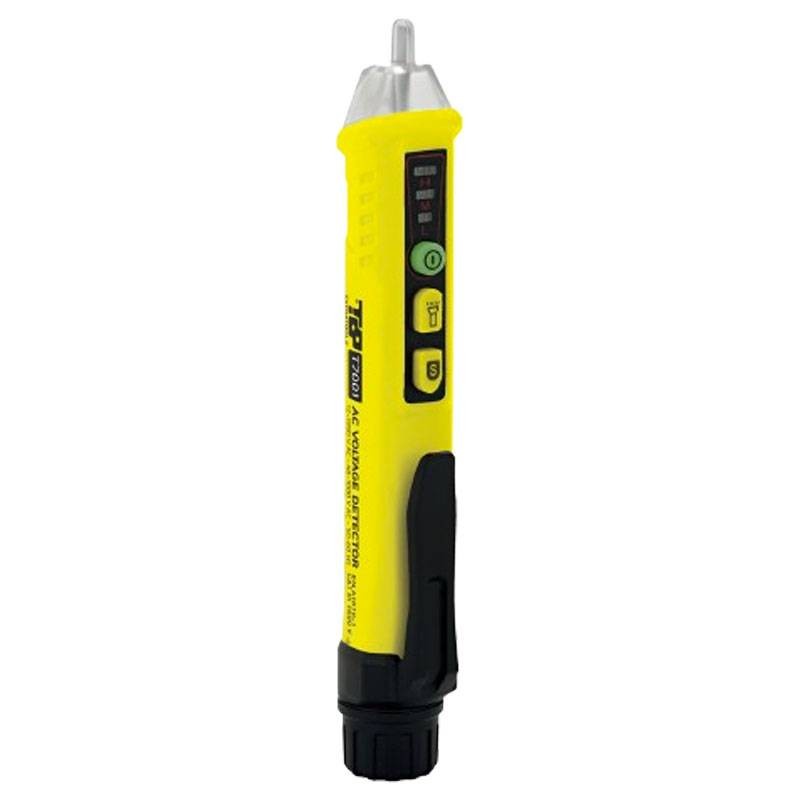

Digital phase finder with non-contact detection
Compact, intuitive and reliable, the NCV digital phase finder is the perfect tool for detecting the presence of AC voltage without direct contact. Ideal for electricians and technicians, it detects AC voltage on two sensitivity levels, with light and sound signaling, and offers a useful built-in LED flashlight for working even in low visibility conditions.
Etelec Phase Tester Technical Specifications
Main Features
| Parameter | Value |
|---|---|
| Detection | Non-contact (NCV) |
| Sensitivity levels | 121000 V and 481000 V AC (5060 Hz) |
| Signaling | Acoustic (3 levels) and bright (LED) |
| Flashlight | Integrated white LED |
| Safety | Double insulation and automatic shutdown |
| Battery indication | Discharge |
Technical Specifications
| Parameter | Value |
|---|---|
| NCV Intensity | Low, medium, high |
| Maximum operating altitude | 2000 m |
| Operating temperature | 0 40 °C |
| Storage temperature | -10 50 °C |
| Power supply | 2 AAA 1.5 V batteries |
| Signaling | Sound and light |
Dimensional Information
| Parameter | Value |
|---|---|
| Length | 156 mm |
| Width | 20 mm |
| Depth | 20 mm |
There are no reviews
Data sheet
- Type: Current Clamps
Multimeters
Phase testers
