Cellpack terminal for unipolar cables 25-150mmq 194040

Cellpack
Cellpack
CEL 194040 4010311046839

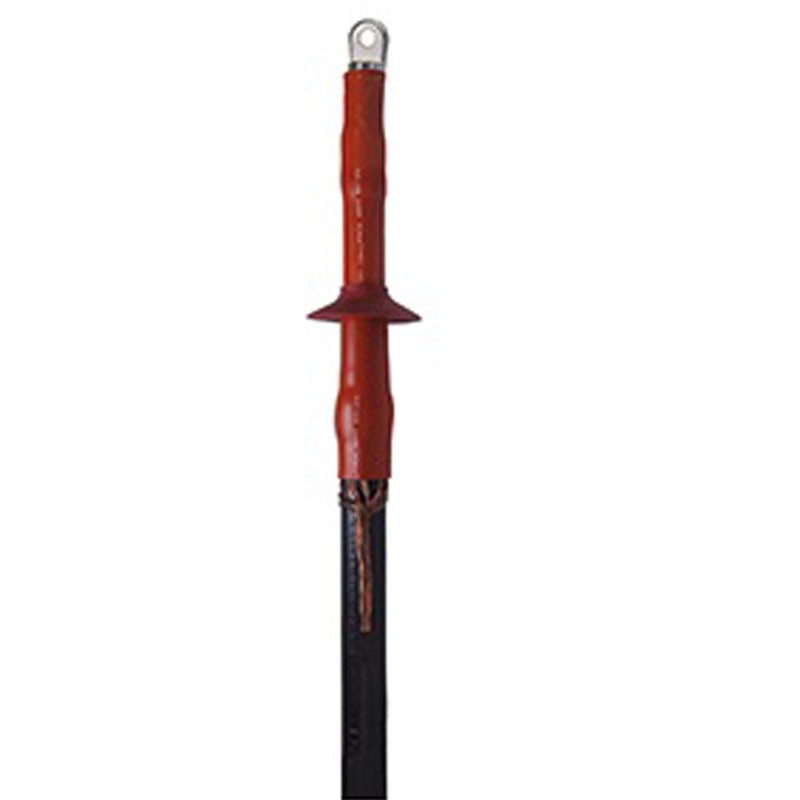

Cellpack CHE-I 24kV 25-150 single-core indoor polymer cable hot terminal with the following features:



  • Dimensions: Length 300mm - shield diameter S 85.0 mm
  • 24kV rated cross-section: 25.0 mm² - 150.0 mm²
  • Number of conductors in electrical cable: 1
  • Total insulation center diameter after removal of outer conductive layer: ≥ 17.3mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Cellpack terminal for unipolar cables 25-150mmq 194040
€54.46
€54.46

€54.46
Tax included
Calculate shipping cost
Items Available: 203
Further availability of the manufacturer
€54.46

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Properties:

  • Flexible silicone elements ensure reliable stress resistance under all operating conditions
  • Combination of slip-on and heat-shrink components
  • Large cross section
  • Simple, quick and safe assembly
  • Ready for immediate applications




Applications:

  • Interior





Package Contents:

  • 1 set for 3 phases
  • Heat shrink tubing (resistant to surface discharge)
  • Anti-stress silicone elements
  • Silicone sheathing
  • Sealing tape
  • Mounting material
  • Mounting instructions

There are no reviews

Data sheet

Type:
Terminals
