CELLPACK terminal for single-pole cables 3P ACE-I 70-240 24KV 199163
CEL 199163

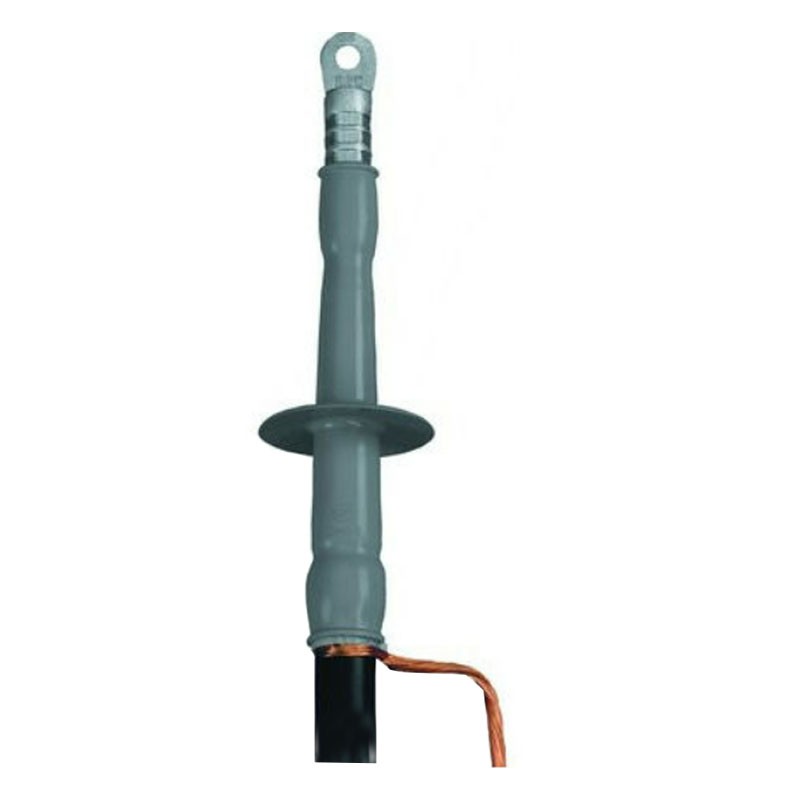

CELLPACK indoor single-core cable terminal , Type CAE-I 24kV 70-240, with the following features:
- Large cross section
- Silicone components for quick, easy and safe assembly
- Ready for immediate applications
- Application: for indoor use
- For 7.2 kV cables, 12 kV terminations must be used. (Check minimum insulation diameter)

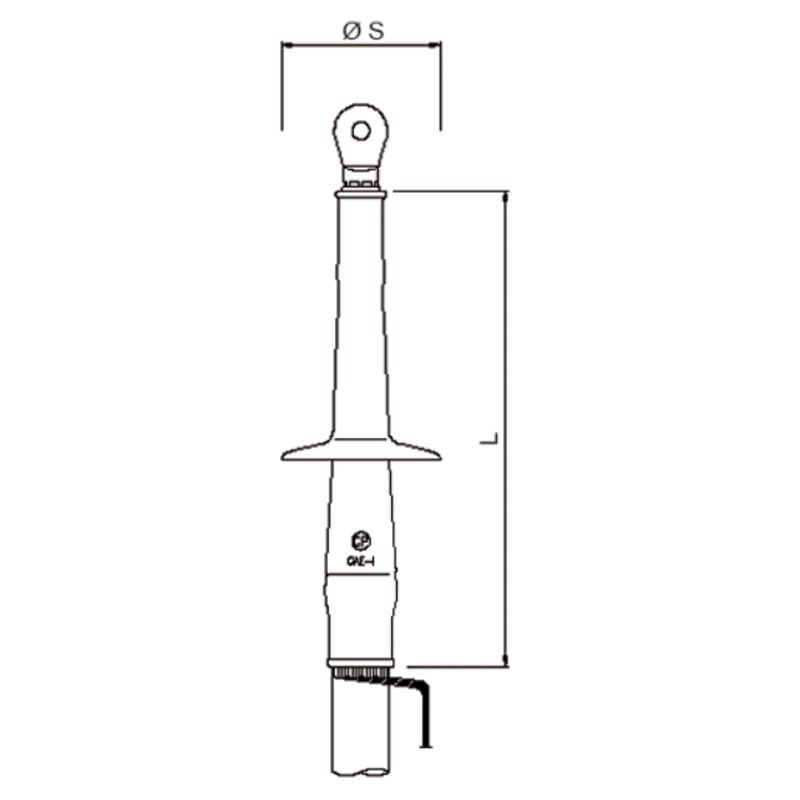

- Dimensions: Length 270.0 mm - Shield diameter S 90.0 mm
- Number of conductors in electrical cable: 1
- Total insulation center diameter after removal of outer conductive layer: ≥ 19.9 mm
- Rated cross-section 24kV: 70.0 mm² - 240.0 mm²
€119.95
Items Available: 71
: 3
Package contents:
- 3 One-piece slip-on terminations with built-in stress detector system
- Sealing tape
- Mounting material
- Mounting instructions
There are no reviews
Data sheet
- Type: Terminals
