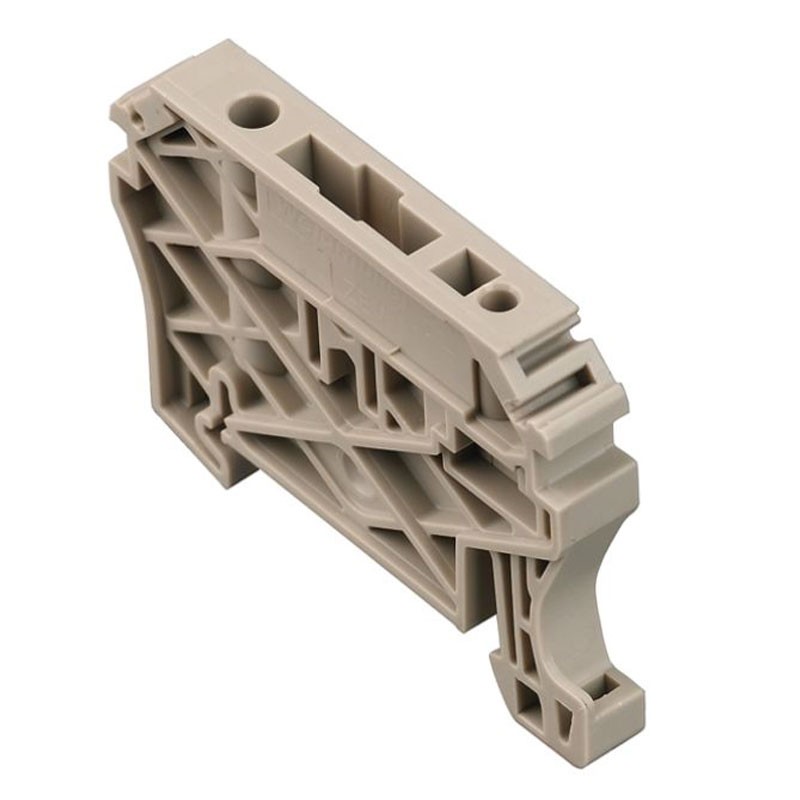

Weidmuller Z Series ZEW 35/2 mounting terminal for DIN rail TS 35 8630740000
WEI 8630740000
4032248348916
Weidmüller ZEW 35/2 fastening terminal, Z series, for TS 35 DIN rail, compact and screwless, with the following features:
-
Compatible rail: TS 35
-
Mounting type: Pluggable, direct on rail
-
Clamping: Screwless
-
Width: 8 mm
-
Depth: 40 mm
-
Height: 55 mm
-
Rail offset TS 35: 41 mm
€0.76
Items Available: 43
: 37
ZEW 35/2 terminal: reliable clamping for terminals on DIN rails
The Weidmüller ZEW 35/2 Z-series clamping terminal is designed to provide safe and effective clamping of terminals on TS 35 DIN rail profiles, without the need for screws. The compact and efficient design enables quick and neat mounting in electrical panels and automation systems, ensuring mechanical stability and durability.
Compact and efficient design
With a width of only 8 mm, the ZEW 35/2 terminal makes it possible to optimize space inside electrical panels. It is made of Wemid, a reinforced technical plastic material with high thermal, chemical and mechanical resistance, perfect for industrial environments.
Quick installation: direct screwless coupling
Thanks to the screwless locking system, mounting is done by simple direct engagement on the TS 35 rail, speeding up installation and ensuring stable and secure fastening.
Recommended applications
-
Installation of modular terminal blocks on TS 35 DIN rail
-
Industrial switchboards and LV distribution
-
Automation and control systems
-
Civil and tertiary wiring with order and safety requirements
Weidmüller Terminal Specifications
| Parameter | Value |
|---|---|
| Version | Clamp terminal |
| Material | Wemid |
| Color | Dark beige |
| Compatible guide | TS 35 |
| Mounting type | Plug-in, direct to rail |
| Locking | Screwless |
| Dimensions | Width 8 mm - Depth 40 mm - Height 55 mm |
| Rail offset TS 35 | 41 mm |
| Ambient temperature | -5/+40 degrees |
| Continuous operating temperature | -50/+100 degrees |
| Flammability rating | UL 94 V-2 |
| Compliance | RoHS - REACH (no SVHC above 0.1%) |
| Footprint CO₂ | 0.158 kg CO₂ eq. (from cradle to gate) |
There are no reviews
Data sheet
- Type: Terminals
