Features:

• Backlit 128 x 64 pixel LCD graphic display with contrast and brightness adjustment
• 3 system status LEDs
• 18 backlit keys
• Buzzer with adjustable sound level
• 1 programmable input
• Bus power supply
• Rated supply voltage (taken from the control unit via communication bus) 13.8 VDC
• Operating voltage min/max 9 Vdc ÷ 15 Vdc
• Rated current consumption at 13.8 Vdc: At rest, only 17 mA mains presence LEDs
• In operation, with backlighting at minimum 22 mA
• In operation, with backlighting at maximum value and all LEDs lit 93 mA
• Programmable input 1
• IP40 / IK06 enclosure protection rating
• Dimensions (W x H x D), in 141 x 117 x 29 mm.

Specifications:

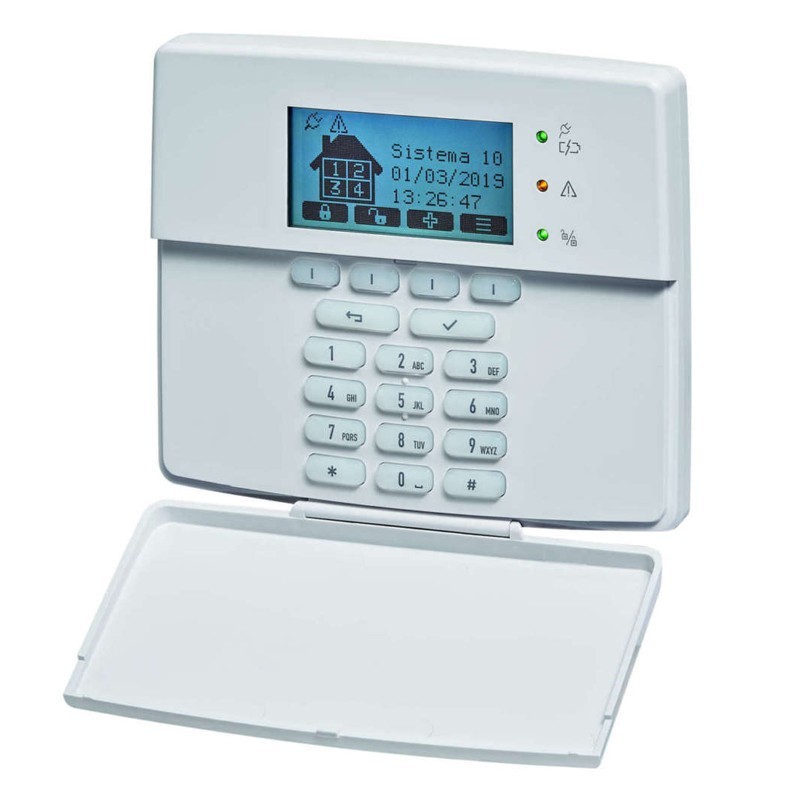

The 1068/021 display keypad, for indoor use, used to control and program the 1068 series system is equipped with:

• backlit LCD graphic display with contrast and brightness adjustment
• 3 system status LEDs (power supply, warnings, zone status)
• 18 alphanumeric keys, protected by a flap
• buzzer with adjustable sound level
• 1 programmable input.

The product is supplied with a tamper jumper that allows the exclusion of the keypad open/export control button. The use of this product invalidates the EN50131 certification. The keyboard is powered by the bus with which it is connected to the central unit.
