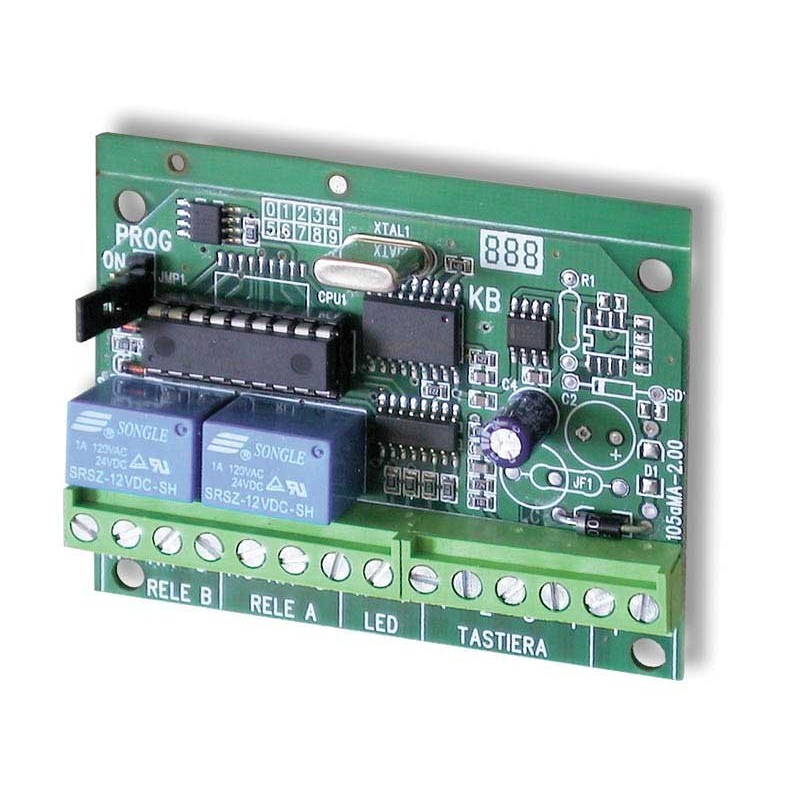

Hiltron 12V electronic board for KB electronic keyboard
C1A KB
8056450410274
Hiltron control board, for electronic keyboard.
Can be used in combination with KBC, KBM, KBT or KBSS for alarm system activation/deactivation, access control, etc.
€34.84
Items Available: 55
: 30
Frequently bought together
Features:
- Cia Hiltron series
- Programmable operator codes: 2 from 1 to 6 digits
- Operation: monostable, bistable and combined
- Connection with keyboards via 4 wires
- DTMF transmission system
- Output channels 2
- Absorption 50mA
- Rated supply voltage 12V
- Relay output C/NC/NA
- Safety grade 1
- Environmental class 2
- Dimensions: (W 90mm) x (H 70mm)
- Weight 0.075 kg
- Dimensions: 7.4 × 10 × 3.5 cm
Ottimo prodotto. Facile da inserire nella centrale e collegarla.
Ottimo!!!
Servizio rapido e veloce !!
Prodotto come descritto . ..............
Data sheet
- Type: Keyboards
