Bpt Came PXWDTCM brown radio curtain detector 846EA-0100
CMC 846EA-0100
8050456063564

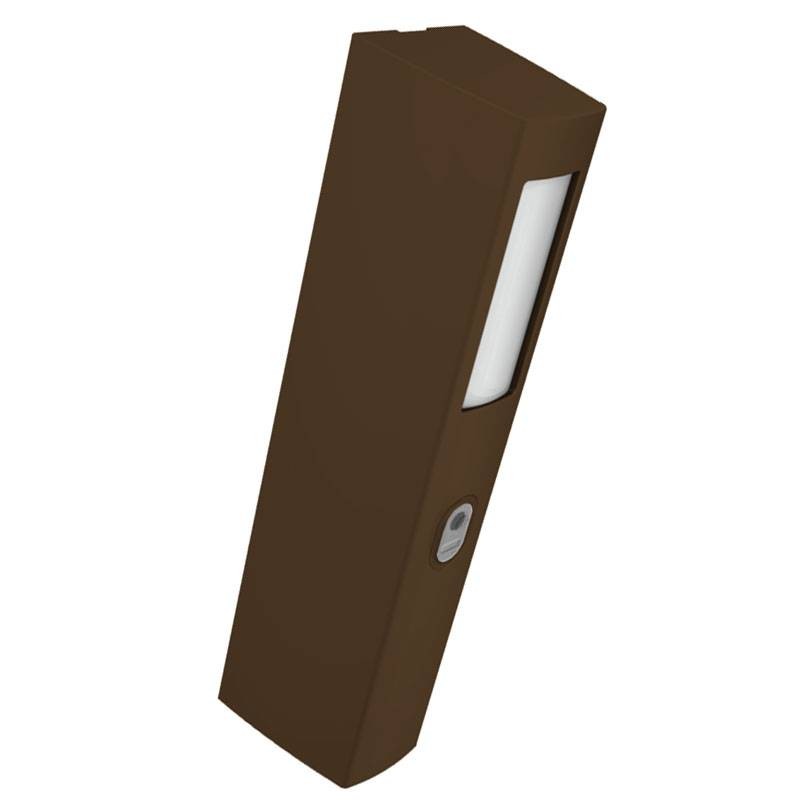

Bpt Came PXWDTCM dual technology radio curtain detector, made with passive infrared section and microwave section:
- Ceiling installation (indoor and outdoor protected) or side installation (indoor only)
- Especially suitable for protection of doors and windows
- Circuit for crossing direction discrimination (the user can cross the passage from inside to outside without generating the alarm, while the intruder coming from outside is regularly detected)
- Provides two auxiliary inputs for signal transmission from the 'alarm from external devices
- Each input can be programmed via appropriate dip switches to operate with NC contacts or shutter motion detectors (pulse counter function)
- Radio transmission on three channels of bidirectional Dual Band type
- GFSK modulation
- Power supply via lithium battery type 3 V CR123A
- Autonomy with average use about 2 years
- Degree of protection IP43
- Dimensions: 151 x 30 x 38 mm
- Regulatory compliance IEC EN50131-2- 2 IEC EN50131-5-3 Grade 2
- Environmental class III
Compatible with PXC2-32 - PXC2-64 - PXC2-212 - PXC24W - PXC99W control panels.
€165.97
Items Available: 2
: 1
Frequently bought together
There are no reviews
Data sheet
- Type: Detectors
- System: Curtain
