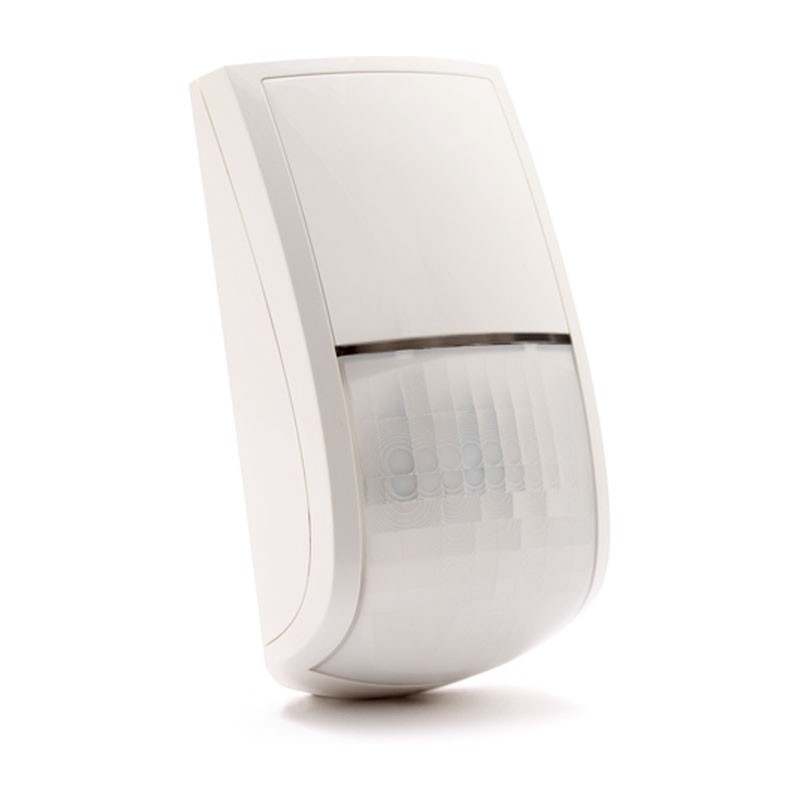

Risco Bware DT radio detector Bidirectional 868MHz RWX515DT080A
RSK RWX515DT080A
8485840029244
Risco Bware RWX515DT080A DT Radio Detector for Professional 15-Meter Security with dual technology two-way sensor with K-band microwave, ideal for indoor use.
-
868 MHz two-way radio technology
-
Dual technology IR + MW (24GHz K-band)
-
Active infrared anti-masking
-
Anti-opening and anti-tear tamper
-
15-meter coverage
-
Multicolor LED for visual diagnostics
-
Compatible with optional lenses
-
Compact dimensions: 64.2 x 127.6 x 46.6 mm
€102.49
Items Available: 15
Risco Bware DT Radio Detector: Advanced protection with dual technology
The RWX515DT080A detector in Risco's Bware line is designed to offer maximum detection accuracy by combining a 24GHz K-band passive infrared (PIR) and microwave sensor. This approach dramatically reduces false alarms, making it ideal for high-traffic environments or those subject to thermal variations.
Wireless reliability with immediate response
Using two-way radio communication at 868 MHz, this detector ensures constant synchronization with the alarm panel, confirming signal reception and reporting any anomalies in real time.
Anti-masking and comprehensive protections
Equipped with an active infrared anti-masking system, it detects any attempts at obscuration or tampering. In addition, built-in tampers protect against both unauthorized opening and forced removal.
Flexibility and customization
The RWX515DT080A can be equipped with interchangeable lenses to adapt its behavior to different types of environments (e.g., corridors, windows, restricted areas). Visual diagnostics via multicolor LEDs simplify installation, testing and maintenance.
Technical specifications of the Risco Bware DT Detector
| Feature | Detail |
|---|---|
| Security Level | Grade 3 |
| Coverage | 15m, 90° |
| Mounting height | 2.1m-2.7m |
| Sensing sensors | K-band microwave + 2 dual-element PIRs |
| Anti Mask (IR Active) | Yes |
| Anti-mask (Active IR) | yes |
| Tampers | Yes |
| Built-in EOL resistors | Dual EOL |
| Tamper | Anti-opening |
| White light immunity | Yes |
| Temperature compensation | Patented true temperature compensation |
| Operating voltage | 9 to 16 VDC |
| Current consumption | at 12 VDC: 16mA (typical), 39mA (max) |
| RF immunity | 80Mhz-2700Mhz in 10V/M |
| Compliance | EN50130-4 |
| Operating temperature range | -10°C to 55°C |
There are no reviews
Data sheet
- Type: Detectors
- System: Antimasking
- Installation: Wall-mounted
Wireless
