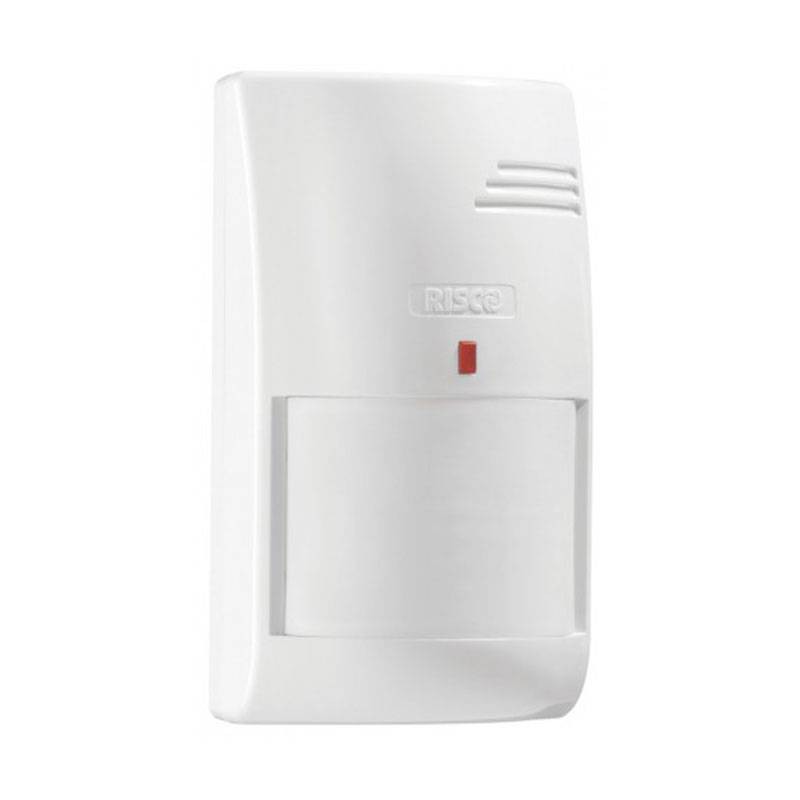

Risco DigiSense PIR Infrared Detector RK415PR0000C
RSK RK415PR0000C
Risco DigiSense PIR passive IR detector with microprocessor for accurate and reliable detection, range 15 meters, with built-in resistors.
-
Passive infrared PIR technology
-
Digital signal processing (DSP) with microprocessor
-
Coverage up to 15 meters
-
Real temperature compensation
-
Built-in EOL resistors for quick installation
-
Compatible with optional lenses (curtain and corridor)
€13.30
Items Available: 15
Frequently bought together
Risco DigiSense PIR detector: Reliability with digital PIR technology
The Risco DigiSense RK415PR0000C detector is designed to offer stable and accurate detection using infrared PIR technology combined with advanced digital signal processing (DSP). The internal microprocessor analyzes every movement to identify real intrusions, minimizing false alarms.
-
Microprocessor-based digital signal processing
-
Built-in end-of-line (EOL) resistors: dual EOLs
-
Real temperature compensation
-
Ample wiring space for easy installation
Optimal coverage for indoor environments
This sensor provides linear coverage of up to 15 meters, making it ideal for the protection of environments such as homes, stores, offices and commercial settings. The flexible design allows for use with optional lenses, such as curtain or corridor lenses, to suit every installation requirement.
Thermal compensation and integrated heaters
With true temperature compensation, the sensor maintains consistent and reliable detection even in the presence of temperature changes. It also features built-in EOL resistors, which simplify installation by avoiding the addition of external components.
Compact design and versatile installation
With dimensions of only 60 x 106 x 47 mm, the DigiSense PIR integrates easily into any indoor environment. It is compatible with wired systems and EN50131 Grade 2 certified, making it ideal for residential and commercial applications. The joint for inclined installation is not supplied but is available as an optional accessory.
Technical Specifications DigiSense PIR Detector
| Feature | Detail |
|---|---|
| Security Grade | Grade 2 - EN50131 |
| Coverage | 15 m x 15 m (50' x 50') |
| Installation height | 2 - 2.7 m (6'7" - 9') |
| Detection logic | PIR |
| Junction | Supplied with the sensor |
| End-of-line resistors | Built-in dual EOL |
| Optional lenses | For corridor and curtain |
| Supply voltage | 9 to 16 VDC |
| Optical filter | White light protection, pigmented lens |
| Operating temperature | -20°C to +55°C (-4°F to +131°F) |
| Dimensions (H x W x D) | 106 x 60 x 47 mm (4.17" x 2.36" x 1.85") |
There are no reviews
Data sheet
- Type: Detectors
- System: With Wires
- Installation: Wall-mounted
