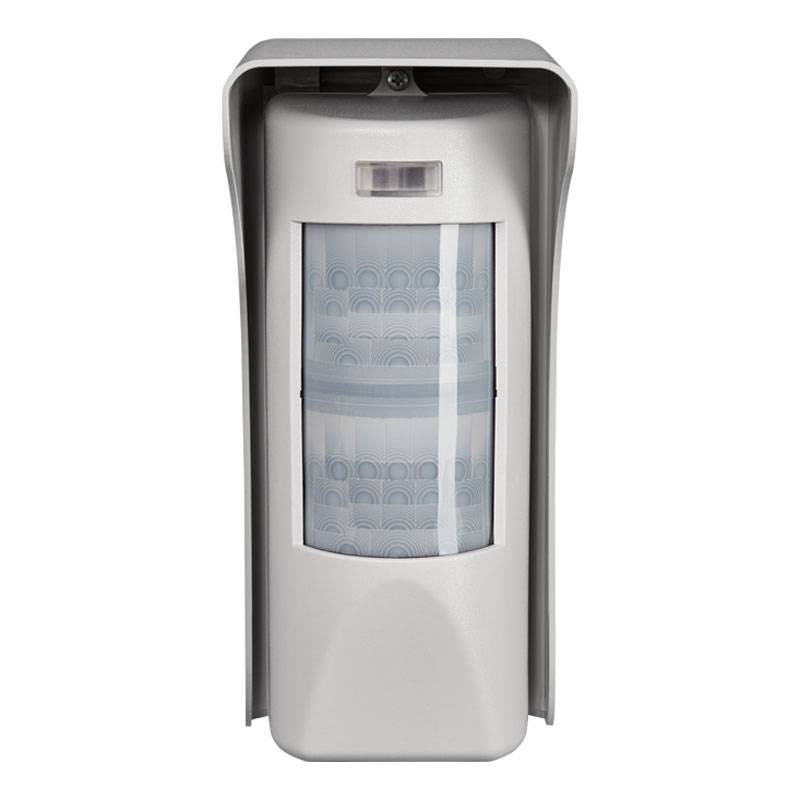

Elkron TT19AM outdoor triple technology detector 80IM4800113
EKO 80IM4800113
8034034447809
Elkron TT19AM outdoor triple technology detector designed and manufactured for the protection of outdoor environments, where installation at a height between 80 cm and 1.2 m is planned. The detector consists of two passive pyroelectrics with Fresnel lens and a 10.525 GHz microwave.
Mounting accessories to be purchased separately:
- SP19/20 bracket (code 80SP2E00113)
€115.47
Items Available: 22
: 4
Frequently bought together
The TT19AM detector, is a triple-technology device designed and manufactured for the protection of outdoor environments, where installation at a height between 80 cm and 1.2 m is planned.
It is composed of two PASSIVE PIROELECTRICS, with a Fresnel lens, and a 10.525 GHz MICROWAVE.
The detector has a range of 3 to 12 meters.
Main performance:
- High detection effectiveness and stability against false alarms.
- ACTIVE LED anti-masking system for detector protection and MW anti-approach system (settable via DIP)
- High immunity to the presence of animals, guaranteed by an algorithm calibrated not to detect animals up to a medium size
Features:
- 12V +/- 3V power supply
- Max. power consumption 39 mA
- Frequency band 10.525 GGz
- Stand By Absorption 18 mA
- Microwave 10.525 GHz
- Alarm Time 5 seconds
- Opto Relay 100mA @ 24V
- Tamper 100mA @ 30V
- Max transmitted power 18 dBm
- Working Temperature -10°C / +55°C
- Ambient Humidity: 95%
- Dimensions without accessories 185x85x80mm
Main functions:
- Outdoor triple technology detector (two PIR+MW)
- Degree of Protection IP54
- Environmental Class EN 50131-2-4: CLASS III
- Protection Grade EN 50131-2-4: GRADE 2
- Two high-efficiency dual-element infrared PIR sensors filtered to white light
- UV-stabilized parallel-plane Fresnel lens
- Active LED anti-masking.
- Anti-approach system
- High-quality, UV-stabilized polycarbonate housing
- Tropicalized board
- Dynamic temperature compensation with real room temperature detection
- Pet immunity
There are no reviews
Data sheet
- Type: Detectors
- System: Triple Technology
- Installation: External
