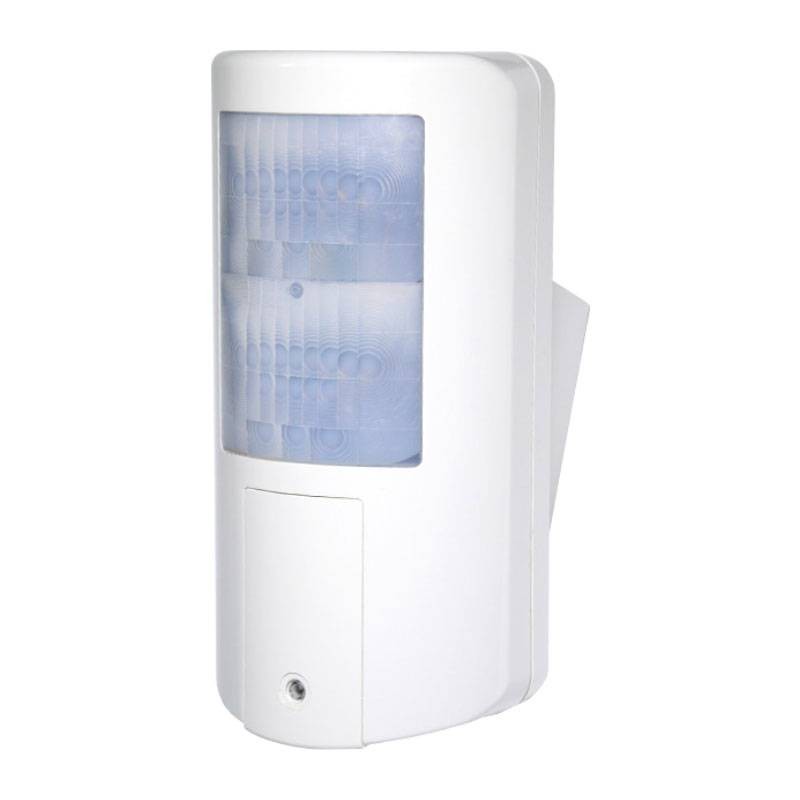

Risco Beyond DT Antimasking Detector RK350DT0000B
RSK RK350DT0000B
8485840042632
Risco Beyond DT dual technology outdoor detector with active IR anti-masking, 12 m range and IP54 protection for safe and reliable installations.
-
Dual technology (DT): 2-element PIR + 2-channel K-band microwave
-
Active infrared anti-masking
-
Immunity to direct sunlight
-
Immunity to animals up to 35 cm in height
-
Microwave with anti-collision function
-
Coverage 12 m with 90° angle
-
Tamper anti-opening and anti-removal
-
IP54 degree of protection, for outdoor use
-
Recommended installation at a height of 2.2 meters
€96.39
Items Available: 29
Frequently bought together
Risco Beyond DT detector: advanced perimeter security
The Risco Beyond DT RK350DT0000B is designed to provide reliable and accurate outdoor protection, ideal for residential and commercial environments. With integrated dual technology (2 PIR sensors and 2 K-band microwave channels), it ensures accurate detection while minimizing false alarms.
Active anti-masking and sun protection
The active infrared antimask function detects any attempt to obscure the sensor with spray or tape. In addition, the sensor has protection against direct sunlight, maintaining maximum reliability even in extreme light conditions.
Pet immunity
Thanks to detection intelligence and advanced optics, the detector can ignore the movement of animals up to 35 cm in height, reducing false alarms caused by pets or local wildlife.
Environmental protection and safe installation
Equipped with an IP54-rated enclosure, the sensor is protected from dust and splashing water. Recommended installation height at 2.2 m allows for optimal 90° coverage and 12 meters depth, perfect for protecting entrances, yards or perimeter areas.
Beyond Detector Technical Specifications
| Feature | Detail |
|---|---|
| Coverage | 12 m (39.4 ft), 90° |
| Installation height | 1.8 - 2.7 m |
| Microwave | 2 channels, K-band |
| PIR | 2 dual elements with 2 separate optics |
| Anti-masking | Active infrared |
| Tamper | Counter opening and removal |
| Built-in EOL resistors | Triple EOL |
| Output contacts | 100 mA, 24 V, N.C; alarm, tamper and fault/AM |
| Pet immunity | Up to 50 cm head height (1.1 ft) |
| Operating voltage | 9 to 16 VDC |
| RF immunity | 10 MHz to 3 GHz; complies with EN50130-4 |
| Operating temperature | From -25°C to +65°C |
| Storage temperature | -25°C to +70°C |
| Degree of protection | IP54 |
| Dimensions (H x W x D) | 167 x 88 x 106 mm |
| Sunlight immunity | Yes |
| Advanced detection algorithms | Sway Recognition, Digital Correlation |
There are no reviews
Data sheet
- Type: Detectors
- System: Antimasking
- Installation: Wall-mounted
With Wires
