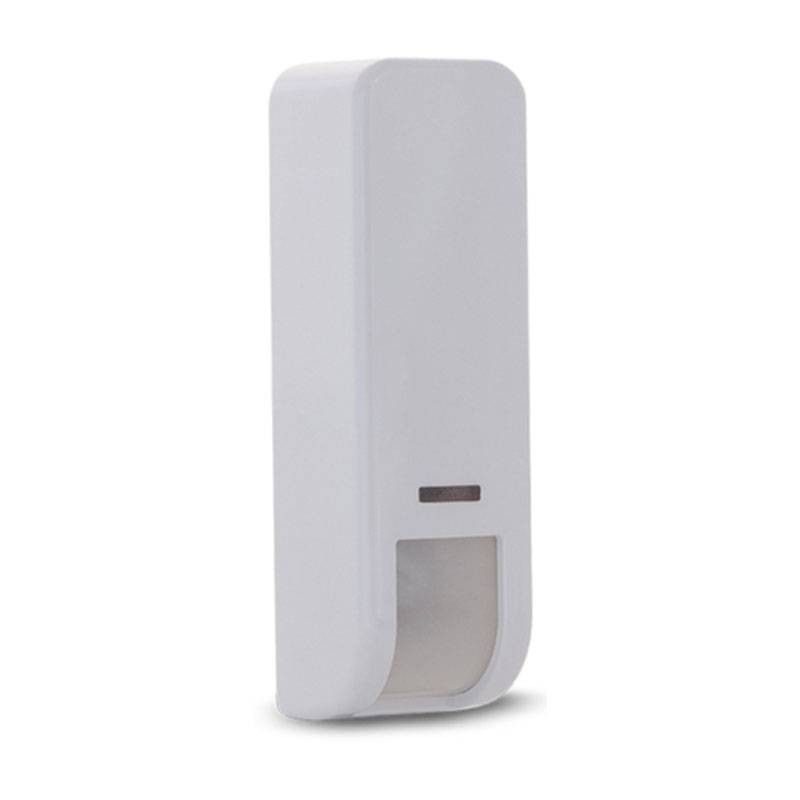

Risco DT outdoor radio curtain sensor RWX107DT800C
RSK RWX107DT800C
8485840123126
Risco outdoor radio curtain sensor with DT K-band technology, coverage up to 12 meters, IP65 protection rating, infrared anti-masking and installation joint included. Ideal for perimeter protection of windows, porches and outdoor passages.
-
Two-way radio communication on 868 MHz
-
Coverage up to 12 meters with narrow beam angle of 5°
-
Immunity to direct sunlight
-
Anti-masking with active IR technology
-
Powered by 1x CR123A battery (included)
-
IP65 protection for outdoor installations
-
180° joint included for wall or ceiling mounting
€107.47
Items Available: 90
Frequently bought together
Risco DT Outdoor Radio Curtain Sensor: Safe and reliable perimeter protection
The Risco RWX107DT800C sensor is designed for residential and commercial outdoor environments where accurate and timely detection is required. With dual technology (PIR + K-band microwave), it provides high performance even in harsh environmental conditions, significantly reducing false alarms.
High performance and zero false alarms
With integration of active infrared anti-masking and direct sunlight immunity, the sensor operates with total reliability, detecting only real intrusion attempts. DT technology improves accuracy in motion detection, even in environments with light and weather variations.
Simple and versatile installation
The device comes with a 180-degree joint that allows for wall or ceiling installation. Thanks to its compact and robust design, it easily adapts to any architectural context, providing optimal coverage with adjustable angle.
Technical specifications of the Risco outdoor curtain sensor
| Feature | Detail |
|---|---|
| Coverage | Up to 12m, 5° |
| Mounting height | 1.8m to 3m |
| Detection technology | Dual element PIR, K-band microwave |
| Detection method Anti Masking | IR active |
| Tamper | Anti removal |
| Frequencies | 868.65MHz |
| Battery | CR123 3V lithium battery |
| Typical battery life | At least 2 years |
| Standby current | 20 uA (standby) |
| Immunity to direct sunlight | Yes |
| RF immunity | 10MHz to 3GHz in accordance with EN50130-4 |
| Operating temperature range | -20°C to 60°C |
| Environmental protection rating | IP65 |
| Dimensions | 124 x 35 x 42mm 124 x 44 x 49mm with bracket |
There are no reviews
Data sheet
- Type: Detectors
- System: Antimasking
- Installation: Ceiling
Curtain
Wireless
Doors and Windows
External
Wall-mounted
