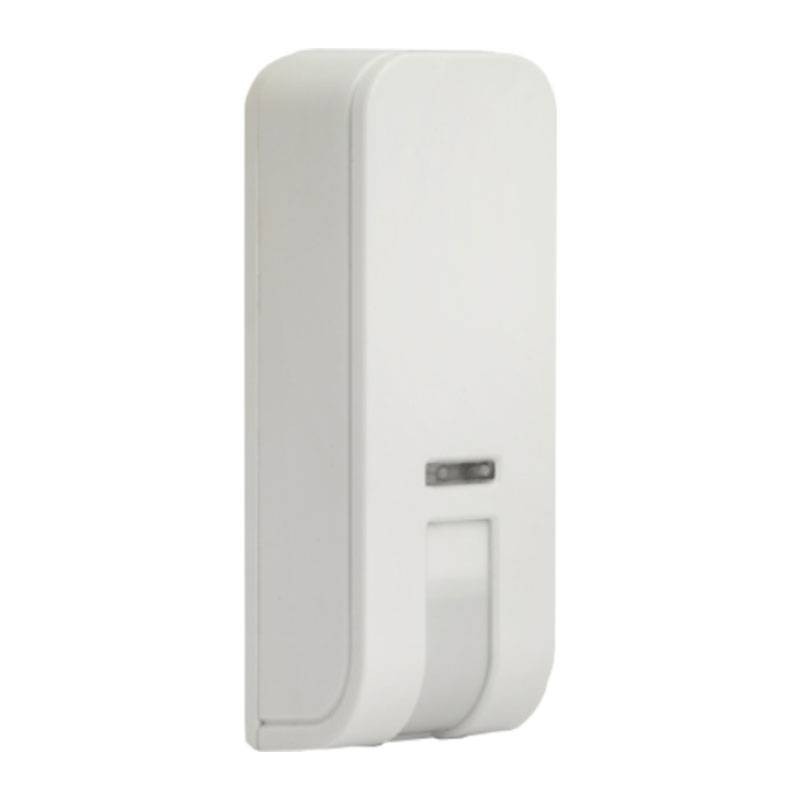

Risco DT AM Indoor Radio Curtain Sensor RWX10680200A
RSK RWX10680200A
8485840116982
Risco DT AM Indoor two-way Radio Curtain Sensor for perimeter window protection, compatible with RISCO radio systems. Selectable range from 3 to 6 meters.
-
Two-way radio technology on 868 MHz
-
Adjustable curtain coverage: 3m or 6m
-
Sunlight and white light immunity
-
Real temperature compensation
-
Selectable compatibility: mono/bidirectional
-
Autonomy 3 years CR123 battery included
-
Bracket included for window-side installation
€54.29
Items Available: 21
Frequently bought together
Risco DT AM Radio Curtain Sensor: Discreet and Precise Protection for Windows
Risco's DT AM radio curtain sensor is designed to provide invisible and effective perimeter protection for windows and French doors. With dual technology (infrared + microwave), it provides high reliability and reduced false alarms, ideal for residential or office environments.
Designed specifically for residential and commercial installations, they offer flexible coverage to ensure an outdoor detection solution with the highest levels of accuracy and reliability, regardless of the area or object requiring protection. The outdoor curtain detector line boasts Dual Tech technology with K-band microwave that effectively eliminates false alarms and improves detection performance.
-
DT technology with K-band microwave and narrow detection beam to minimize false alarms
-
Immunity to direct sunlight to prevent alarms caused by changes in brightness
-
Flexible coverage
-
Mounting height up to 3 meters
-
Supplied with swivel joint for optimal installation
Advanced radio technology on 868 MHz
Compatible with all Risco radio systems, the sensor operates on 868 MHz with two-way communication, allowing:
-
Continuous status monitoring
-
Reduced radio traffic
-
Improved reliability in transmissions
A convenient microswitch also allows selection of one-way operation, for extended compatibility.
Sunlight immunity and thermal compensation
Equipped with advanced white light filters, the sensor can ignore changes in brightness due to direct sunlight. True temperature compensation ensures maximum detection reliability in all seasons.
Easy and customizable installation
With the included 90° bracket, the sensor can be mounted precisely on either side of the window. The variable installation height from 1.8 to 3 meters allows the device to be adapted to the room configuration.
Technical specifications of the Risco Curtain Sensor
| Feature | Detail |
|---|---|
| Model | RWX10680200A |
| Type | DT AM indoor curtain sensor |
| Technology | Infrared + Microwave (Dual Tech) |
| Radio Frequency | 868 MHz |
| Communication | Two-way only (mono also selectable) |
| Coverage | Selectable: 3m or 6m |
| Installation height | 1.8m to 3m |
| Battery | 1x CR123 (included) |
| Estimated autonomy | Up to 3 years |
| Mounting bracket | Included (90° for side mounting) |
| Dimensions (W x H x D) | 34 x 100 x 34 mm |
| Compatibility | Risco one-way and two-way radio systems |
| Additional features | Anti white light, temperature compensation |
There are no reviews
Data sheet
- Type: Detectors
- System: Curtain
- Installation: Doors and Windows
Wireless
Internal
