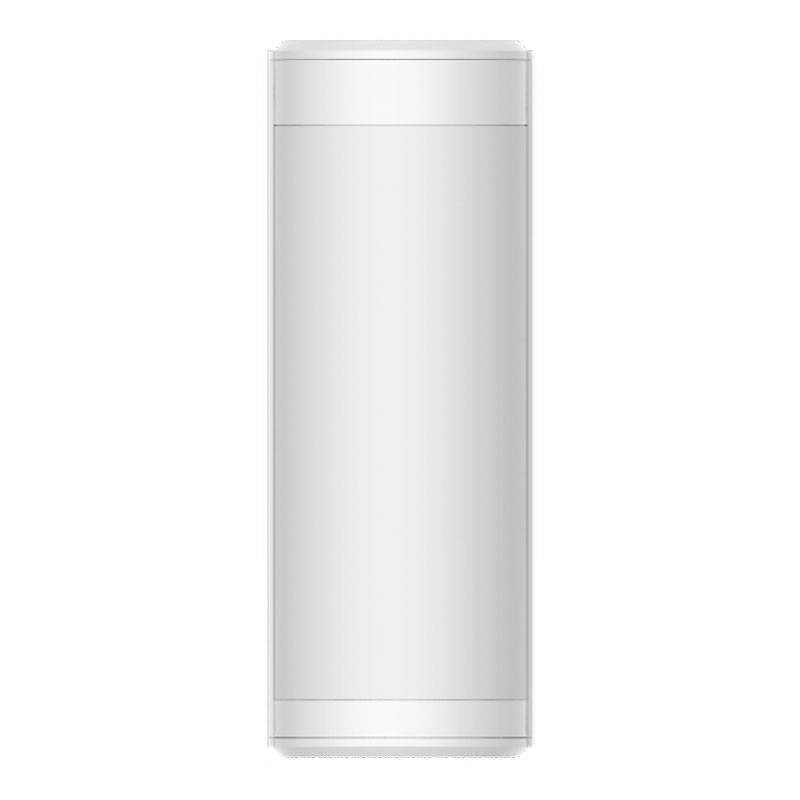

Hikvision AXPRO DS-PDTT15AM-LM triple technology detector 314300259
HIK 314300259
6931847144036
Hikvision AXPRO DS-PDTT15AM-LM triple technology outdoor detector with the following features:
- Coverage: Volumetric/Curtain
- Protection: Tamper (open/tear)
- Maximum Range: 15 m
- Installation Height: 1-1.5 m
- Antimasking
- Pet Immunity: 40 Kg
- Degree of Protection: IP65
€128.59
Items Available: 18
: 2
Frequently bought together
Detection performance:
- Detection method: Passive infrared; Microwave
- Detection range: 15 meters
- Detection angle: 90/180 degrees adjustable
- Detection zones: 92
- Detectable speed: 0.3/2m/s
- White light filter: 10000 lux
- Microwave frequency: 24 GHz (24.15-24.25 GHz)
- Digital temperature compensation
- Anti-masking
- Adaptive coverage
Interface:
- Alarm Output: Normally Closed
- LED indicator: Green (upper PIR), Red (microwave), Orange (lower PIR), Green + Orange (masking), Blue (alarm)
- Transmission Method: Wired
Electrical characteristics:
- Power consumption: 30mA (standard) - 220mA Max (with lighting on)
- Power supply: 9 to 16VDC
- Typical voltage: 12VDC
Characteristics:
- Operating temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Operating humidity: 10% to 90%
- Size (WxHxD): 75 mm × 202 mm × 73 mm
- Mounting height: 0.8 to 1.2 m
- Mounting Method: Wall
- Application Scenario: Outdoors
There are no reviews
Data sheet
- Type: Detectors
- System: Triple Technology
- Installation: External
