Burglar alarm control panel with 8 wire connection points expandable up to 32 wire or radio. Features 1 local relay output, 1 RS485 bus line for connecting expansion modules, keypads and transponder key readers. Built-in LAN interface for remote connection via Came Cloud, interfacing to Came Domotic 3.0 home automation systems and integration to Onvif IP CCTV systems. Supports 4 areas and 32 scenarios for system management. Connection to PSTN and GPRS/3G network via the appropriate optional modules.

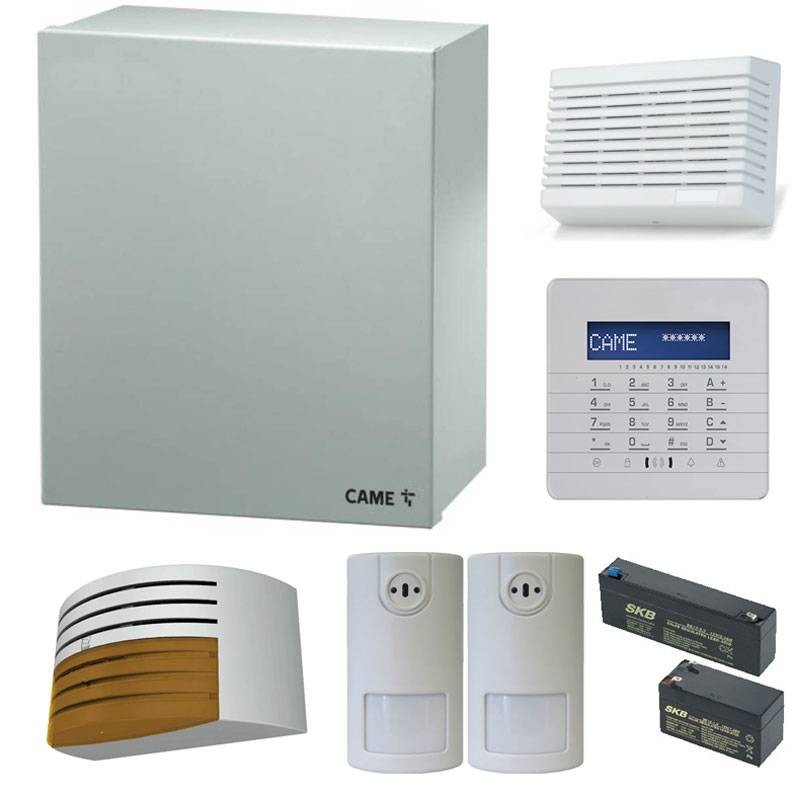

Kit component specifications:

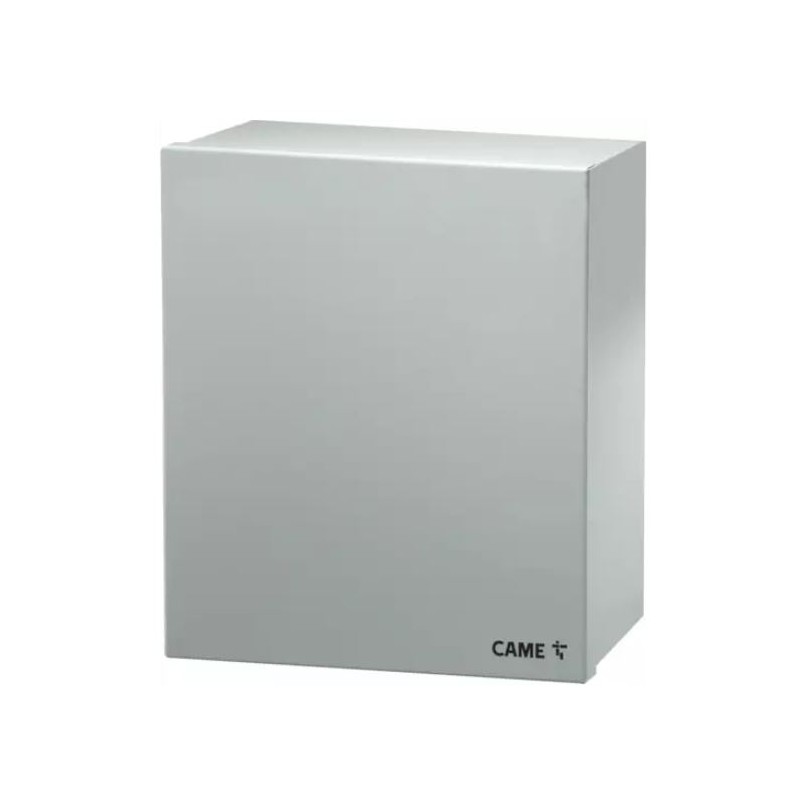

PXC2-32 Control Unit (846AA-0170):

• 8 wire connection points expandable to 32 wire or radio
• Features 1 local relay output
• 1 RS485 bus line for connecting expansion modules
• Keypads and transponder key readers
• Built-in LAN interface for remote connection via Came Cloud
• Interfaces to Came Domotic 3.0 home automation systems and integration to Onvif IP CCTV systems
• Supports 4 areas and 32 scenarios for system management
• Connection to PSTN and GPRS/3G network via the appropriate optional modules



Maximum number of components to be associated:

• Up to 4 wired and 4 radio keypads (846CA-0120 PXKTN02 - 846CA-0110 PXKTB02)
• Up to 16 Expansion module 4 connection points on bus (846NC-0280 PX4IOR)
• Up to 4 Transponder key inserter (846CC-0030 PXITU01)
• Up to 99 Transponder key (846CC-0020 PXTAG01)
• Voice synthesis already integrated (846NC-0070 PXV64)
• LAN card already integrated (846NC-0100 PXLAN)
• PSTN module (846NC-0290 PXTEL01) compatible but not integrated
• 3G communication module (846NC-0300 PXMC3G) compatible but not integrated
• Onvif camera module (846XC-0240 PXONV) compatible but not integrated
• Up to 2 radio receivers (846NC-0310 PXWRX01)
• Up to 32 radio inputs
• Up to 8 4-channel Radio Receivers (846CA-0070 PXWRC04)
• Up to 8 Radio Controllers 16 channels (846CA-0080 PXWRC16)
• Up to 4 keypads (1 LCD wire - 3 radio or wire) (846CA-0140 PXWKTN02 - 846CA-0130 PXWKTB02)
• Up to 2 Indoor Sirens (846LA-0010 PXWSE01)



At least one wired keypad PXKTN02 - PXKTB02 must be provided in systems made with PXC2-32, PXC2-64 and PXC2-212 control panels.



Features:

• Power supply 230 V AC 15% + 10% 50/60 Hz
• Power consumption Board (excluding battery charging and accessory boards) 150 mA
• Power supply 2.4 A switching
• Battery 7.2 Ah
• Degree of protection IP30
• Dimensions 405 x 295 x 90 mm
• Weight (without battery) 4.7 kg
• Container material Metal
• Operating temperature From - 10° to + 40°
• Storage temperature From - 10° to + 50°
• Relative humidity during operation 75 % R.H. No condensation
• Relative humidity in storage 75 % R.H. No condensation
• Regulatory compliance EN 50131-6; EN 50131-3 Grade 2
• Environmental class II




Functional characteristics:

• Connection points in central unit 8 configurable as input or output
• External connection points 24 configurable as input or output
• Total connection points 32 configurable as input (wired or radio) or output. Wired inputs/outputs are available via modules on Bus PX4IOR. PXWRX01 receivers must be connected to the central unit for the addition of radio inputs.
• Relay outputs on central unit 1
• Radio receivers on Bus 2
• I/O modules on Bus 16
• On-board keyboard No
• Bus 1 RS485 line
• Areas 4
• Scenarios 32
• Inserters 4
• Keypads (radio or wire) 4 wire + 4 radio
• Keys 99
• Radio controls 8
• Radio sirens 2
• User codes 99
• Weekly/Daily time programmer for complete system management
• Events 1000
• PSTN connectivity Via PXTEL01 module
• GSM, GPRS or 3G connectivity Via PXMC3G module
• Control by SMS via PXMC3G module
• Voice synthesis Standard
• Remote control with voice guidance Via module PXTEL01 or PXMC3G
• USB 3 communication port, for PXDGWF WIFI dongle connection, programming and firmware update
• LAN connection As standard
• Cloud connection As standard
• Live video verification (ONVIF cameras) Via PXONV module
• Remote programming via internet Yes
• Connection with home automation system Via LAN network
• Power supplies on Bus 2

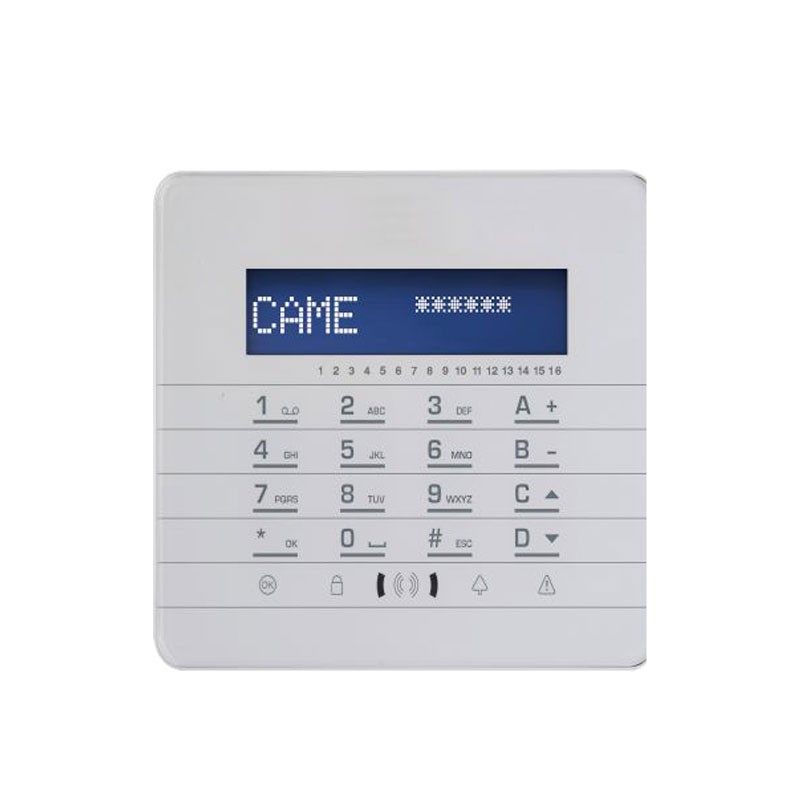

LCD Keyboard 846CA-0110 PXKTB02:

• Capacitive LCD keyboard with touch keys
• White color
• Allows programming of all control panel parameters and total control of the system by launching 16 scenarios (programmed partitions, e.g.: NIGHT scenario insertion perimeter area, outdoor area, day area) set in the control panel
• Provides an on-board transponder key inserter for use with PXTAG01 key and two terminals freely programmable as inputs or outputs (PXC2 only) of the control unit to which it is connected (in compliance with the maximum number of wire inputs and outputs, provided for each control unit, which does not vary with the addition of keypads)
• In order to minimize consumption, keypads are activated and illuminated by a sensor only when the operator is present and using them
• Can be installed directly on the wall or flush-mounted with box item OPALESI (see installation example)
• Power consumption 140 mA
• Dimensions 158 x 138 x 31 mm
• Regulatory compliance EN 50131-3 GRADE 3
• Environmental class II

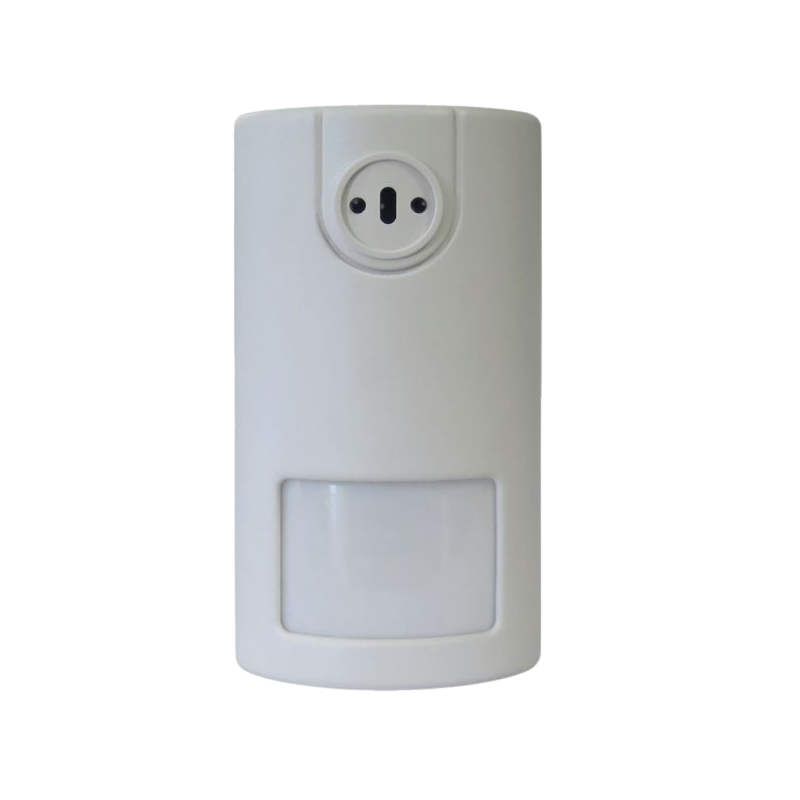

Dual technology volumetric detector 846EA-0150 PXDTV01:

• Made with passive infrared section and microwave section
• Range 15 m 90° aperture with 18 beams in 4 planes
• Microwave section range adjustment by trimmer
• Equipped with alarm memory circuit
• TC input for detector inhibition when control unit is switched off
• Complete with joint
• Power consumption 22 mA
• Dimensions 107 x 61.5 x 44 mm
• CEI EN50131-2-4 Grade 2 compliance
• Environmental class II

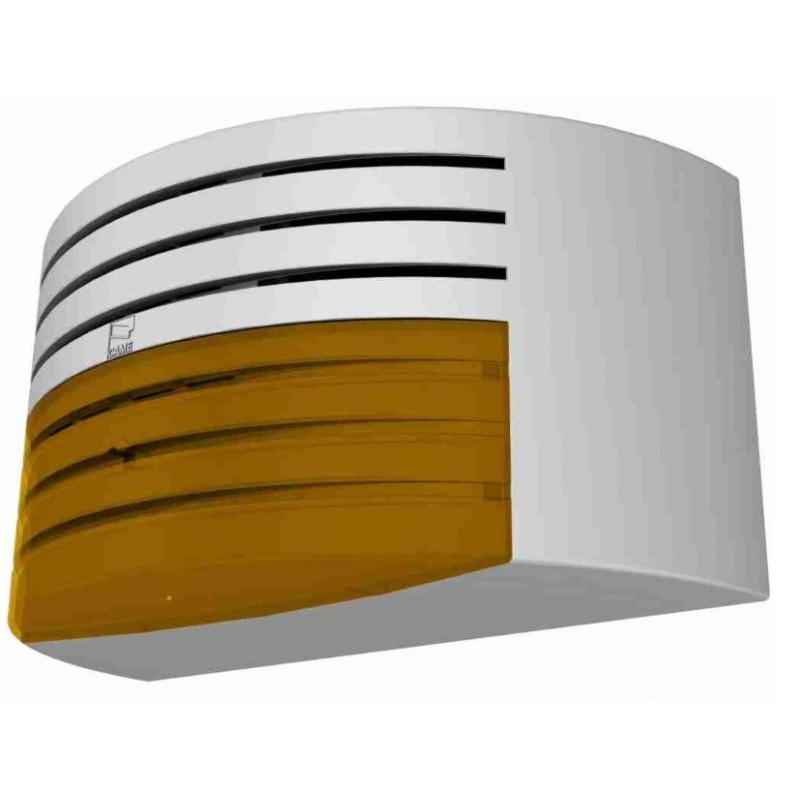

Self-powered outdoor siren 846LA-0020 PXSEA:

• White polycarbonate housing
• Acoustic power 101 dB at 1 m
• High-efficiency orange LED flasher
• Independent input for flasher control for system status signaling
• Active anti-foam control with contact output
• Current consumption: at rest 300 mA, in alarm 1.5 A
• Operating temperature -25 to +50 °C.
• Degree of protection IP44

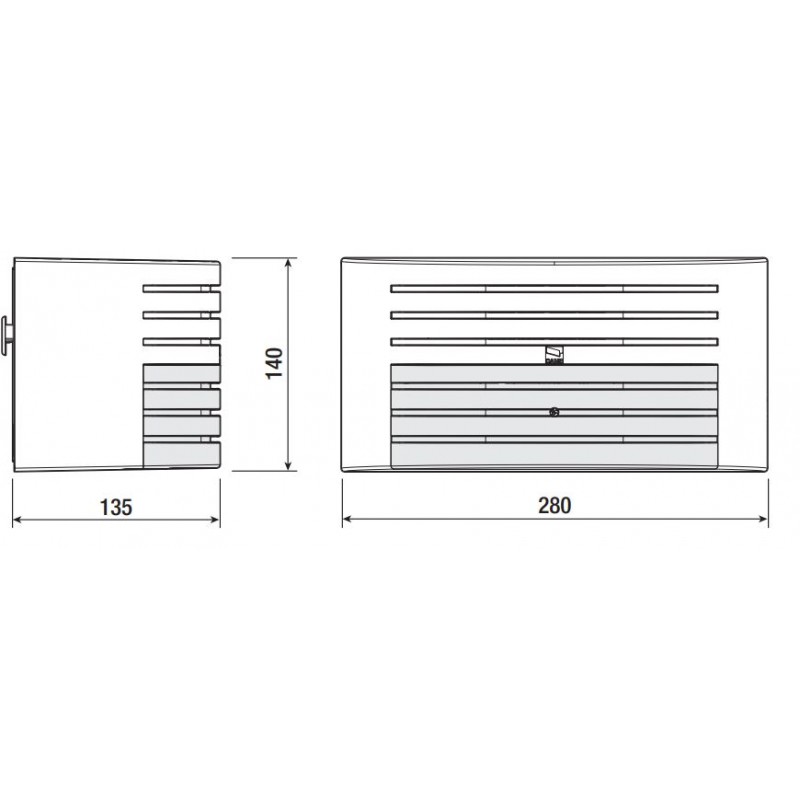

• Dimensions 280 x 140 x 135 mm
• Housed battery 2 Ah (BB020)
• Regulatory compliance EN 50131-4 Grade 2

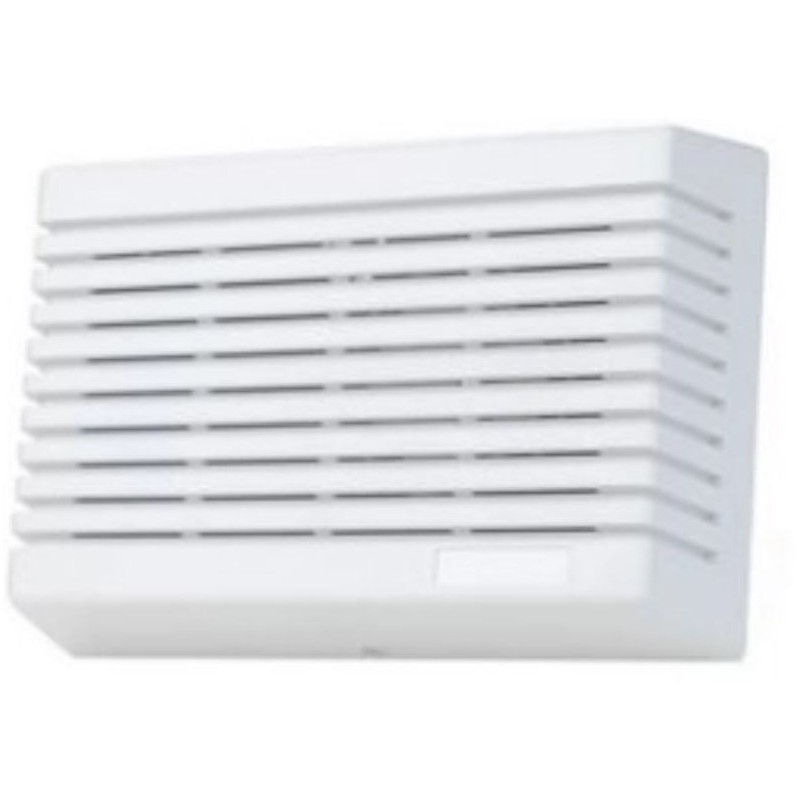

APF2201 indoor siren:

• ABS enclosure
• Sound power 114 dB at 1 m
• Power consumption 200 mA
• Degree of protection IP30
• Operating temperature -25 to +55 °C.
• Dimensions 160 x 110 x 50 mm
• Color White
