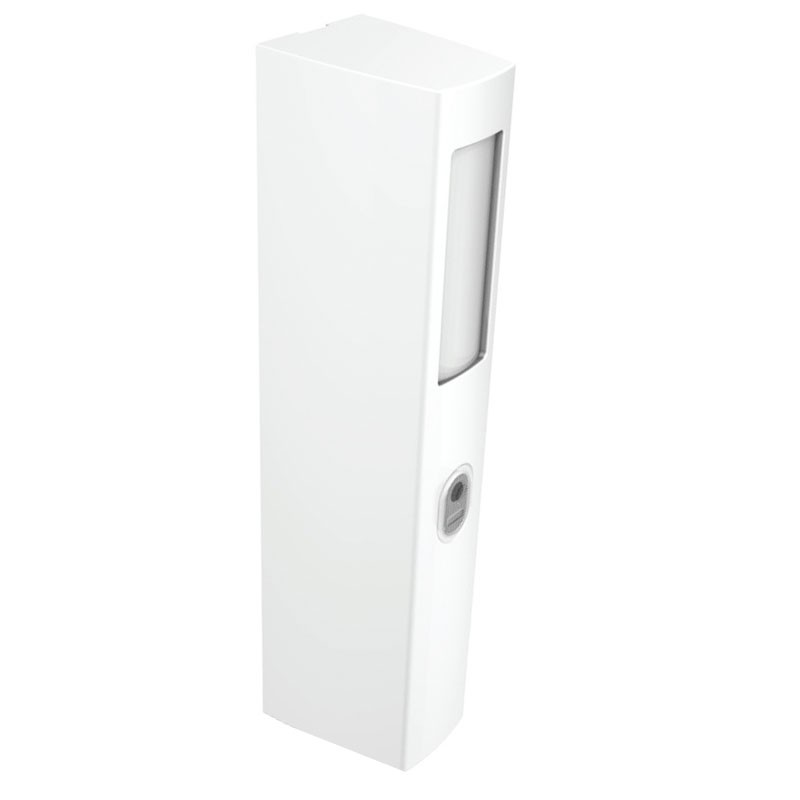

BPT PXWDTCB Radio Curtain Detector White 846EA-0090
BPT Came dual technology radio curtain effect detector with the following features:
- Power supply No. 1 3V Lithium battery (CR123A)
- Frequency (MHz) 433.92/868.65
- Max. absorption (mA) 50
- Standby absorption (uA) 25
- Radio signal strength (dBm) <10
- Detection range 5 meters
- Coverage of the 2 beams Lens 79° thickness 7.5°
- Microwave frequency (GHz) 24
- Microwave sensitivity High/Low via dip-switch
- Free air range (m) 200 (@868.65 MHz) - 100 (@433.92 MHz)
- Operating temperature range: -25 /+50°C
- Degree of protection IP43
- Standards: EN50131-2-4 Grade 2, EN50131-5-3, EN50131-6: Type C, EN50130-5, Environmental Class III
- Body color: white
BPT PXWDTCB Radio Curtain Detector White 846EA-0090
Tax included
Frequently bought together
PXWDTCB is a volumetric radio curtain effect sensor suitable for indoor and outdoor protected environments.
An additional 2 wired devices (e.g. shutter contacts or other sensors) can be connected for radio transmission of alarms.
The sensor also has an anti-opening device and an anti-tear device. If the container is opened or torn from the mounting surface, the sensor will activate the alarm.
The sensor is suitable for installation on the ceiling, example door jamb, window or wall but only indoors.
INSTALLATION: Before installing the sensor, make sure that there are no causes in the environment that may affect the proper operation of the sensor.
For example:
- Direct exposure to sun and rain
- Surfaces subject to vibration
- Presence of animals
- Heat sources
ASSEMBLY: Turn the flap, unscrew the screw and remove the bottom of the sensor by helping with a screwdriver. Route the cable from other devices to the terminals. Orient the sensor to the desired position and secure the sensor base with screws and dowels (provided). Close the sensor back up.
PROGRAMMING: Insert the battery. After powering the sensor, the red and green LEDs will light alternately for about ten seconds until initialization is complete. Proceed with the adjustments of the coverage of the room to be protected.
