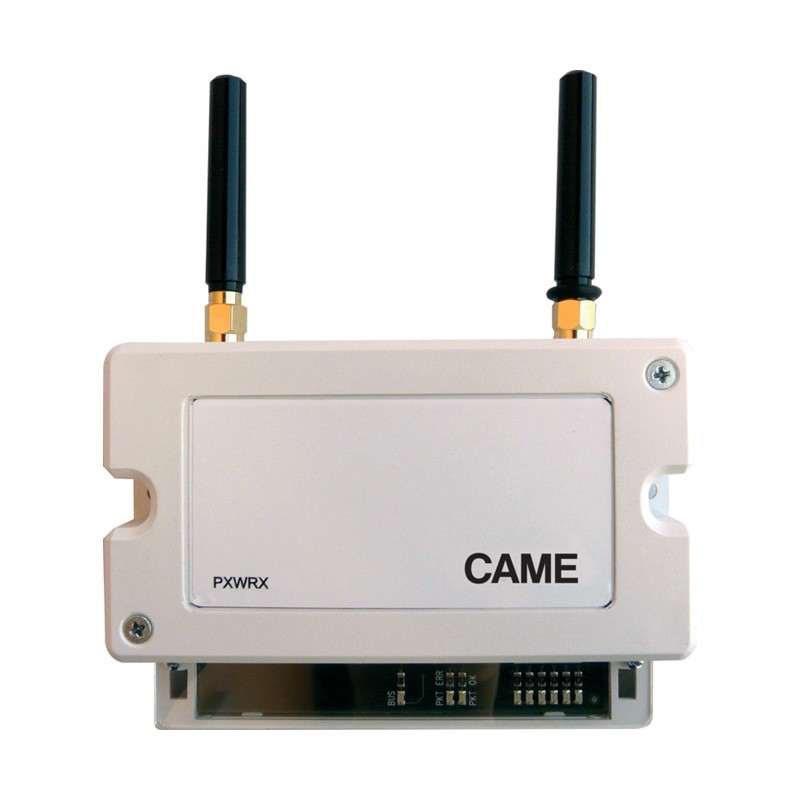

Radio receiver Bpt PXWRX01 846NC-0310

Bpt Radio Receiver PXWRX01 for PXC series control panels 846NC-0310

Bpt
Bpt
CMC 846NC-0310 8050456067692

Radio Receiver Bpt PXWRX01, reliable wireless communication for PXC series control panels, with the following features:

  • Control panel compatibility: PXC2-32, PXC2-64, PXC2-212, PXC99W

  • Connection: RS485 Bus

  • Radio communication: Bidirectional Dual Band

  • Power supply: 9 - 15V DC

  • Consumption: Max 100 mA

  • Dimensions: 110x80x25 mm

Do you have questions about this product or did you not find what you were looking for? Ask us!
Radio receiver Bpt PXWRX01 846NC-0310
Bpt Radio Receiver PXWRX01 for PXC series control panels 846NC-0310
€143.22
€143.22

€143.22
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€143.22

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Radio Receiver BPT for Security Systems

The radio receiver Bpt PXWRX01 is designed to ensure wireless communication between the PXC2 series intrusion control panels and compatible radio devices. Thanks to the Dual Band bidirectional transmission with GFSK modulation, it ensures a stable, secure, and low-interference connection, significantly improving the performance of the security system.

Simple installation on RS485 bus

The receiver connects directly to the RS485 line of the PXC2-32, PXC2-64, PXC2-212 control panels, making integration with the existing system simple and quick. Additionally, it can also be used with the PXC99W control panel, up to a maximum of two units, to extend the radio range and optimize system coverage.

Reliability and compliance with standards

The PXWRX01 complies with the EN50131-5-3 standard, certified Grade 2 and Environmental Class II, ensuring a high level of security and resistance in indoor environments subject to temperature variations between -10 °C and +40 °C. These features make it ideal for installations in residential and commercial environments.

Compact design and low consumption

With compact dimensions and a maximum consumption of 100 mA, the PXWRX01 receiver is designed for discreet installation and low energy impact. Local power supply at 9–15 VDC allows flexible management even in complex systems.

Typical applications

The PXWRX01 radio receiver is used in all intrusion systems that require secure and stable radio communication with peripheral devices. It is particularly suitable for:

  • Alarm systems with wireless peripherals (sensors, remote controls, sirens)

  • Extending radio coverage in complex environments

  • Integration with Bpt PXC series control panels in medium and large buildings

There are no reviews

Data sheet

Type:
Receivers
