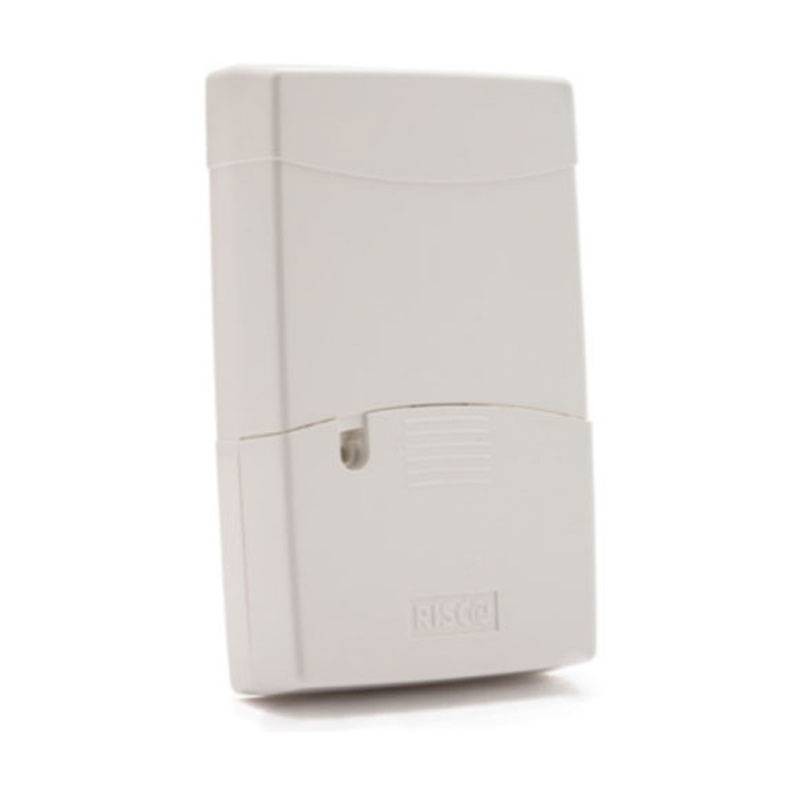

Risco Radio Receiver 32 BUS zones 868MHZ with video verification RP432EWV800A
RSK RP432EWV800B
8485840088654
Risco 32 Zone 868MHz Radio receiver on BUS with video verification support for LightSYS+ control panels. Easy connection and receiving images from RISCO sensors.
-
868 MHz frequency for secure and stable radio communication
-
Supports up to 32 RISCO one-way and two-way radio devices
-
Integrated video verification with image transmission from RISCO sensors
-
Compatible with Panda Radio keypads and RISCO radio sirens
-
Installable anywhere on the BUS, even in the control panel enclosure
-
Anti-opening and anti-removal tamper
-
Radio interference detection for enhanced security
€104.70
Items Available: 45
Frequently bought together
Risco Radio Receiver with Visual Verification for Intelligent Security
The RISCO RP432EWV800A Radio Receiver is designed to offer advanced protection with visual verification. Connectable to the LightSYS+ control panel BUS, it allows images to be received directly from RISCO camera radio detectors for immediate visual verification in the event of an alarm.
Flexible installation and connection on the BUS
The module can be placed anywhere in the room to be protected to optimize radio reception, or installed inside the control panel case. It also supports connection on fast BUS for faster image transmission.
Full compatibility and extended performance
Each radio module can manage up to 8 camera sensors, for a total of 16 modules that can be installed on LightSYS+, with a maximum of 8 per BUS line. The device supports the full range of RISCO radio peripherals: sirens, remote controls, detectors, and the Panda keypad.
Ease of installation
The radio expansion with visual verification can be installed simply as a bus device and can be mounted away from the control panel or inside the control panel enclosure.
Technical Specifications of the Radio Receiver
| Feature | Detail |
|---|---|
| Connection to the central unit | RS-485 |
| Power supply | 13V ±10% |
| Typical consumption | 40mA (average), 65mA (maximum) |
| RF power | 10mW (max) |
| Safety frequency | 868.65 MHz |
| Video frequency | 869.525 MHz |
| RF power (Video) | 100mW (max) |
| RF Immunity | Complies with EN50130-4 |
| Operating Temperature | -10°C to 55°C |
| Storage temperature | From -20°C to 60°C |
| Dimensions | 125 × 78 × 25 mm |
| EN50131-3 Certification | Grade 3, Environmental Class II |
| PD 6662:2017 Compliance | Yes |
