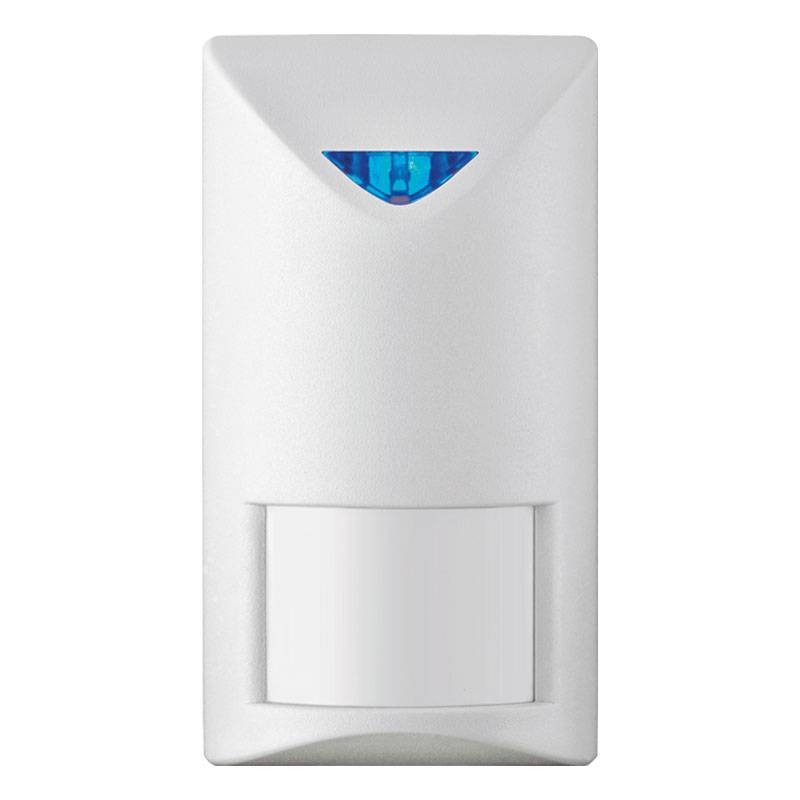

Elkron DT15 dual technology volumetric detector White 80IM3500113
EKO 80IM3500113
8034034445607
Elkron DT15 dual technology digital volumetric detector consisting of:
- 1 Infrared(IRP) + Microwave(MW).
- Max. range 15 meters
- MW coverage: 90° horizontal - 36° vertical
- IR coverage: 90°
- Sensitive zones: 18 on 4 planes with look down zones LED OFF selectable
- Rated supply voltage: 12V +/- 3V
- Power consumption at 12 V: 8 mA nom 22 mA max
- Microwave (MW) sensitivity: adjustable with trimmer
- MW frequency: 10.525 GHz
- Emission power (EIRP): 8 dBm
- Opto relay: 100mA / 24V
- Tamper: 100mA / 30V
- Operating temperature: -10°C to +55°C
- Dimensions: 107 (W) x 61.5 (H) x 43.5 (D) mm
- Weight:110 grams
- Complies with EN50131 grade 2
Joint for wall or ceiling mounting (80SP1F00113).
€33.60
Items Available: 176
: 54
Frequently bought together
The DT15 is a volumetric detector consisting of two technologies: Microwave (MW) and Passive Infrared (IRP). It is suitable for all residential and tertiary applications.
Main functions:
- LED OFF | Disables the display of the detection LED, keeping the memory-related display enabled
- MEMORY | When the system is turned off, the memory of the first alarm that occurred will be displayed. The memory will be reset the next time the system is turned on
- INIBIT | Allows the detector to know the status of the system and consequently to manage the memory and LED OFF functions
- AND FUNCTION | Alarm condition occurs when both technologies (MW+IRP) detect intrusion
- AUTOMATIC ECO | Allows the detector to adjust the emissions of the MW, monitoring movements in the Protection Area even without connecting the Inibit terminal
- CERTIFICATION | EN50131-2-4 grade 2 class II
Features:
- Volumetric detector consisting of an Infrared (IRP) + Microwave (MW).
- > Max. range 15 mt
- MW coverage: 90° horizontal - 36° vertical
- IR coverage: 90°
- Sensitive zones: 18 on 4 floors with look down zones
- LED OFF selectable
- Rated supply voltage: 12V +/- 3V
- Power consumption at 12 V: 8 mA nom 22 mA max
- Microwave (MW) sensitivity: adjustable with trimmer
- MW frequency: 10.525 GHz
- Emission power (EIRP): 8 dBm
- Opto relay: 100mA / 24V
- Tamper: 100mA / 30V
- Operating temperature: -10°C to +55°C
- Dimensions: 107 (W) x 61.5 (H) x 43.5 (D) mm
- Weight:110 grams
- Joint for wall or ceiling mounting (optional code 80SP1E00113)
Produit de qualité. Facile à mettre en place et en service. Très satisfait.
Très bon détecteur IR Hyperfréquence
Data sheet
- Type: Detectors
- System: With Wires
- Installation: External
