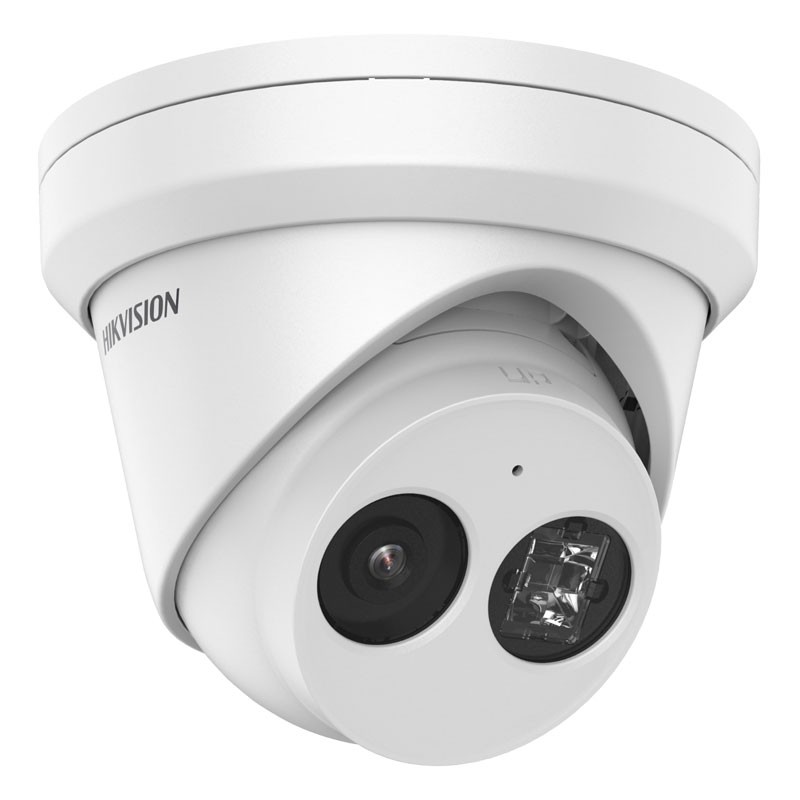

Hikvision DS-2CD2343G2-I 4MP IP Mini Dome Camera with 2.8 lens 311313530
HIK 311313530
6941264073697
Hikvision DS-2CD2343G2-I HUMAN/VEHICLE IP Mini Dome Camera:
- High quality images with 4 MP resolution
- Sharp images against strong backlight thanks to 120 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
- Focus on human and vehicle target classification based on deep learning.
Junction box to be purchased separately 302701477.
€149.33
Items Available: 35
: 4
Frequently bought together
Features:
- 1/3 Progressive Scan CMOS Image Sensor?
- Maximum Resolution 2688 × 1520
- Min. Color Illumination: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shooting Time 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Panoramic Angle Adjustment: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°.
- Optics Focal Length And Field Of View 2.8 mm, FOV horizontal 103°, FOV vertical 55°, FOV diagonal 122°.
- 4 mm lens, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°.
- Lens Mount M12
- Fixed Iris Type
- Aperture F1.6
- IR Supplementary Light Type
- Supplementary Light Range Up To 30m
- Intelligent Supplementary Light yes
- IR Wavelength 850 nm
- Video Compression Main Stream: H.265/H.264/H.264+/H.265+
- Secondary Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
- Video Bitrate 32Kbps to 8Mbps
- H.264 Type
- Basic Profile/Main Profile/High Profile
- Type H.265 Main Profile
- CBR/VBR Baud Rate Control
- Scalable Video Coding (SVC)
- H.264 and H.265 Encoding
- Region Of Interest (ROI) 1 fixed region per main stream and sub stream
- Image: Change Image Parameters yes
- Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable via client software or web browser
- Day/Night switching Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 120dB
- SNR ? 52dB
- Image Enhancement BLC, HLC, 3D DNR
- Ethernet Interface 1 self-adaptive Ethernet port RJ45 10M/100M
- On-Board Storage Built-in Micro SD, up to 256GB
- Built-in Microphone -U: yes
- Key Reset Yes
- Power supply 12 VDC ± 25%, 0.5 A, max. 6 W coaxial power plug, Ø5.5 mm, reverse polarity protection - PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
- Size Ø127.3 × 95.9 mm (Ø5.01? × 3.78?)
- Storage Conditions -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
- Protection IP67 (IEC 60529-2013).
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 4MP (2K)
