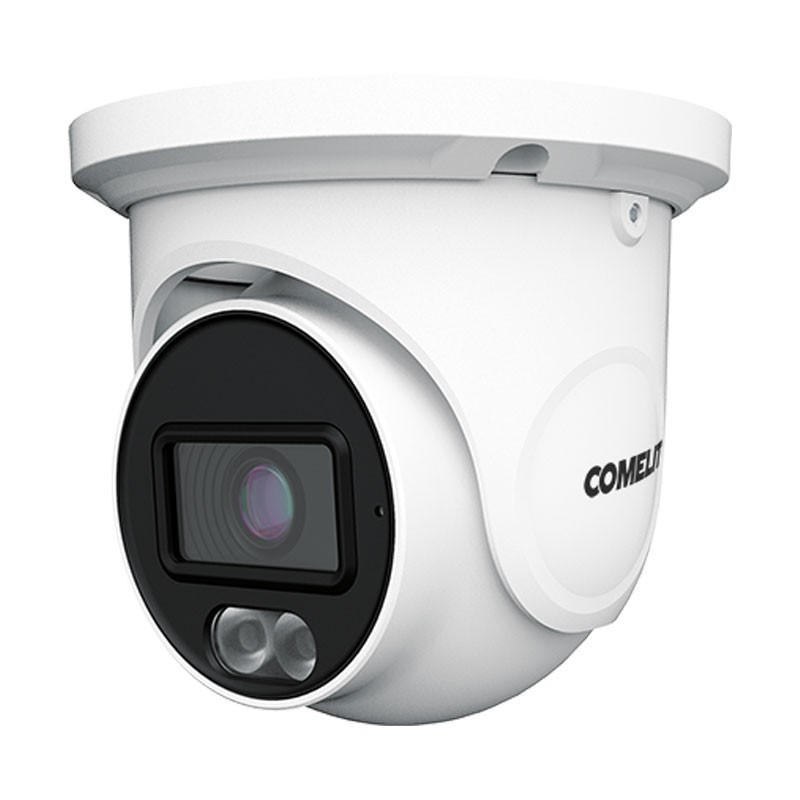

Comelit COLOR UP 4MP Fixed Lens 2.8mm IP Turret Camera IT04N2FA
COE IT04N2FA
8023903461992
Comelit Turret IP Camera, provides detailed images for indoor and outdoor surveillance. ColorUp function with white LEDs and IR Smart enables clear and sharp visibility up to 20 meters, allowing continuous monitoring even at night, with the following features:
-
Resolution: 4MP (2560x1440 pixels)
-
Lens: 2.8mm fixed lens
-
Illumination: white LED and IR LED with a range of up to 20m (Smart IR)
-
ColorUp function: improved color visibility even in low light conditions
-
Dual Light: white LED + IR with distinction between people and vehicles
-
Video analysis: area intrusion detection, line crossing, abandoned object, video tampering
-
Degree of protection: IP67 (waterproof and dustproof), IK10 (vandal-proof)
-
ONVIF support: compatible with multibrand video surveillance systems
€112.18
Items Available: 41
: 3
Frequently bought together
Comelit COLOR UP camera high quality, advanced analysis and durability in any environment
The Comelit COLOR UP camera is equipped with a 1/3" CMOS Ultra Starlight sensor, providing superior video quality even in low light conditions. With 4MP resolution, it delivers detailed images for indoor and outdoor surveillance. ColorUp function with white LEDs and IR Smart enables clear and sharp visibility up to 20 meters, allowing continuous monitoring even at night.
Advanced video analysis and detection features
This camera supports several smart video analysis functions, including area intrusion detection, line crossing, detection of abandoned or removed objects, and distinction between people and vehicles. With these functions, it is ideal for advanced security applications, such as monitoring sensitive areas in offices, warehouses, or public spaces.
Durable and versatile for any environment
The camera body is made of strong and durable die-cast aluminum, with an IP67 rating that makes it perfect for outdoor installations in dusty and wet environments. In addition, the IK10 rating provides protection against vandalism. Operating temperature ranges from -30°C to 60°C, making it suitable even for extreme climates.
Installation and compatibility
The Comelit COLOR UP 4MP is ONVIF compatible, facilitating integration with various IP surveillance systems. Power can be supplied via PoE (Power over Ethernet) or external 12VDC power supply, simplifying installation. In addition, it is compatible with browsers such as Google Chrome, Edge, Firefox and Safari and the Comelit CCTV App for remote control.
Technical Specifications Comelit COLOR UP IP Turret Camera
Main Features
| Feature | Value |
|---|---|
| Camera Sensor | 1/3" CMOS Ultra Starlight |
| Lens size | 2.8mm fixed lens |
| Effective Pixels | 2560x1440 |
| Horizontal field of view | 95° |
| Vertical field of view | 50° |
| Diagonal field of view | 115.2° |
| Electronic shutter | 1/1 ÷ 1/100000 s |
| Sensitivity | 0.0005 (color), 0 (black and white, IR led ON) |
| Video transmission | Triple streaming |
| Management software | Comelit CCTV Manager |
| Video resolution | 4MP |
DORI (Detection Distances)
| Feature | Value |
|---|---|
| Detection | 62 m |
| Observation | 25 m |
| Recognition | 12 m |
| Identification | 6 m |
Software/Firmware Features
| Feature | Value |
|---|---|
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Frame rate | 30fps |
| Supported protocols | DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, QoS, RTSP, UDP, P2P, ONVIF, SNMP |
| Firmware upgrade via network | Yes |
| Simultaneously connected users | 3 (live) |
| Remote viewing | Edge browser, Firefox, Chrome, Safari |
| Remote control from mobile | Comelit CCTV APP |
| Latest firmware version | 5.2.2(44436)(2024-05-13) |
Features
| Feature | Value |
|---|---|
| Main Functions | 3D-DNR, BLC |
| Motion detection | Yes |
| Privacy zones | 4 |
| Backlight compensation (BLC) | BLC |
| Wide Dynamic Range (WDR) | 120dB |
| DNR Control | 3D-DNR |
| White balance adjustment | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual, Automatic |
| Brightness adjustment | Yes |
| Camera titration | Yes |
Hardware Features
| Feature | Value |
|---|---|
| IR led illumination distance | 20 m |
| White LED lighting distance | 20 m |
| Vandal-proof degree of protection | IK10 (metal case) |
| IP rating | IP67 |
| Audio inputs/outputs | 1 + Mic / 0 |
| LAN output type | Ethernet 10/100 Mbit/s (RJ45) |
| SD card support | Micro-SD (256GB max, card not supplied) |
General Data
| Feature | Value |
|---|---|
| Supply voltage | 12VDC |
| Max. power consumption | 6W |
| PoE Power Supply | IEEE 802.3af standard |
| Power supply type | PoE, External power supply |
| Diameter | 108 mm |
| Height | 96 mm |
| Product Weight | 450 g |
| Type coating materials | Die-cast aluminum |
| Case type | Turret |
| Product color | White |
| Operating temperature range | -30 ÷ 60 °C |
| Operating humidity | 25 TO 95 % RH |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 4MP (2K)
