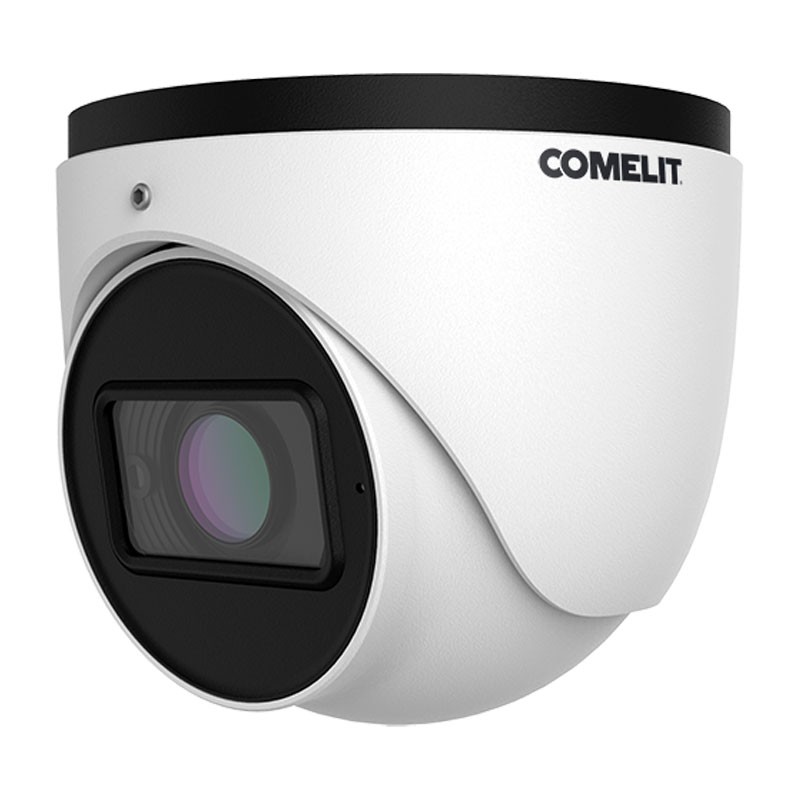

Comelit Turret AHD Camera 4 MP motorized optics 2.8-12 mm IP67 AHDCAMS05ZB
COE AT04N1ZA
8023903465075
Comelit AHD Turret 4 MP camera with 2.8-12 mm motorized lens, with IR illuminator up to 30 m, ideal for indoor and outdoor installations, with the following features:
Resolution: 4 MP (effective 2 944 × 1 656 pixels)
Sensor: 1/2.5″ CMOS
Motorized varifocal lens: 2.8-12 mm
WDR: Digital Wide Dynamic Range (D-WDR)
IR illumination: built-in LEDs, range 30 m
Video connections: AHD / TVI / CVI / CVBS
S/N ratio: > 52 dB
€104.86
Items Available: 12
: 2
Frequently bought together
Comelit AHD camera images high resolution
The 4MP AHD turret camera provides clear and detailed footage thanks to its 1/2.5" CMOS sensor and 2944x1656-pixel video resolution. Perfect for indoor and outdoor environments, this camera is ideal for monitoring entrances, parking lots, stores and residential areas.
Motorized Varifocal Optics for Greater Flexibility
Varifocal optics from 2.8 to 12 mm, with remotely controllable zoom, allow excellent adaptability to different installation contexts, from panoramic to close-up viewing, without compromising image quality.
Enhanced Night Performance with IR LEDs.
Equipped with infrared LEDs with a range of 30 meters, it ensures effective surveillance even in complete darkness. Active IR and signal-to-noise ratio above 52 dB enable clear images even in low light.
Rugged and Protected: IP67 and IK10
The die-cast aluminum case offers high protection against dust and water jets (IP67), while IK10 impact resistance makes it suitable for installations in public or vandal-prone environments.
Simplified Compatibility and Installation
Compatible with major video standards (AHD, TVI, CVI, CVBS), it easily integrates into existing video surveillance systems. Dip-switch control and optional accessories such as mounts and brackets make mounting and adjustment easy.
Technical Specifications Comelit AHD Camera
Main Features
| Camera Sensor | 1/2.5" CMOS |
|---|---|
| Lens Type. | Motorized varifocal 2.8-12 mm |
| Effective pixels (horizontally × vertically) | 2944 × 1656 |
| Optical sensitivity | Shutter 1/50 ÷ 1/100000 s |
| Signal-to-noise ratio (S/N) | > 52 dB |
| Video output | AHD / TVI / CVI / CVBS |
| Video resolution | 4 MP |
Features
| WDR | D-WDR (Wide Dynamic Range) |
|---|
Hardware Features
| IR Distance | LED illuminator up to 30 m |
|---|---|
| Vandal-proof rating | IK10 (metal case) |
| Environmental protection rating | IP67 |
| Camera control | Dip-switch |
General Data
| Power supply | 12 V DC (external) |
|---|---|
| Max. power consumption | 6 W |
| Dimensions (H × W × D) | 111.6 × 111.6 × 99.6 mm |
| Weight | 550 g |
| Material | Die-cast aluminum |
| Structure type | Turret |
| Product color | White / Black |
| Operating Temperature | -30 °C TO +60 °C |
| Operating humidity | 25 % ÷ 95 % RH (non-condensing) |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: AHD
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
