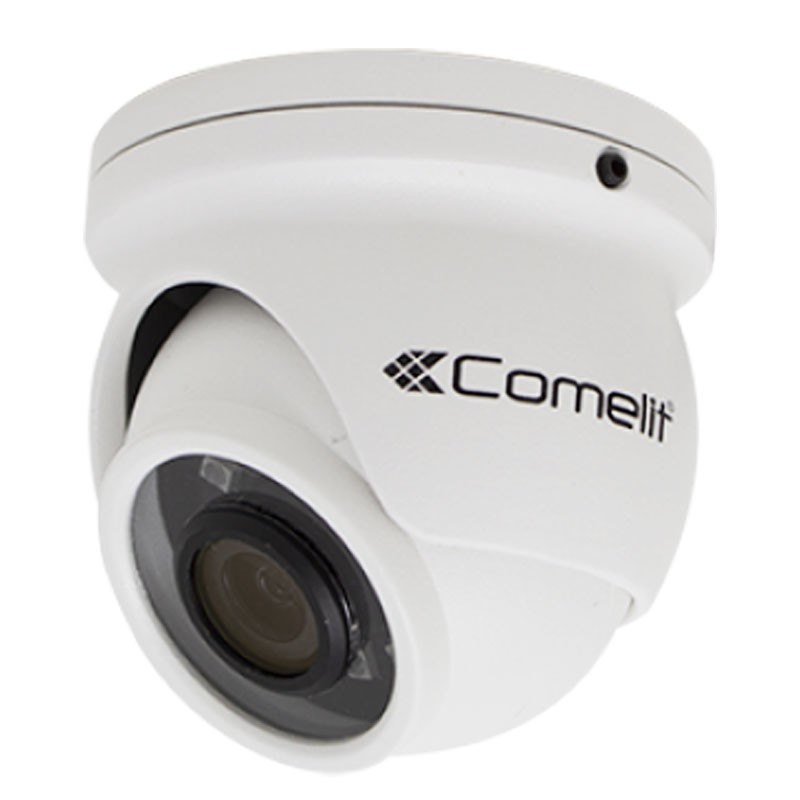

Comelit AHD 5MP optical 3.6mm microdome camera AHDCAMS05F01A
COE AHDCAMS05F01A
8023903398427
Comelit microdome camera, with the following features:
- 12VDC supply voltage
- Maximum power consumption (W) 4.8
- Diameter (mm) 59 Height (mm) 55
- Weight 300 grams
- Lens size fixed optics (mm) 3.6
- Type coating materials Die-cast aluminum
- Housing type Minidome
- Color White
- Operating temperature:-10/+50°C
- Operating humidity (RH max) (%) 25 ÷ 95
- CVBS analog video output (BNC - 1 Vpp/75 ohm)
- IR led illumination distance 12 leds 12 µ / 10m
- Maximum distance with RG59 / UTP coaxial cable 300 / 100
- Degree of protection IP66
€50.50
Items Available: 11
: 3
Extremely compact in size. 5MP resolution, 3.6mm optics, IR Led with range up to 10 meters.
Other technical features:
- Backlight Compensation (BLC) BLC
- OSD digital effects
- Wide Dynamic Range (WDR) D-WDR (50dB)
- 3DNR DNR control
- White balance adjustment AWB, Manual
- Automatic Gain Control (AGC) Yes
- Camera Titration Yes
- Frame rate 25fps
- Camera Sensor 1/2.9" CMOS Progressive Scan
- Lens size fixed lens (mm) 3.6
- Horizontal field of view (°) 84
- Vertical field of view (°) 45
- Diagonal field of view (°) 100
- Electronic shutter (s) Auto
- Sensitivity (lux) 0.01 (color), 0 (black and white, IR LED ON)
- Signal-to-noise ratio (dB) >50 (AGC OFF)
- IR Filter Mechanical Video output AHD/TVI/CVI/CVBS (960H)
- Video resolution (H x V - pixels) 1920x1080 (Full-HD 1080p)
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP66
- System: TVI/AHD/CVI/CVBS
- Optical: 3.6 mm
- Resolution: 5MP
