Ajax Camera TurretCam HL IP 8Mp 2.8mm lens white
08T 126265
4823114073021
Camera TurretCam HL Ajax IP 8MP with 2.8 mm optics – Smart surveillance with AI, hybrid illumination, and colour vision even in the dark.
-
Ultra HD 8 MP resolution (3840 × 2160)
-
Fixed 2.8 mm optics – viewing angle 110°
-
Hybrid illumination IR + white light up to 50 m
-
CMOS sensor 1/2.7” – True WDR for balanced images
-
Built-in microphone, power supply PoE / 12 V
-
Intelligent AI: detection of people, vehicles, animals
-
Compatible with Ajax system: alarms, video, automation
-
Management via Ajax mobile and desktop app (virtual videowall)
-
Indoor and outdoor use – IP protection grade (not specified, but usually IP66
TurretCam can also operate without NVR, saving the archive on the SD card (if installed).
€283.69
Out of stock
Incoming
Ajax TurretCam HL Camera with AI Recognition and Clear Colour Images
The Ajax TurretCam HL 8MP IP camera is designed to offer continuous and intelligent monitoring, combining ultra-high resolution, colour night vision, and integrated artificial intelligence. The new HL series introduces automatic white light illumination, which activates based on the detection of people, animals, or vehicles, ensuring detailed footage even in the dark, making the camera an effective visual deterrent.
Detailed and Adaptive Vision, Even at Night
Equipped with a 1/2.7” CMOS sensor of 8MP, the TurretCam HL offers a sharp 4K image. The intelligent hybrid illumination switches between infrared and white light, allowing realistic colour night visibility up to 50 metres. The True WDR system automatically manages scenes with strong light contrasts, offering balanced and easily readable videos in any condition.
Smart Detection for Precise Surveillance
Thanks to integrated AI, the TurretCam HL is capable of:
- Detecting movements
- Recognising people, animals, and vehicles
- Eliminating irrelevant recordings
- Providing real-time alerts on smartphones or PCs
Recording can be set to event, motion zone, or object detection, optimising storage space and simplifying footage consultation.
Full Integration with the Ajax System
As part of the Ajax platform, the TurretCam HL integrates perfectly with:
- Alarm systems (HUB, HUB Plus, HUB 2, HUB 2 Plus, Hub Hybrid)
- Intrusion, fire sensors, and automation devices
- Ajax mobile and desktop apps, with a customisable virtual videowall
- Compatibility with ONVIF IP cameras for centralised management
The entire system can be managed from a single app, making video surveillance more accessible, secure, and efficient.
| Camera | |
|---|---|
| Sensor type | 8 MP CMOS, 1/2.7" |
| Focal distance | 2.8 mm |
| Maximum aperture | f/1.6 |
| Iris | Fixed |
| Focal type | Fixed |
| Field of view | Horizontal 110° Vertical 56° Diagonal 126° |
| Illumination distance | White LED: up to 50 m IR LED: up to 50 m Intelligent illumination control to avoid overexposure |
| VIDEO | |
| Supported resolutions | 8 MP (3840 × 2160) 6 MP (3072 × 1728) 5 MP (2944 × 1656 / 2880 × 1620 / 2592 × 1944) 4 MP (2560 × 1440) 3 MP (2304 × 1296) 2 MP (1920 × 1080) 0.6 MP (1024 × 576) |
| Frame rate | Up to 20 fps |
| Image rotation | 0° / 180° |
| Video codec | H.265, H.264 |
| Dynamic range | True WDR |
| STORAGE | |
| Memory support | microSD up to 256 GB |
| Recommended class | V30 or higher |
| Compatibility | Ajax NVR |
| AUDIO | |
|---|---|
| Microphone | Integrated |
| Audio recording | Available with enabled settings |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| INTELLIGENT VIDEO ANALYSIS | |
| Motion detection | Software frame analysis |
| AI detection | Humans Animals Vehicles |
| NETWORK | |
| Network port | 1 × RJ-45 Ethernet auto-adaptive (10/100 Mbps) |
| Supported protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF (Profile S/T*) Compatible with third-party VMS |
| Profile T note | Supported for streaming and configuration; advanced functions not guaranteed |
| MAIN FEATURES | |
|---|---|
| Video protocol | JetSparrow (peer-to-peer, encrypted) |
| Visual alarm verification | Scenarios with camera activation by Ajax detectors, immediate event sending |
| Privacy | Advanced controls, configurable access by the owner, guaranteed data protection |
| PROTECTION AGAINST TAMPERING | |
| Encryption | mTLS — secure connection |
| Authentication | Via Ajax Cloud |
| Secure Boot | Protection against counterfeit firmware |
| OTA signature verification | Secure firmware update |
| POWER SUPPLY | |
| PoE standard | 802.3at/af |
| PoE consumption | Max 8.3 W • Average 7.7 W |
| External power supply | 12 V⎓ ±20%, 1 A |
| Consumption at 12 V | Max 7.1 W • Average 6.6 W |
| ENCLOSURE | |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature | from −30 °C to +60 °C |
| Permissible humidity | Up to 90% (non-condensing) |
| Protection class | IP65 |
| COMPLETE SET | |

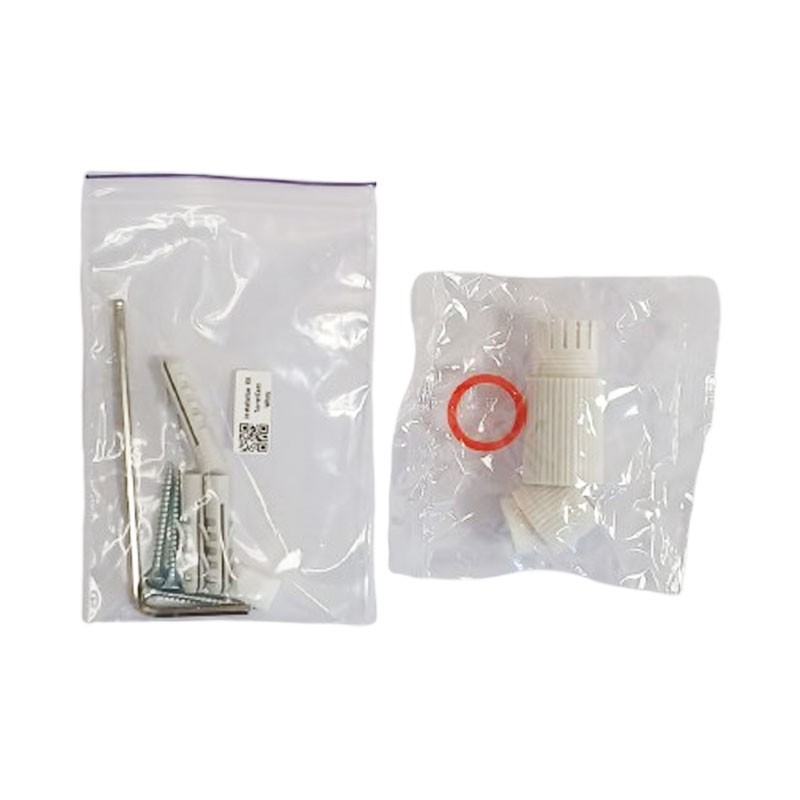

| Contents | TurretCam HL (8 Mp / 2.8 mm) Mounting template Installation kit Quick guide |
There are no reviews
Data sheet
- Colour: White
- Type: Dome cameras
- Degree of protection: IP65
- System: IP
- Optical: 2.8 mm
- Resolution: 8MP (4K)
