Orbis MPC-P30R pre-assembled center clamp height 30mm OB620156
ORB OB620156
8426709934422

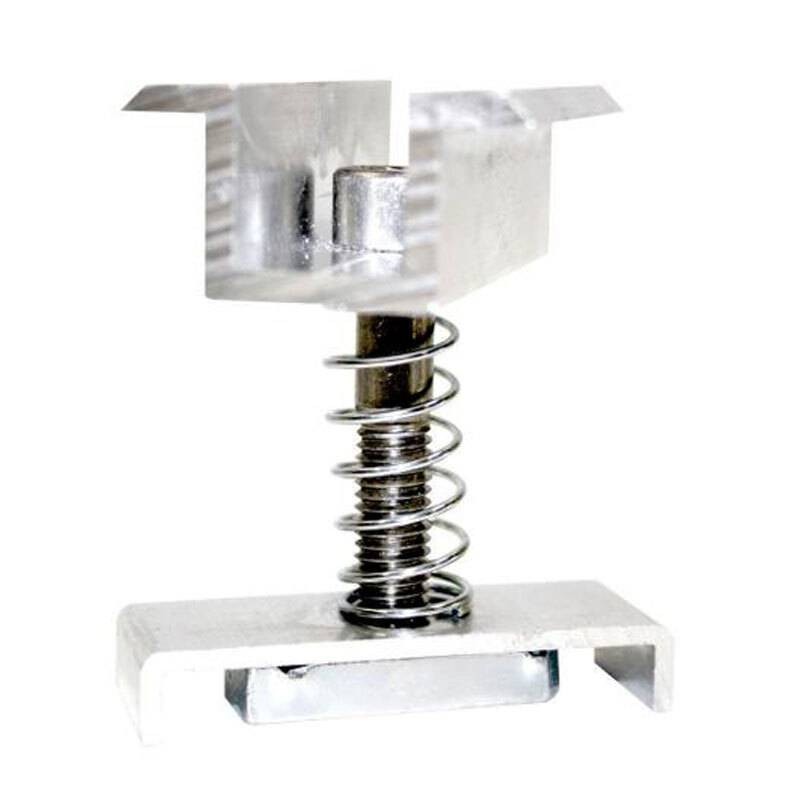

Orbis MPC-P30R pre-assembled central clamp:
- Module Fixing
- Aluminum color
- Module thicknesses
- Allowable Module Heights: from 30mm
MPC-P are natural aluminum clamps used to fasten PV modules on support profiles.
MPC-P is a pre-assembled clamp for central module fastening, available in different models depending on module thickness.
€2.15
Items Available: 181
: 18
Features:
- Clamp material: aluminum alloy EN AW-6060 T5
- Screw: stainless steel TCE M8, AISI 304
- Spring: Galvanized iron (machining cycle Fe/Zn 7 II)
- Nut: DDF Steel AISI 304L
- Allowable module heights: from 30 mm
- Clamp width: 60 mm
- Color: Natural aluminum
Ottimo prezzo. Spedizione rapida. Sono soddisfatto.
prodotto economico e funzionale per la funzione che deve svolgere
Data sheet
- Type: Clamps
