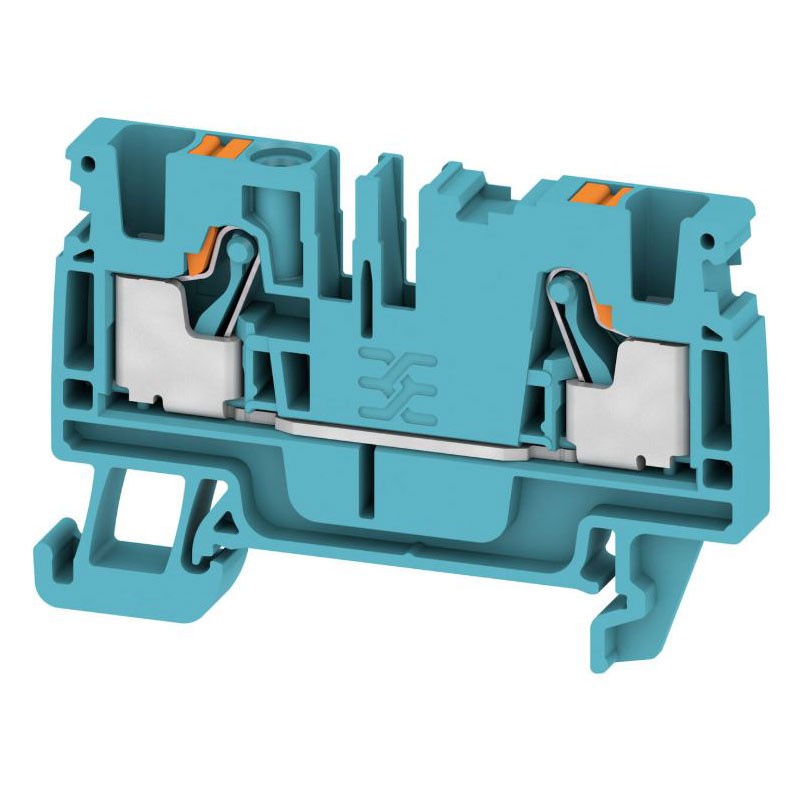

Weidmuller Terminal block Push-In 4mm² blue
WEI 2051210000
4050118411638
Weidmüller through terminal type A2C 4 BL Push-In 4 mm², blue colour, for DIN rail TS35, compliant with IEC 60947-7-1:
-
Connection technology: PUSH IN (screwless)
-
Nominal cross-section: 4 mm²
-
Body colour: Blue
-
Mounting: DIN rail TS 35
-
Nominal voltage AC/DC: 800 V
-
Nominal current: 32 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid
-
Compliant with RoHS and REACH
-
RoHS / REACH: Compliant (without SVHC >0.1%)
-
Dissipated power: 1.02 Watts
€1.06
Items Available: 567
: 450
Frequently bought together
Terminal block Weidmuller Push-In, reliable connection and quick wiring
The Weidmüller A2C 4 BL Push-In terminal block is designed to offer a secure, compact, and extremely fast connection solution in industrial electrical panels and automation systems. Thanks to the Push-In technology, the conductor can be directly inserted into the connection point without the use of tools, significantly reducing wiring time and the risk of installation errors.
This solution also ensures a stable and vibration-resistant connection, a fundamental feature in industrial plants subject to continuous mechanical stress.
High electrical performance
With a sizing section of 4 mm², the terminal supports a rated current up to 32 A and a rated voltage of 800 V, making it suitable for power and distribution circuits. The impulse voltage of 8 kV, combined with the overvoltage category III and pollution degree 3, ensures reliable operation even in electrically critical environments.
The low contact resistance of 1 mΩ and the contained power dissipation (1.02 W) contribute to maintaining high performance and reduced energy losses.
Compact and versatile for electrical panels
Thanks to its reduced dimensions (width 6.1 mm) and pluggable mounting on DIN rail TS35, the A2C 4 BL terminal allows for an orderly and compact arrangement of connections, optimizing space within the electrical panel. It is suitable for applications in industrial automation, electrical distribution, and control systems.
The use of the end plate is also foreseen, necessary for correct end-of-row installation.
| ELECTRICAL DATA | |
|---|---|
| Sizing section | 4 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 32 A |
| Current with max. conductor | 32 A |
| Reference standards | IEC 60947-7-1 |
| Contact resistance | 1 mΩ (IEC 60947-7-x) |
| Sizing impulse voltage | 8 kV |
| Power dissipation | 1.02 W (IEC 60947-7-x) |
| Overvoltage category | III |
| Pollution degree | 3 |
| GENERAL DATA | |
| Base material | Wemid |
| Colour | Blue |
| Colour of operating elements | Orange |
| Flammability class | UL 94 V-0 |
| Equipped rail | TS 35 |
| Mounting type | Support rail TS 35 |
| Fixing type | Pluggable |
| Open side | Right |
| Explosion-proof design | Yes |
| Lockable | No |
| With stop pin | No |
| CONNECTIONS | |
| Connection type | PUSH-IN |
| Additional connection type | PUSH-IN |
| Number of clamping points | 2 |
| Cable section AWG (min.) | AWG 26 |
| Cable section AWG (max.) | AWG 12 |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS AND WEIGHT | |
| Width | 6.1 mm |
| Height | 60 mm |
| Depth | 39.5 mm (40.5 mm with DIN rail) |
| Net weight | 0.011 g |
| SYSTEM DATA | |
| End plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
