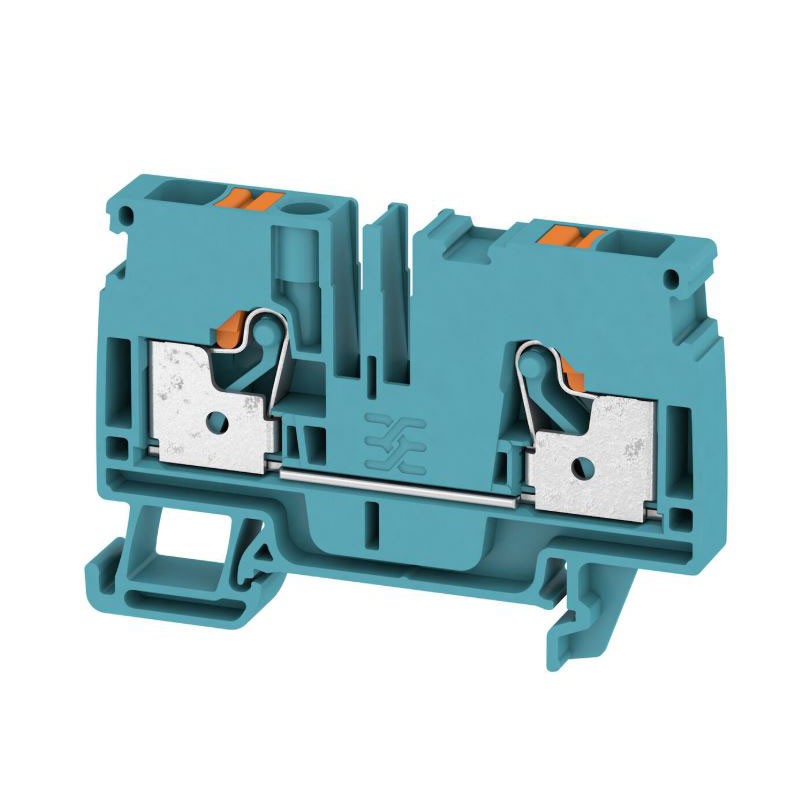

Terminal block Weidmuller Push-In 6mm² blue
WEI 1991790000
4050118376494
Weidmüller through terminal Push-In 6 mm² blue colour, for DIN rail TS 35, ideal for electrical panels on DIN rail TS35, quick and reliable connections up to 41 Amperes:
-
Connection technology: PUSH IN
-
Nominal cross-section: 6 mm²
-
Colour: Blue (orange operating elements)
-
Mounting: DIN rail TS 35
-
Nominal voltage AC/DC: 800 V
-
Nominal current: 41 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid
-
Compliant with RoHS and REACH
-
Stripping length: 12 mm
-
Pollution degree: 3
€1.62
Items Available: 200
Frequently bought together
Weidmuller Through Terminal Block, quick and secure connection with Push-In technology
The Weidmüller A2C 6 BL through terminal block uses Push-In technology, allowing fast and tool-free wiring for rigid and flexible conductors with ferrules. This reduces installation time and ensures a stable and durable contact even in the presence of vibrations.
Designed according to IEC 60947-7-1, it is suitable for industrial electrical panels where high electrical performance and operational safety are required.
High electrical performance
With a rated current of 41 A and a rated voltage of 800 V (AC/DC), the terminal block is suitable for medium-high power applications. The impulse voltage of 8 kV, overvoltage category III, and pollution degree 3 allow its use in demanding industrial environments.
The low volume resistance (0.78 mΩ) helps reduce losses and heating.
Conductor compatibility and ease of installation
The pluggable mounting on TS35 and the top connection direction make wiring neat and accessible. Terminal plate required.
It supports a wide range of sections: AWG: from 22 to 8, Clamping range: 0.34 – 10 mm², Flexible: up to 6 mm², Stripping length: 12 mm.
| SIZING DATA | |
|---|---|
| Sizing section | 6 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 41 A |
| Current with max. conductor | 41 A |
| Reference standards | IEC 60947-7-1 |
| Volume resistance | 0.78 mΩ (IEC 60947-7-x) |
| Sizing impulse voltage | 8 kV |
| Power loss | 1.31 W (IEC 60947-7-x) |
| Pollution degree | 3 |
| Overvoltage category | III |
| Connection type | PUSH-IN |
| GENERAL DATA | |
| Equipped rail | TS 35 |
| Mounting type | TS 35 support rail |
| Fixing type | Pluggable |
| RoHS compliance | Compliant, without exemption |
| Base material | Wemid |
| Colour | Blue |
| Operating elements colour | Orange |
| Flammability class | UL 94 V-0 |
| Gauge according to standard | IEC 60947-1 A5 |
| CONNECTIONS | |
| Number of connections | 2 |
| Clamping range (min.) | 0.34 mm² |
| Clamping range (max.) | 10 mm² |
| AWG cable section (min.) | AWG 22 |
| AWG cable section (max.) | AWG 8 |
| Flexible section (min.) | 0.34 mm² |
| Flexible section (max.) | 6 mm² |
| Connection direction | Top |
| Stripping length | 12 mm |
| Blade size | 1.0 × 5.5 mm |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS | |
| Height | 66.5 mm |
| Depth | 45.5 mm (46 mm with DIN rail) |
| Width | 5.1 mm / 8.1 mm |
| SYSTEM DATA | |
| Terminal plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Clamping points per level | 2 |
| Potentials per level | 1 |
| Internally bridged levels | No |
| PE connection | No |
| N function | No |
| PE function | No |
| PEN function | No |
