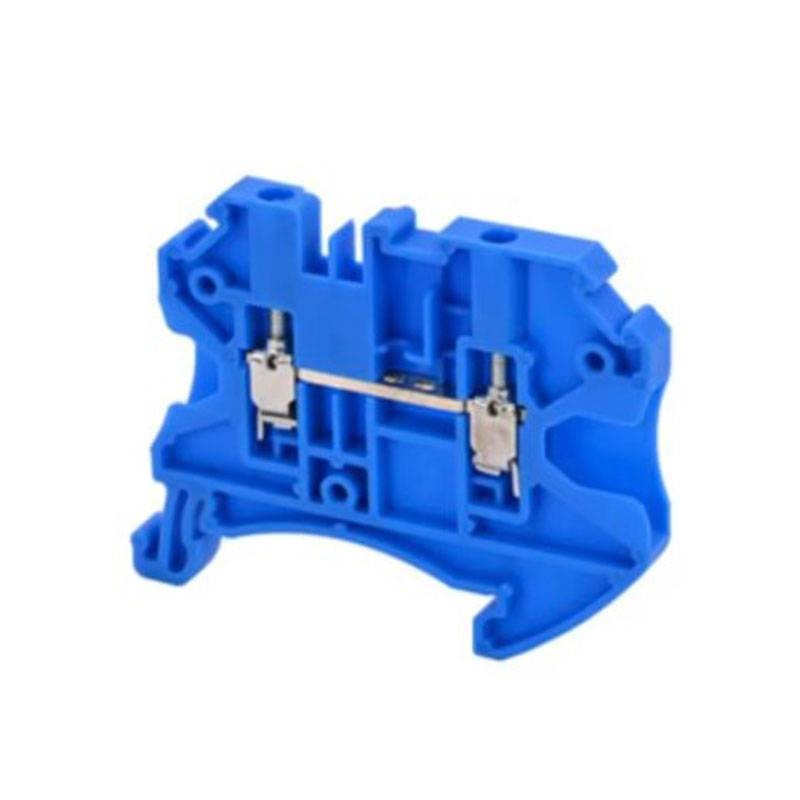

Cembre Din Clamp with Screw Clamp 10 mmq 10 mm blue TBS10-BU

Cembre
Cembre
CEM TBS10-BU 8051316086846

Cembre TBS Composable Terminal Block with Screw Clamp, a reliable solution for connecting conductors in both civil and industrial electrical systems, ideal for applications such as feed-through circuits, lighting, switchboards, civil electrical systems and industrial electrical distribution. Advanced design and the use of high-quality materials ensure a secure and durable connection, even in harsh environments and high operating intensity, with the following features:

  • Rated cross-section: 10 sq. mm.

  • Flexible conductor cross -section: 0.5 to 10 sq. mm

  • Solid conductor cross-section: 0.5 - 16 mmq

  • Rated current: 57A

  • Rated voltage: 1000V

  • Rated peak voltage: 8 kV

  • Number of connections: 2

  • Number of levels: 1

  • Screw pitch: M4

  • Wire stripping length: 10 mm

Do you have questions about this product or did you not find what you were looking for? Ask us!
Cembre Din Clamp with Screw Clamp 10 mmq 10 mm blue TBS10-BU
€0.90
€0.90

€0.90
Tax included
Calculate shipping cost
Items Available: 242
Further availability of the manufacturer
€0.90

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Cembre Modular Din Clamp Screw Clamps

They represent an excellent solution for those seeking a durable, safe and easy-to-install product. Thanks to its innovative design and excellent technical characteristics, it is ideal for feed-through circuits, lighting systems, switchboards and electrical distribution in both civil and industrial environments. It ensures quick and safe installation, minimizing the risk of error and maximizing the safety of the electrical system.

Innovative Design for Easier Installation

Innovative body design made of Polyamide 6.6 gives great strength and durability, while reducing the risk of damage caused by daily wear and tear. The universal DIN rail attachment base allows for quick and safe mounting and dismounting of terminal blocks, optimizing installation time and reducing errors during wiring. The universal DIN docking system allows the terminals to be positioned along the rail precisely, ensuring a neat and fast installation.

Ease of Connection and Safety

Equipped with cone-shaped input holes, which facilitate the insertion of conductors into the terminals, improving connection reliability and reducing the risk of damaging wires during installation. CRCA's platelets provide strong and stable clamping, ensuring optimal performance even under electrical and mechanical stress.

Versatility and Compatibility

The TBS clamp is extremely versatile and can be used for a wide range of electrical applications. It is compatible with a variety of conductors:

  • Flexible conductors: cross-section from 0.5 sq. mm to 10 sq. mm

  • Flexible conductors with terminal tube: Cross-section from 0.5 sq. mm to 10 sq. mm

  • Rigid conductors: Cross-section from 0.5 mmq to 16 mmq

Din Cembre Clamp Technical Specifications

Electrical Specifications

Rated Section 10 mmq
Rated Current 57 A
Rated voltage 1000 V
Rated peak voltage 8 kV
Pollution degree 3


Connections and Mechanics

Flexible conductor section 0.5 to 10 sq. mm
Rigid conductor section 0.5 - 16 mmq
Number of connections 2
Number of connections per level 2
Number of levels 1
Length of cable stripping 10 mm
Screw pitch M4
Tightening torque 1.2 Nm


Materials and Environmental Conditions

Insulating body material Polyamide 6.6
Conductor body material CRCA
Operating temperature -60°C TO +130°C
