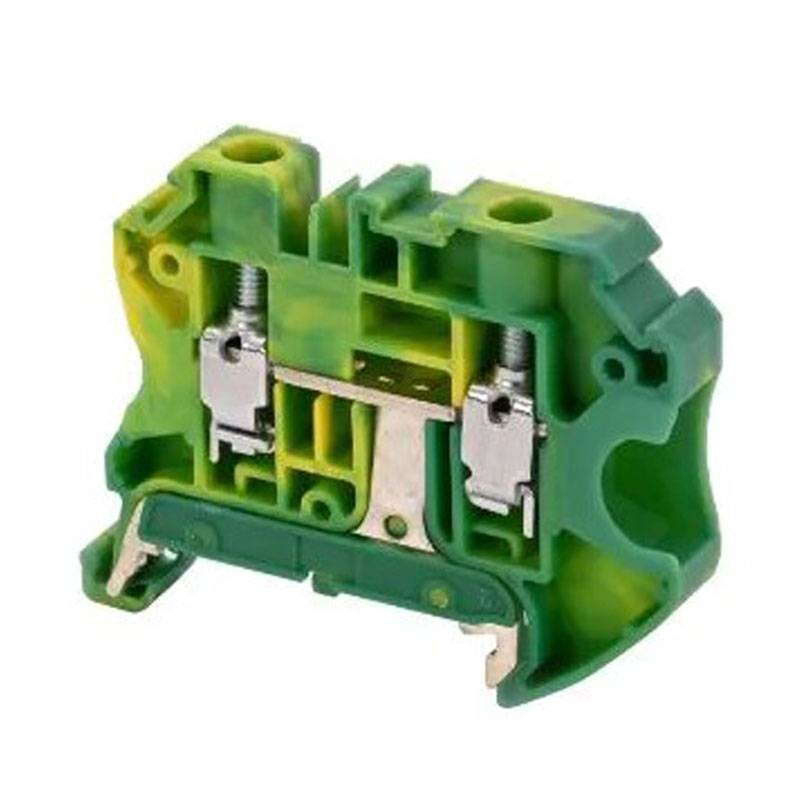

Cembre Din Clamp with Screw Clamp 6 mmq 8 mm TBSG6
CEM TBSG6
8051316085573
Din Cembre clamps for grounding networks are designed to ensure safe and reliable connections in grounding applications, ideal for installation in electrical systems where safe and reliable connections are critical. These terminals offer long life and optimum performance under demanding operating conditions, with the following features:
-
Nominal cross-section: 6 sq. mm.
-
Solid conductor cross -section: 0.2-10 sq. mm.
-
Flexible conductor cross-section: 0.2-6 mmq
-
Number of connections: 2
-
Number of levels: 1
-
Screw pitch: M3.5
-
Cable stripping length: 8 mm
€2.62
Items Available: 329
: 81
Frequently bought together
Component Clamp for Grounding Networks with Screw Clamping
Device designed to ensure safe and reliable connections in grounding applications. Ideal for use in residential, industrial and commercial electrical installations where safe and reliable connections are critical. Robust design and quality materials make it ideal for withstanding mechanical and electrical stress, even in environments with harsh operating conditions.
High Quality Design and Materials
Constructed of Polyamide 6.6, a thermoplastic material that offers high mechanical and thermal properties, as well as good resistance to chemicals and external stresses. This material ensures a long service life, reducing the need for maintenance and increasing the reliability of the grounding system.
Secure and Easy to Install Connection
Thanks to the indirect screw clamping system, the clamp provides a secure and stable connection between conductors. The tightening torque is set at 0.8 Nm to ensure that the clamping is sufficient to maintain good contact without damaging the wires. In addition, the clamp has tapered entry holes, which facilitate the introduction of conductors and ensure optimal connection without compromising the integrity of the wires.
Reliability and Safety
UL certification ensures that the clamps have been tested and comply with international safety standards. This makes the product a safe and reliable choice for installation in high-end electrical systems where protection against short circuits and other electrical issues is essential.
Ease of Use
The design of the clamp facilitates installation due to its 8 mm cable stripping length, which allows for quick and accurate installation. The ability to connect two cables simultaneously makes the clamp versatile, suitable for applications requiring multiple connections in small spaces.
The clamp also offers the ability to connect conductors with cross-sections between 0.14 sq. mm and 6 sq. mm, supporting both flexible and rigid cables, thus ensuring maximum versatility in installations.
Technical Characteristics Din Cembre Clamp
Certifications and Safety
| Certification | UL - compliance with international safety regulations |
| Pollution degree | 3 - suitable for industrial environments |
| Rated peak voltage | 8 kV |
Mechanical and Electrical Characteristics
| Insulating body material | Polyamide 6.6, resistant to high temperatures and chemicals |
| Type of clamping | Indirect screw |
| Rigid conductor cross-section | 0.2 to 10 sq. mm |
| Flexible conductor section | 0.2 - 6 mmq (with or without terminal tube) |
| Nominal cross-section | 6 mmq |
| Number of connections | 2 |
| Number of connections per level | 2 |
| Number of levels | 1 |
| Screw pitch | M3,5 |
| Tightening torque | 0.8 Nm |
| Cable stripping length | 8 mm |
Physical Dimensions
| Width | 8 mm |
| Height | 45.5 mm |
| Length | 58.4 mm |
Environmental Conditions
| Minimum operating temperature | -60°C |
| Maximum operating temperature | 130°C |
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 6mmq
