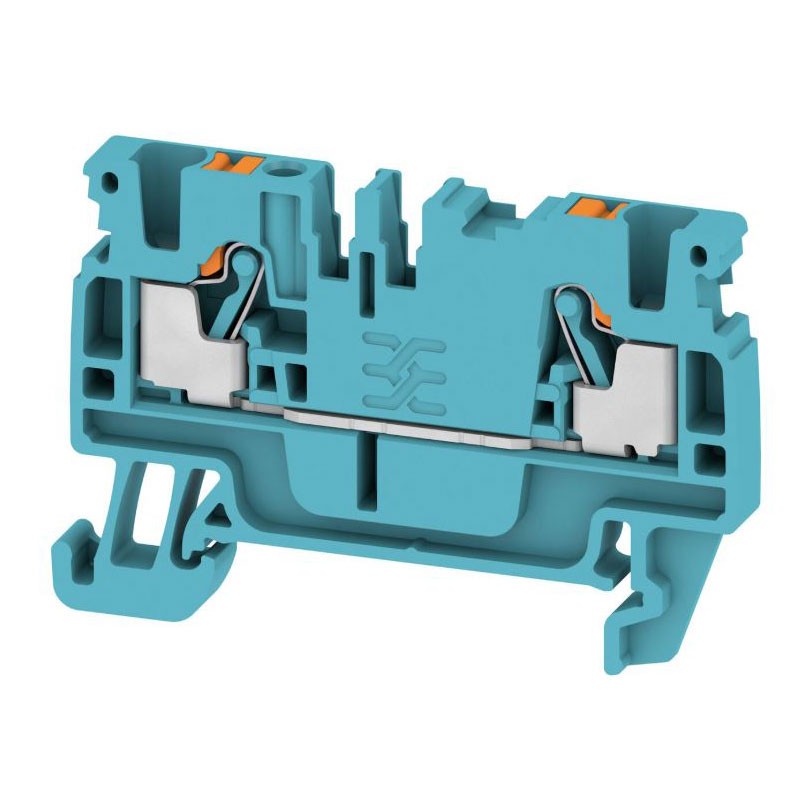

Weidmuller Through Terminal Push-In 2.5 mm² blue
WEI 1521880000
4050118328141
Weidmüller through terminal block Push-In 2.5 mm² blue colour, for DIN rail TS 35. Quick tool-free connection, up to 800 V and 24 A, ideal for reliable and tidy electrical panels:
-
Connection technology: PUSH IN
-
Nominal cross-section: 2.5 mm²
-
Colour: Blue
-
Mounting: DIN rail TS 35
-
Nominal voltage AC/DC: 800 V
-
Nominal current: 24 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid
-
Compliant with RoHS and REACH
-
Stripping length: 10 mm
-
Pollution degree: 3
€0.87
Items Available: 500
Frequently bought together
Weidmuller Push-In Through Terminal, quick and secure connection in electrical panels
The Weidmüller Push-In through terminal 2.5 mm² is designed to ensure reliable, fast, and durable connections in industrial and residential electrical panels. The Push-In technology allows direct insertion of rigid or flexible conductors with terminal, reducing wiring time and improving productivity.
The blue colour makes it ideal for identifying control or neutral circuits (according to wiring conventions), contributing to an orderly and easily maintainable panel.
High electrical performance and regulatory compliance
The terminal is rated for 800 V and 24 A, with an impulse voltage of 8 kV, ensuring safety even in the presence of overvoltages. The low contact resistance (1.33 mΩ) reduces losses and heat dissipation.
It complies with IEC 60947-7-1 standard and is also suitable for applications in critical environments due to its explosion-proof design.
Mechanical reliability and thermal resistance
Made of Wemid with UL 94 V-0 flammability class, the terminal ensures high mechanical and thermal resistance. It supports a wide temperature range, from –60 °C to +130 °C in continuous operation, making it suitable for heavy industrial applications.
| SIZING DATA | |
|---|---|
| Sizing section | 2.5 mm² |
| Nominal voltage | 800 V |
| Nominal DC voltage | 800 V |
| Nominal current | 24 A |
| Current with max. conductor | 24 A |
| Impulse voltage rating | 8 kV |
| Contact resistance | 1.33 mΩ (IEC 60947-7-x) |
| Dissipated power | 0.77 W (IEC 60947-7-x) |
| Overvoltage category | III |
| Pollution degree | 3 |
| Connection type | PUSH-IN |
| GENERAL DATA | |
| Equipped rail | TS 35 |
| Mounting type | TS 35 support rail |
| Fixing type | Pluggable |
| Open side | Right |
| Explosion-proof design | Yes |
| Lockable | No |
| With stop pin | No |
| CONNECTIONS | |
| Section range (min.) | 0.14 mm² |
| Section range (max.) | 4 mm² |
| AWG cable section (min.) | AWG 28 |
| AWG cable section (max.) | AWG 12 |
| Connection direction | From above |
| Stripping length | 10 mm |
| Blade size | 0.6 × 3.5 mm |
| MATERIALS AND COLOURS | |
| Base material | Wemid |
| Colour | Blue |
| Operating elements colour | Orange |
| Flammability class | UL 94 V-0 |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS AND WEIGHT | |
| Width | 5.1 mm |
| Height | 55 mm |
| Depth | 36.5 mm (37 mm with DIN rail) |
| SYSTEM DATA | |
| Terminal plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Clamping points per level | 2 |
| Internally bridged levels | No |
| PE connection | No |
| N function | No |
| PE function | No |
| PEN function | No |
| STANDARDS AND COMPLIANCE | |
| Reference standards | IEC 60947-7-1 |
| Standard gauge | 60 947-1 A3 |
| RoHS compliance | Compliant, without exemption |
| REACH SVHC | No substance > 0.1% by weight |
