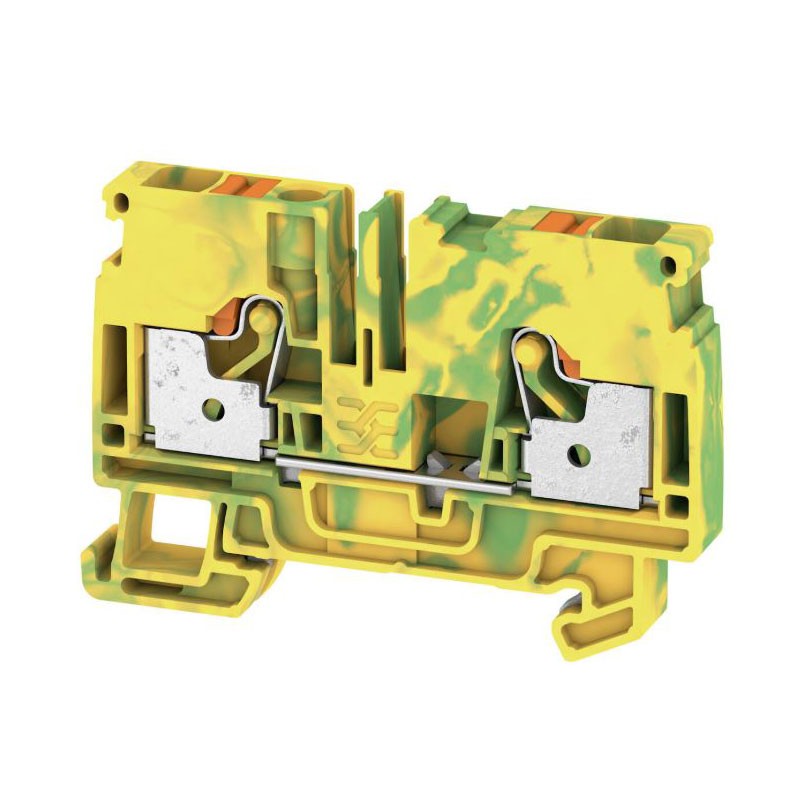

Weidmuller Through Terminal Push-In 6mm² yellow/green
WEI 1991810000
4050118376623
Weidmüller through terminal Push-In 6 mm² yellow/green colour, for DIN rail TS 35, ideal for electrical panels on DIN rail TS35, quick and reliable connections up to 41 Amperes:
-
Connection technology: PUSH IN
-
Nominal cross-section: 6 mm²
-
Colour: green/yellow (orange operating elements)
-
Mounting: DIN rail TS 35
-
Nominal voltage AC/DC: 800 V
-
Nominal current: 41 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid
-
Compliant with RoHS and REACH
-
Stripping length: 12 mm
-
Pollution degree: 3
€4.09
Items Available: 100
Frequently bought together
Weidmuller Through Terminal Block, quick and secure connection with Push-In technology
The Weidmüller A2C 6 PE through terminal block uses Push-In technology, allowing fast and tool-free wiring for rigid and flexible conductors with ferrules. This reduces installation time and ensures a stable and durable contact even in the presence of vibrations.
Designed according to IEC 60947-7-1, it is suitable for industrial electrical panels where high electrical performance and operational safety are required.
High electrical performance
With a rated current of 41 A and rated voltage of 800 V (AC/DC), the terminal block is suitable for medium-high power applications. The impulse voltage of 8 kV, overvoltage category III, and pollution degree 3 allow its use in demanding industrial environments.
The low volume resistance (0.78 mΩ) helps reduce losses and heating.
Conductor compatibility and ease of installation
The plug-in mounting on TS35 and the top connection direction make wiring neat and accessible. Terminal plate required.
Supports a wide range of sections: AWG: from 22 to 8, Clamping range: 0.34 – 10 mm², Flexible: up to 6 mm², Stripping length: 12 mm.
| General Data | |
|---|---|
| Type | A2C 6 PE |
| Version | PUSH IN, 6 mm² |
| Colour | Yellow / Green |
| DIMENSIONS AND WEIGHT | |
| Width | 8.1 mm |
| Height | 66.5 mm |
| Depth | 45.5 mm (46 mm with DIN rail) |
| Net weight | 18 grams |
| SIZING DATA | |
| Sizing section | 6 mm² |
| Rated DC voltage | 800 V |
| Sizing impulse voltage | 8 kV |
| Overvoltage class | III |
| Pollution degree | 3 |
| Contact resistance | 0.78 mΩ (IEC 60947-7-x) |
| Dissipated power | 0 Watt |
| CONNECTIONS | |
| Connection type | PUSH IN |
| Number of connections | 2 |
| Section range (min.) | 0.34 mm² |
| Section range (max.) | 10 mm² |
| AWG cable section (min.) | AWG 22 |
| AWG cable section (max.) | AWG 8 |
| Connection direction | Top |
| Stripping length | 12 mm |
| Blade size | 1.0 × 5.5 mm |
| MATERIALS AND COLOURS | |
| Base material | Wemid |
| Operating element colour | Orange |
| Flammability class | UL 94 V-0 |
| MOUNTING AND SYSTEM | |
| Equipped rail | TS 35 |
| Mounting type | TS 35 support rail |
| Fixing type | Plug-in |
| Terminal plate required | Yes |
| PE connection | Yes |
| N function | No |
| PE function | Yes |
| PEN function | No |
| Explosion-proof design | Yes |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| CERTIFICATIONS AND COMPLIANCE | |
| RoHS | Compliant, without exemption |
| REACH SVHC | No substance > 0.1% by weight |
| UL (cURus) | E60693 |
| UL EX (cURusEX) | E184763 |
| ATEX | TÜV 16 ATEX 7909 U |
| IECEx | IECEx TUR 16.0036 U |
| Ex marking | II 2 G D – Ex eb IIC Gb |
| CLASSIFICATIONS | |
| ETIM | EC000901 (v8 / v9 / v10) |
| ECLASS | 27-25-01-03 (v14 / v15) |
