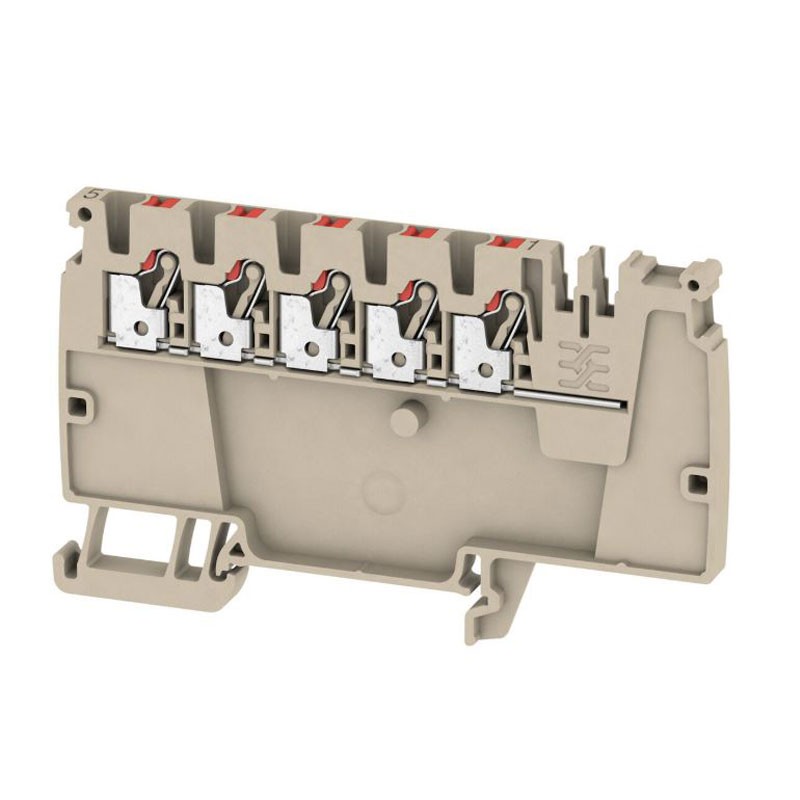

Weidmuller Terminal block Push-In 2.5mm² beige
WEI 1988290000
4050118372779
Weidmüller Terminal AAP12 2.5 LI RD Push-In 2.5 mm², dark beige colour, for DIN TS35 rail, compliant with IEC 60947-7-1:
-
Nominal cross-section: 2.5 mm²
-
Nominal voltage 800 V AC/DC
-
Nominal current 24 Amperes
-
Insulating body in Wemid UL94 V-0
-
Dark beige AL / LI colour with red operation
-
Compliant with RoHS and REACH
-
Explosion-proof design
-
Compliant with IEC 60947-7-1, RoHS and REACH
-
Push-In technology for quick and secure wiring
€3.15
Items Available: 300
: 90
Frequently bought together
Weidmuller Push-In Terminal, quick and efficient connection in electrical panels
The Weidmüller AAP12 2.5 LI RD Push-In terminal is designed for distribution, control, and signaling applications within industrial electrical panels and automation systems. The Push-In technology allows direct insertion of the conductor without the use of tools, significantly reducing wiring time and increasing productivity during installation.
This solution also ensures a stable and vibration-resistant connection, a fundamental feature in industrial plants where reliability and service continuity are essential requirements.
Reliable electrical performance
With a sizing section of 2.5 mm², the terminal supports a rated current up to 24 A and a rated voltage of 800 V, making it suitable for numerous power and control applications.
The impulse voltage of 8 kV, combined with overvoltage category III and pollution degree 3, ensures safe operation even in complex industrial environments subject to electrical disturbances. The contact resistance of 1.33 mΩ and the low dissipated power (0.77 W) help reduce energy losses and maintain optimal thermal behavior over time.
Safe materials and regulatory compliance
The insulating body is made of Wemid, a high-performance technical material with UL 94 V-0 flammability class, ensuring high safety standards against fire risk.
The terminal is RoHS compliant without exemptions and REACH compliant, free of SVHC substances above 0.1%, and is suitable for explosion-proof installations, making it usable even in industrial contexts with advanced safety requirements.
The contact resistance of 1.33 mΩ and the low dissipated power (0.77 W) help reduce energy losses and maintain optimal thermal behavior over time.
Compact and functional
Thanks to the reduced width of 5.1 mm and the pluggable mounting on DIN rail TS35, the AAP12 2.5 LI RD terminal allows for tidy wiring and efficient use of space within the electrical panel. The dark beige color with red operation facilitates visual identification of circuits.
| SIZING DATA | |
|---|---|
| Sizing section | 2.5 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 24 A |
| Current with max. conductor | 24 A |
| Reference standards | IEC 60947-7-1 |
| Contact resistance | 1.33 mΩ (IEC 60947-7-x) |
| Impulse voltage rating | 8 kV |
| Dissipated power | 0.77 W (IEC 60947-7-x) |
| Overvoltage category | III |
| Pollution degree | 3 |
| GENERAL DATA | |
| Equipped rail | TS 35 |
| Mounting instructions | Support rail |
| Base material | Wemid |
| Color | Dark beige |
| Color of operating elements | Red |
| Flammability class | UL 94 V-0 |
| CONNECTIONS | |
| Cable connection section AWG (min.) | AWG 28 |
| Cable connection section AWG (max.) | AWG 12 |
| Connection type | PUSH IN |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS AND WEIGHT | |
| Depth | 53.5 mm |
| Depth with DIN rail | 54 mm |
| Vertical position | 89 mm |
| Width | 5.1 mm |
| Net weight | 0.024 g |
| OTHER TECHNICAL DATA | |
| Lockable | No |
| Stop pin | No |
| Explosion-proof design | Yes |
| Open sides | Right |
| Mounting type | Pluggable |
| Installation type | TS 35 rail |
| COMPLIANCE | |
| RoHS | Compliant, without exemption |
| REACH SVHC | No substance > 0.1% by weight |
