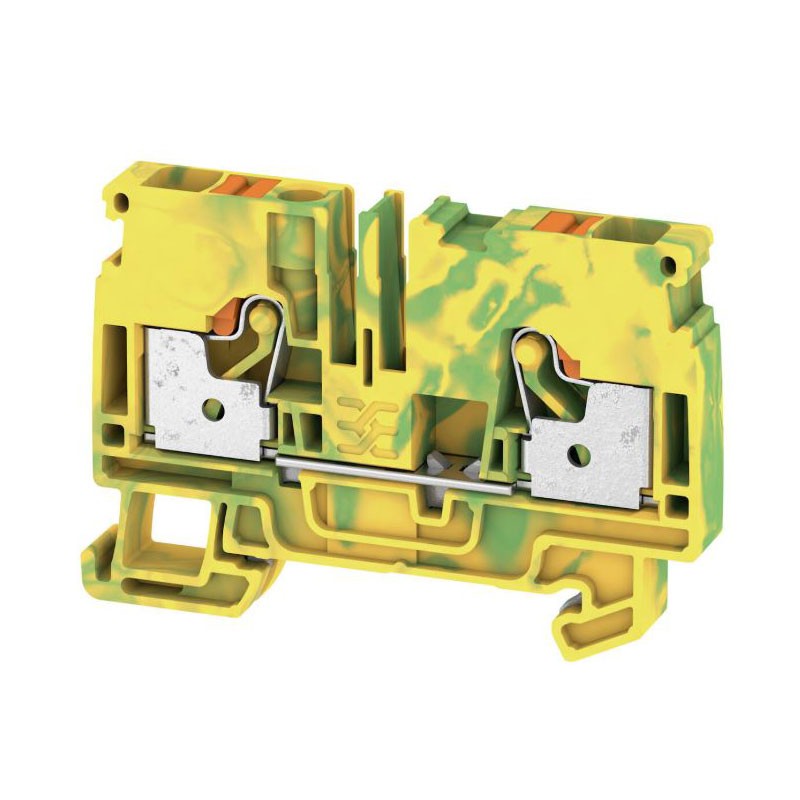

Through terminal block Weidmuller Push-In 6mm² yellow/green
WEI 1991810000
4050118376623
Weidmüller through terminal block Push-In 6 mm² colour yellow/green, for DIN rail TS 35, ideal for electrical panels on DIN rail TS35, quick and reliable connections up to 41 Amperes:
-
Connection technology: PUSH IN
-
Nominal cross-section: 6 mm²
-
Colour: green/yellow (orange operating elements)
-
Mounting: DIN rail TS 35
-
Nominal voltage AC/DC: 800 V
-
Nominal current: 41 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid
-
Compliant with RoHS and REACH
-
Stripping length: 12 mm
-
Pollution degree: 3
€4.09
Items Available: 130
: 90
Frequently bought together
Weidmuller Through Terminal, quick and secure connection with Push-In technology
The Weidmüller A2C 6 PE through terminal uses Push-In technology, allowing fast and tool-free wiring for rigid and flexible conductors with ferrule. This reduces installation time and ensures a stable and long-lasting contact even in the presence of vibrations.
Designed according to IEC 60947-7-1, it is suitable for industrial electrical panels where high electrical performance and operational safety are required.
High electrical performance
With a rated current of 41 A and rated voltage of 800 V (AC/DC), the terminal is suitable for medium-high power applications. The impulse voltage of 8 kV, overvoltage category III, and pollution degree 3 allow its use in demanding industrial environments.
The low volume resistance (0.78 mΩ) helps reduce losses and heating.
Conductor compatibility and ease of installation
The pluggable mounting on TS35 and the top connection direction make wiring neat and accessible. Terminal plate required.
Supports a wide range of sections: AWG: from 22 to 8, Clamping range: 0.34 – 10 mm², Flexible: up to 6 mm², Stripping length: 12 mm.
| General Data | |
|---|---|
| Type | A2C 6 PE |
| Version | PUSH IN, 6 mmq |
| Colour | Yellow / Green |
| DIMENSIONS AND WEIGHT | |
| Width | 8.1 mm |
| Height | 66.5 mm |
| Depth | 45.5 mm (46 mm with DIN rail) |
| Net weight | 18 grams |
| SIZING DATA | |
| Sizing section | 6 mm² |
| Rated DC voltage | 800 V |
| Sizing impulse voltage | 8 kV |
| Overvoltage class | III |
| Pollution degree | 3 |
| Contact resistance | 0.78 mΩ (IEC 60947-7-x) |
| Dissipated power | 0 Watt |
| CONNECTIONS | |
| Connection type | PUSH IN |
| Number of connections | 2 |
| Section range (min.) | 0.34 mm² |
| Section range (max.) | 10 mm² |
| AWG cable section (min.) | AWG 22 |
| AWG cable section (max.) | AWG 8 |
| Connection direction | Top |
| Stripping length | 12 mm |
| Blade size | 1.0 × 5.5 mm |
| MATERIALS AND COLOURS | |
| Base material | Wemid |
| Operating elements colour | Orange |
| Flammability class | UL 94 V-0 |
| MOUNTING AND SYSTEM | |
| Equipped guide | TS 35 |
| Mounting type | TS 35 support rail |
| Fixing type | Pluggable |
| Terminal plate required | Yes |
| PE connection | Yes |
| N function | No |
| PE function | Yes |
| PEN function | No |
| Explosion-proof design | Yes |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| CERTIFICATIONS AND COMPLIANCE | |
| RoHS | Compliant, without exemption |
| REACH SVHC | No substance > 0.1% by weight |
| UL (cURus) | E60693 |
| UL EX (cURusEX) | E184763 |
| ATEX | TÜV 16 ATEX 7909 U |
| IECEx | IECEx TUR 16.0036 U |
| Ex marking | II 2 G D – Ex eb IIC Gb |
| CLASSIFICATIONS | |
| ETIM | EC000901 (v8 / v9 / v10) |
| ECLASS | 27-25-01-03 (v14 / v15) |
