Weidmuller Terminal block Push-In 16mm² beige
WEI 2494000000
4050118504019

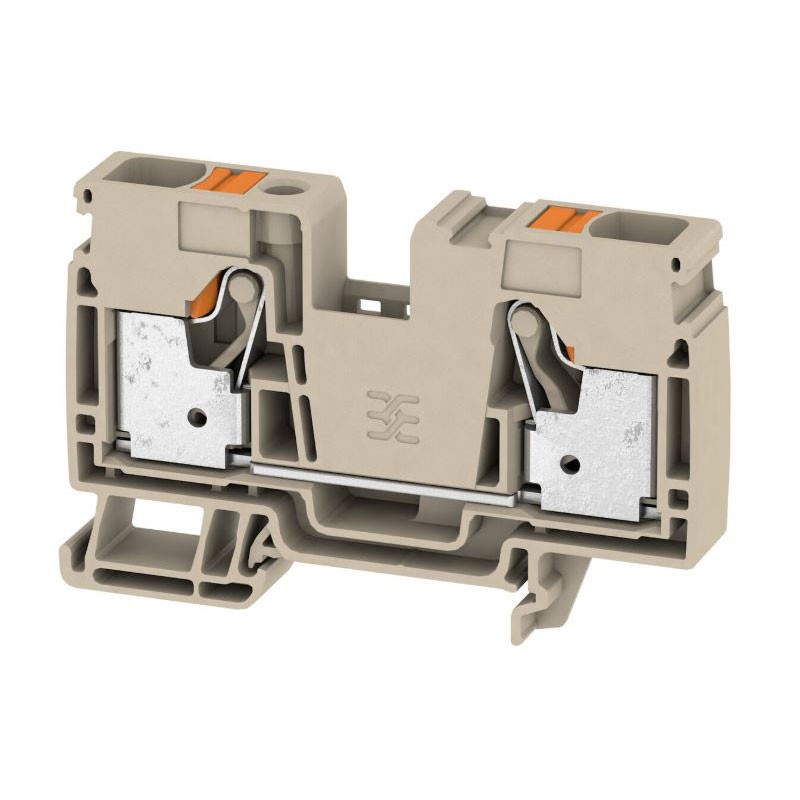

Weidmüller through terminal A2C 16 PE Push-In 16 mm², beige colour, for DIN rail TS35, compliant with IEC 60947-7-1:
-
Type A2C 16 PE through PE (earth) Push-In
-
Nominal cross-section: 16 mm²
-
Body colour: dark beige, with orange operating buttons
-
Mounting: DIN rail TS 35
-
Nominal voltage 1000 V AC/DC
-
Nominal current: 76 Amperes
-
Flammability class: UL 94 V-0
-
Material: Wemid UL94 V-0
-
Compliant with IEC 60947-7-1, RoHS and REACH
-
Dimensions (LxHxW): 10 × 80.5 × 51.5 mm
-
Dissipated power 2.43 Watts
€2.29
Items Available: 157
: 90
Frequently bought together
Weidmuller Through Terminal Push-In, reliable and quick power connections
The Weidmüller A2C 16 PE Push-In through terminal is designed for applications requiring high currents and maximum reliability, such as power panels, electrical distribution, and complex industrial plants. The Push-In technology allows direct insertion of rigid or flexible conductors with ferrule, without the use of tools, significantly reducing wiring times and improving installation safety.
This solution ensures a stable, vibration-resistant, and long-lasting connection, even under harsh operating conditions.
Electrical performance for industrial applications
With a sizing section of 16 mm², the terminal supports a rated current up to 76 A and a rated voltage of 1000 V, making it ideal for high-power distribution and supply circuits.
The impulse voltage rating of 8 kV, combined with overvoltage category III and pollution degree 3, ensures high electrical safety even in industrial environments with high electrical stress. The low contact resistance (0.42 mΩ) and contained dissipated power (2.43 W) help reduce energy losses and panel overheating.
Safe materials and regulatory compliance
The insulating body in Wemid, with flammability class UL 94 V-0, guarantees high thermal and mechanical resistance. The terminal is RoHS compliant without exemptions and REACH, free of SVHC substances over 0.1%, making it suitable for installations that must comply with the strictest European environmental regulations.
The terminal plate is provided, necessary for correct end-of-row mounting on DIN rail.
Despite the high current capacity, the terminal maintains optimized dimensions (width 12 mm), allowing for an orderly arrangement of components on the panel. The plug-in mounting on TS35 DIN rail ensures quick installation and long-term stability.
| ELECTRICAL DATA | |
|---|---|
| Sizing section | 16 mm² |
| Rated voltage | 1000 V |
| Rated DC voltage | 1000 V |
| Rated current | 76 A |
| Current with max. conductor | 76 A |
| Reference standards | IEC 60947-7-1 |
| Contact resistance | 0.42 mΩ (IEC 60947-7-x) |
| Impulse voltage rating | 8 kV |
| Dissipated power | 2.43 W (IEC 60947-7-x) |
| Overvoltage category | III |
| Pollution degree | 3 |
| GENERAL DATA | |
| Base material | Wemid |
| Colour | Dark beige |
| Operating elements colour | Orange |
| Flammability class | UL 94 V-0 |
| Equipped guide | TS 35 |
| Mounting instructions | Support guide |
| CONNECTIONS | |
| AWG cable section (min.) | AWG 18 |
| AWG cable section (max.) | AWG 6 |
| Number of clamping points | 2 |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS AND WEIGHT | |
| Width | 12 mm |
| Height | 80.5 mm |
| Depth | 51.5 mm (52.5 mm with DIN rail) |
| Net weight | 0.036 g |
| SYSTEM DATA AND COMPLIANCE | |
| Terminal plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Clamping points per level | 2 |
| Internally bridged levels | No |
| RoHS | Compliant, without exemption |
| REACH SVHC | No substances > 0.1% by weight |
