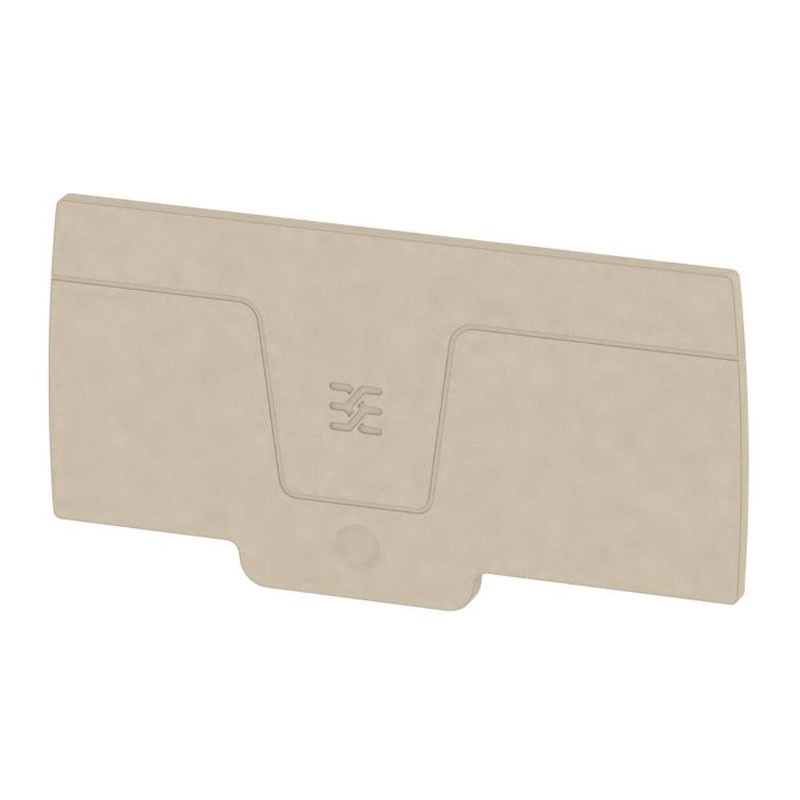

Weidmuller Terminal plate for AAP series terminals
WEI 1988300000
4050118372786
Weidmüller end plate AEP AP12 for AAP series terminals, safe and lockable for DIN rails, made of Wemid UL94 V-0:
-
End row terminal function
-
Lockable with stop pin
-
Insulating material Wemid
-
Flammability class UL 94 V-0
-
Dark beige colour
-
RoHS and REACH compliant
-
Flammability class: UL 94 V-0
-
Dimensions (LxHxD): 2.4 × 87.2 × 46.09 mm
-
Compliance: RoHS, REACH
-
Storage temperature: –25 °C … +55 °C
-
Continuous operating temperature: –60 °C … +130 °C
€0.61
Items Available: 160
: 36
Frequently bought together
Terminal plate Weidmuller, an essential accessory for orderly and safe electrical panels
The Weidmüller AEP AP12 terminal plate is a fundamental accessory for the correct realization of AAP series terminal blocks. It is installed as an end-of-row closure element, ensuring order, mechanical safety, and electrical insulation within the panel.
Its use allows for the completion of the installation according to good industrial wiring practices, avoiding accidental contacts and improving the overall stability of the terminal block on the DIN rail.
Mechanical stability and secure fastening
The AEP AP12 plate is lockable and equipped with a stop pin, features that ensure stable and lasting fastening even in the presence of vibrations or mechanical stresses. This makes it particularly suitable for industrial electrical panels, automation systems, and electrical distribution systems installed in harsh environments.
The extremely low contact resistance (0.26 mΩ) ensures effective grounding, while the dissipated power of 0 W contributes to optimal thermal behavior even in continuous operation. The overvoltage category III and pollution degree 3 guarantee reliability in harsh industrial environments. The DIN rail mounting is simple and quick, perfectly integrated with the AAP series terminals.
Quality materials and high-temperature resistance
The insulating body in Wemid offers excellent mechanical, thermal, and chemical resistance. The UL 94 V-0 class ensures high fire safety standards. The terminal is RoHS compliant without exemptions and REACH, free of SVHC over 0.1%, and is suitable for explosion-proof installations, making it suitable for environments with high safety requirements. The terminal plate is not necessary, further simplifying installation.
Made of Wemid, a high-performance technical plastic material, the terminal plate guarantees excellent mechanical, thermal, and chemical resistance. The UL 94 V-0 flammability class ensures a high level of safety against flame propagation, an essential requirement in professional electrical panels.
It is designed to operate over a wide temperature range, maintaining its characteristics unchanged even under severe operating conditions.
Regulatory compliance and environmental safety
The Weidmüller AEP AP12 terminal plate is RoHS compliant without exemptions and REACH, resulting in no SVHC substances over 0.1%. This makes it suitable for installations that require compliance with the strictest environmental and safety regulations, both in industrial and tertiary sectors.
| GENERAL DATA | |
|---|---|
| Version | Terminal |
| Lockable | Yes |
| With stop pin | Yes |
| Base material | Wemid |
| Colour | Dark beige |
| Flammability class | UL 94 V-0 |
| ENVIRONMENTAL COMPLIANCE | |
| RoHS | Compliant |
| RoHS compliance status | Compliant without exemption |
| REACH SVHC | No substances > 0.1 wt% |
| TEMPERATURES | |
| Storage temperature | -25 °C … +55 °C |
| Ambient temperature | -5 °C … +40 °C |
| Continuous operating temperature (min.) | -60 °C |
| Continuous operating temperature (max.) | +130 °C |
| DIMENSIONS AND WEIGHT | |
| Depth | 46.09 mm |
| Vertical position | 87.2 mm |
| Width | 2.4 mm |
| Weight | 5 g |
There are no reviews
Data sheet
- Type: Plates
