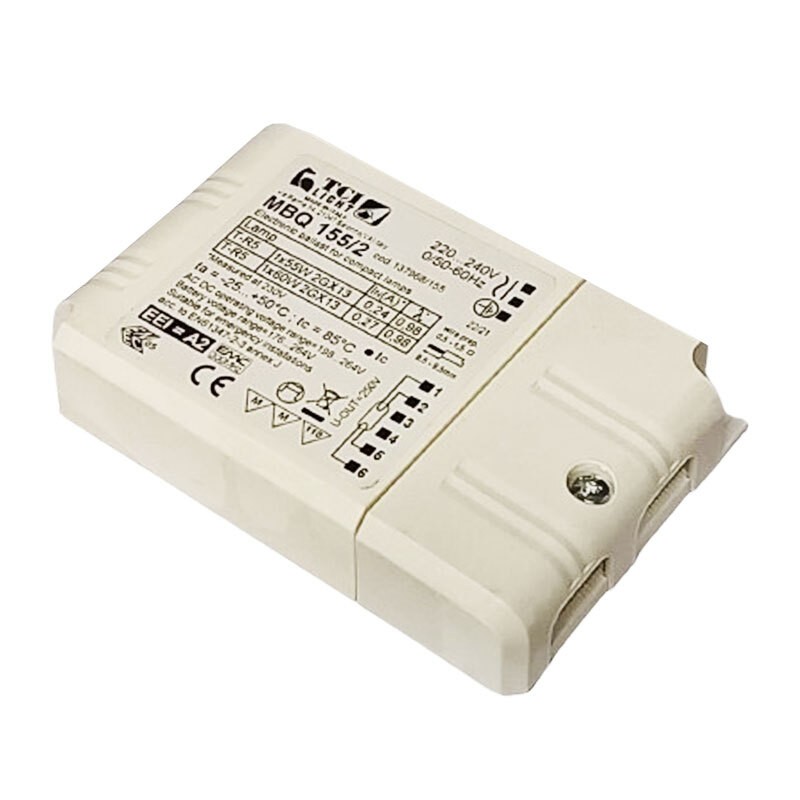

Mini electronic multi-lamp ballast TCI 55/60W 137968/155
TCI 137968/155
TCI multi-power mini electronic ballast for independent use with the following characteristics:
- Power: 55/60 Watt
- Shank: 2GX13
- For T-R5 lamps
- For indoor use IP20

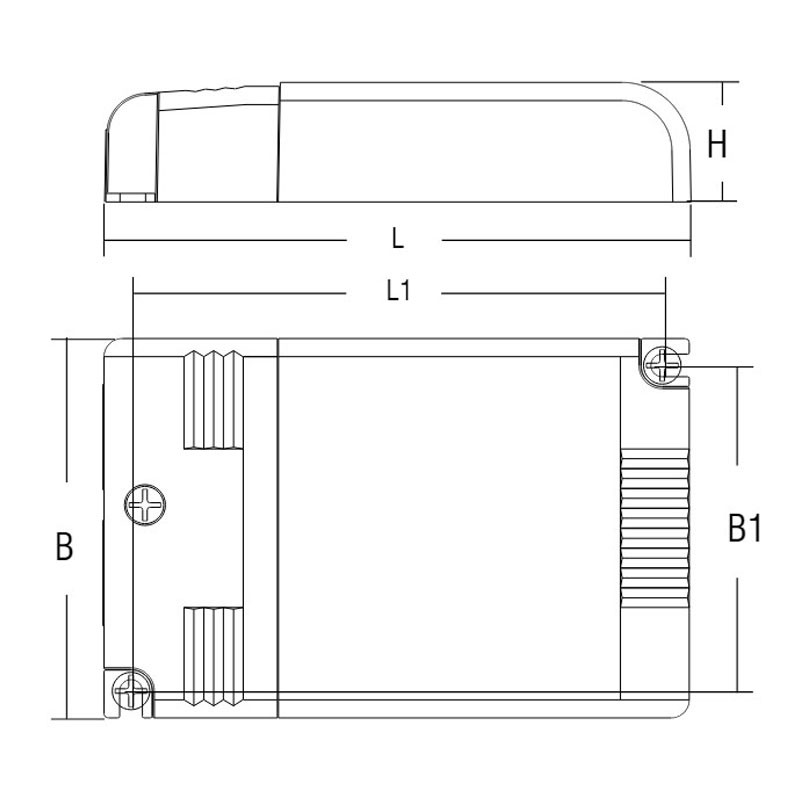

- Dimensions: 103x93.5x67x57.5x21 mm (L-L1-B-B1)
- Energy Efficiency (EEI=A2)
Mini electronic multi-lamp ballast TCI 55/60W 137968/155
€25.82
€25.82
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Features:
- IP20 independent electronic ballast for indoor use
- Can be used for luminaires in protection class II
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Ignition with preheating to increase lamp life
- Quick-connect terminals (conductor cross-section 0.5÷1.5 mm2)
- Supplied with terminal cover, suitable for fixing H03VVH2-F H05VVH2-F cables, essential for independent use
- Fixing of the power supply via screw slots
- Protections: extra mains voltage; lamp disconnection (restrike with preheating); failed lamp; counter partial rectification (EOL T.2), according to EN 61347-2-3 (par. 17.3); end-of-life lamp
- Energy Efficiency (EEI=A2)
There are no reviews
Data sheet
- Type:
- Electronic ballasts
