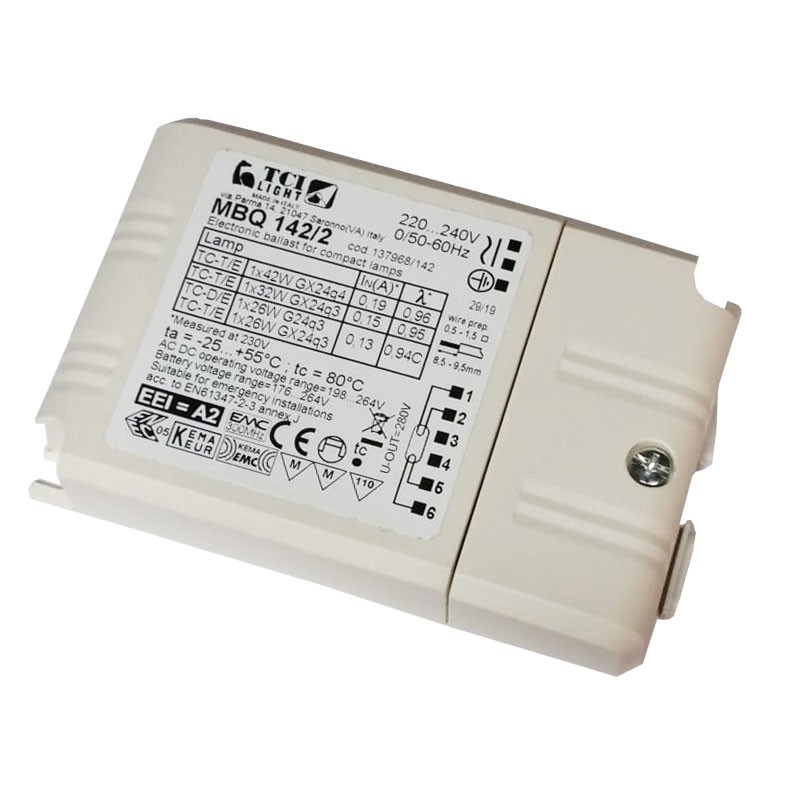

Mini electronic ballast TCI MBQ 142/2 1X26-32-42 137968/142
TCI 137968/142
8010703150751
Mini electronic ballast Tci Led MBQ 142/2 multi-lamp - multipower for independent use, with the following features:
- Power supply: 220/240V
- Frequency: 0/50...60 Hz

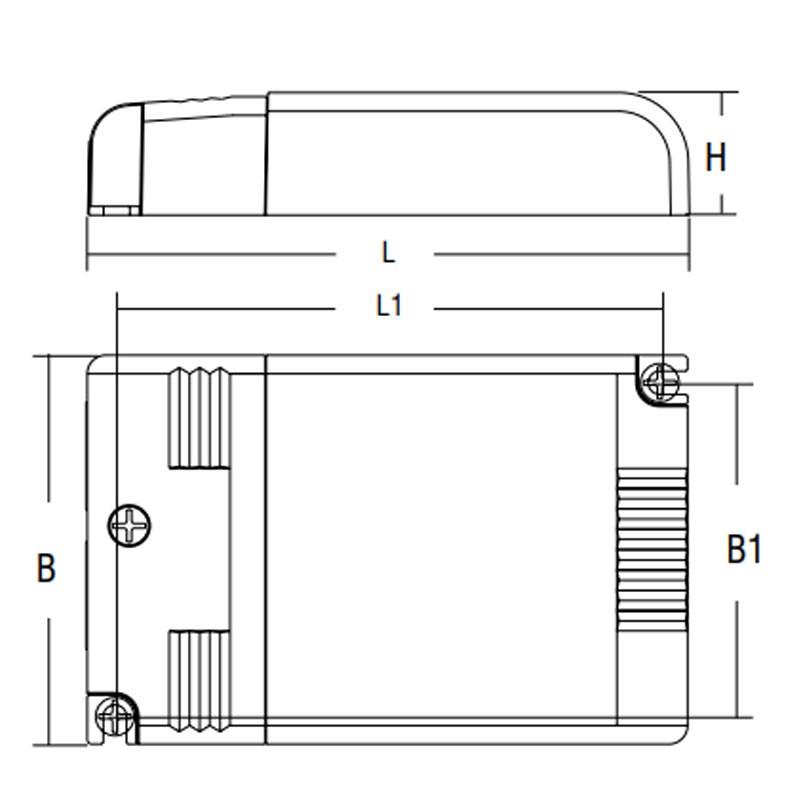

- Dimensions: L 103 - L1 93.5 - B 67 - B1 57.5 - H21
- Power/consumption: 21x26 1x26-32 1x42 watts
- Lamps: TC-D/E TC-T/E TC-T/E
- Cap attachment: G24q-3, GX24q-3, GX24q-4
- Power factor: 0.96
- TA: -25/+55°C
- TC: +80°C
- Weight: 115 grams
Mini electronic ballast TCI MBQ 142/2 1X26-32-42 137968/142
€13.73
€13.73
Tax included
Tax included
Pay in installments with Klarna
Items Available: 41
Advantages:
- IP20 independent electronic ballast for indoor use.
- Can be used for luminaires in protection class II.
- Suitable for connection with emergency luminaires according to EN 60598-2-22.
- Ignition with preheating to increase lamp life.
- Quick-connect terminals (conductor cross-section 0.5÷1.5 mm2.
- Supplied with terminal cover, suitable for fixing H03VVH2-F H05VVH2-F cables, essential for independent use.
- Fixing of the power supply via screw slots
Protections:
- Extra mains voltage
- Disconnection of lamp a (restrike with preheating)
- Failed lamp
- Partial counter rectification (EOL T.2), according to EN 61347-2-3 (par. 17.3);
- Lamp end-of-life
- Energy efficiency (EEI=A2)
Reference Standards:
- EN 55015
- EN 60598-2-22
- EN 60929
- EN 61000-3-2
- EN 61347-2-3
- EN 61547
- VDE 0710-T14
There are no reviews
Data sheet
- Type:
- Electronic ballasts
