TCI linear multi-lamp electronic ballast 1X18 137994/118H
TCI 137994/118H
8010703151772
TCI BTL 118 linear multi-lamp/multi-power electronic ballast, with the following characteristics:
- Rated voltage: 200/240V
- Rated frequency: 0/50...60 Hz
- Power/consumption: 1X18W
- Lamps: T8
- CAP connection: G13

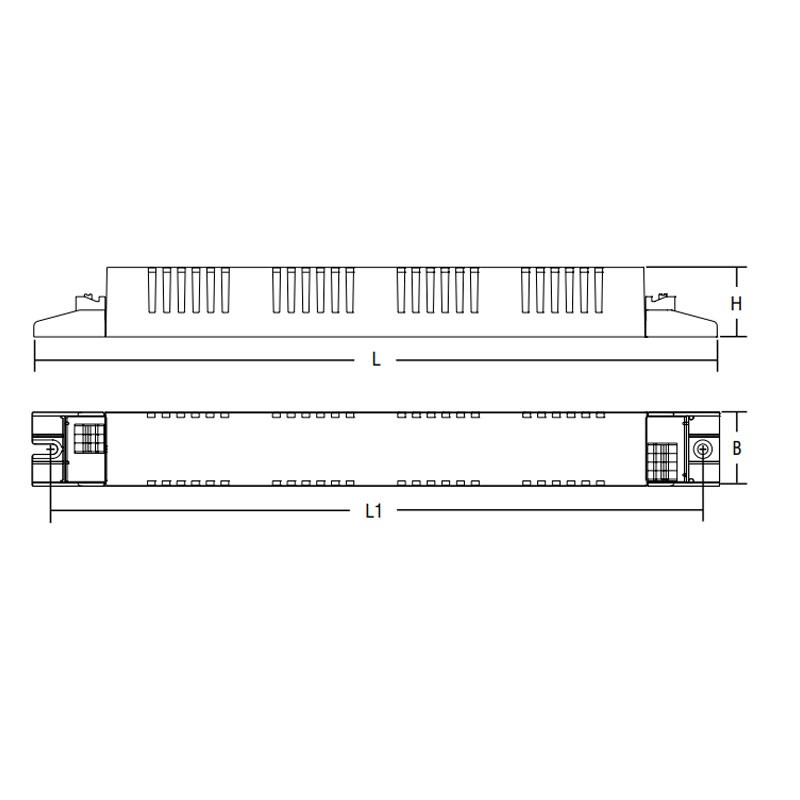

- Dimensions in mm: W 280, L1 265, B 30, H 29
- Power factor: 0.97
- Ta: -25/+60°C
- Tc: +75°C
- Net weight: 150 grams
![](https://www.elettronew.com/54045-large_default/electronic-ballast-tci-linear-multilamp-1x18-137994-118h.jpg)
TCI linear multi-lamp electronic ballast 1X18 137994/118H
€12.20
€12.20
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 16
Advantages:
- Electronic ballast to be incorporated
- Can be used for luminaires in protection class I and II
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Quick-connect terminals
- Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2 )
- Fixing of the power supply via screw slots
- Ignition with preheating for long lamp life
Protections:
- Extra mains voltage
- Lamp disconnection
- Failed lamp
- Lamp end-of-life
Data sheet
- Type:
- Electronic ballasts
