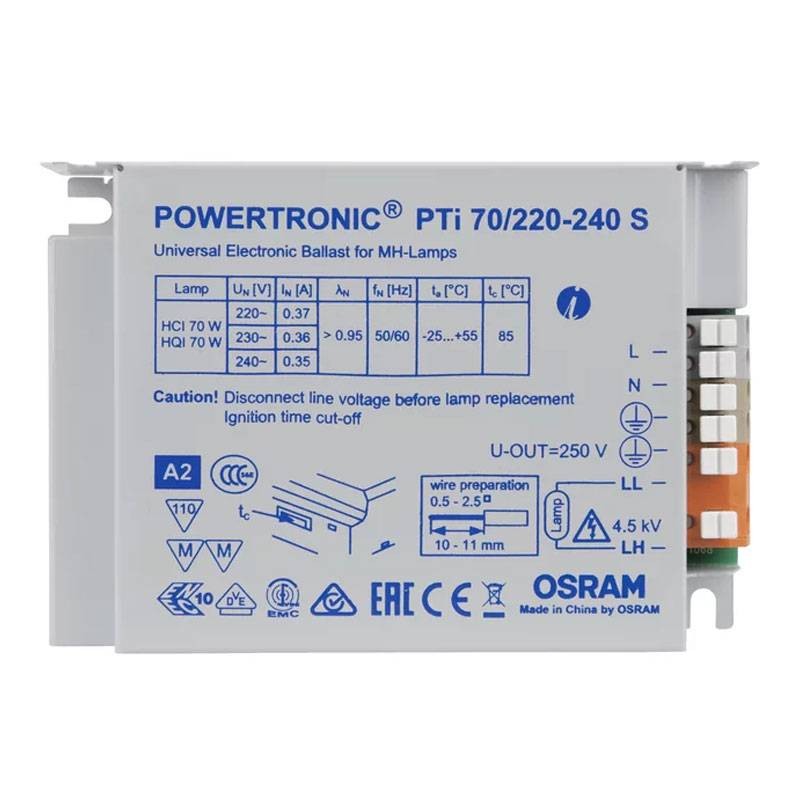

Ledvance Osram Pti JM Electronic Ballast 70W 220/240V PTI70S

Osram
Osram
LDV PTI70S 4008321049629

Ledvance Osram PTi electronic ballast is designed for high performance and reliability, even in harsh thermal conditions. With its compact and lightweight design, it is ideal for lighting projects requiring small components, with the following features:

  • Power: 70 watts

  • Rated voltage: 220/240 V

  • Output voltage: 250 V

  • Degree of protection: IP20

  • Safety shutdown: automatically turns off lamps in case of defects or at end of life

  • Long life: designed to withstand maximum allowable operating temperatures

  • non dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Ledvance Osram Pti JM Electronic Ballast 70W 220/240V PTI70S
    €64.71
    €64.71

    €64.71
    Tax included
    Calculate shipping cost
    Items Available: 8
    Further availability of the manufacturer
    €64.71

    Buy it within and receive it from Wednesday, 24 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Ledvance Osram Pti JM Electronic Ballast 70W 220/240V

    Advanced Features for Maximum Performance.

    Designed to ensure optimal operation under heavy-duty conditions. With its energy efficiency and compliance certifications, it is a reliable solution for professional lighting. The ability to withstand high operating temperatures and an automatic shutdown system in case of failure ensure enhanced safety and longevity.

    Versatile Applications

    This electronic ballast is suitable for a wide range of uses, including:

    • Store lighting: perfect for creating eye-catching lighting environments

    • Health and fitness areas: compatible with fixtures rated IP66 or higher

    • Accent and effect lighting: ideal for emphasizing architectural or decorative details

    Safety and Installation Tips

    For safe and durable installation:

    • Ensure that the temperature at the measuring point t c does not exceed the maximum value indicated

    • Disconnect the luminaire from the mains before replacing the lamp

    • Maintain a minimum distance of 4 mm between conductive materials and terminal clamp terminals

    • Installation should only be carried out by qualified personnel

    Technical Characteristics

    Features Specifications
    Power 70 watts
    Rated voltage 220/240 V
    Output voltage 250 V
    Input voltage 198/264 V
    Trigger current 45 A
    Frequency 50/60 Hz
    Power factor (λ) 0,95
    Cable cross-section, input side 0.5/2.5 sq. mm
    Cross-section of cables, output side 0.5/2.5 sq. mm
    Ambient temperature -25/+65 °C
    Dimmable No
    Degree of protection IP20
    Energy efficiency class A2

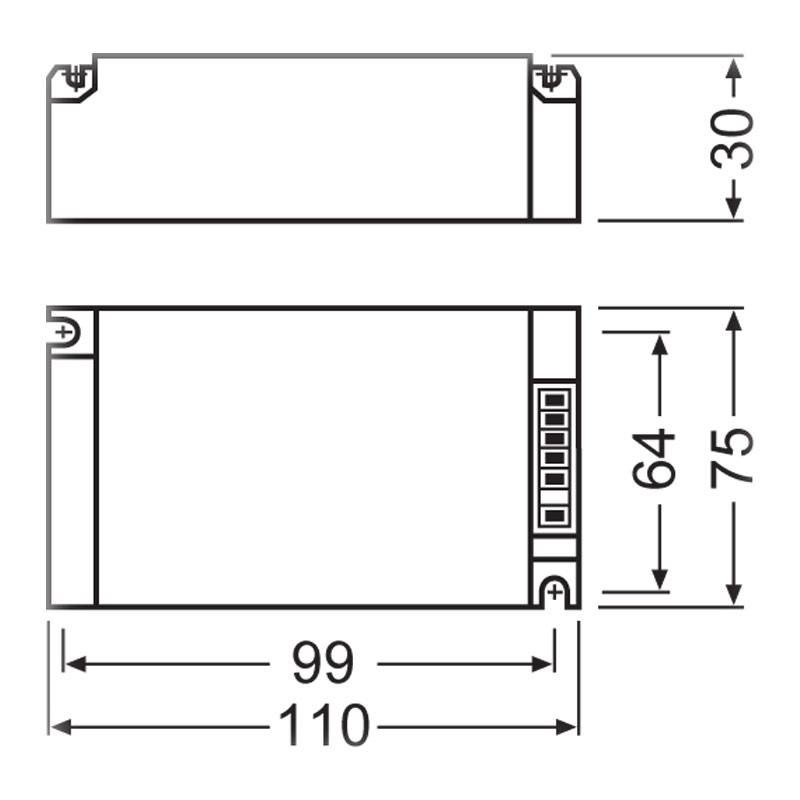

    Length 110 mm
    Width 75 mm
    Height 30 mm
