Philips Ballast for HQL/JM Lamps 250W 240V 50HZ BHL250K307
PHL BHL250K307
8727900887013

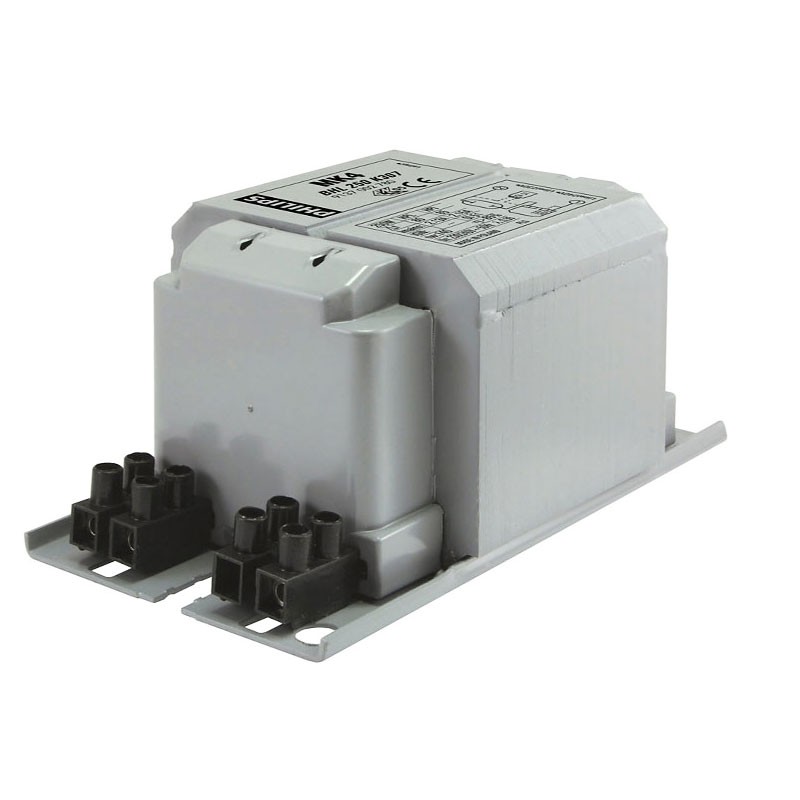

Philips copper-impregnated ballast for HPL, HPI (Plus) and SON-H lamps, with the following characteristics:
- Input voltage 230V (default) or 240V
- Input frequency 50 Hz
- 100% load power factor (Nom) 0.85
- Line voltage performance (AC) -8%-+6%
- Line voltage safety (AC) -10%-+10%
- Input current with power factor correction 1.40A
- Input current without power factor correction 2.13A
- Power factor without power factor correction (Nom) 0.55
- Power losses (Nom) 18.5/19.4W

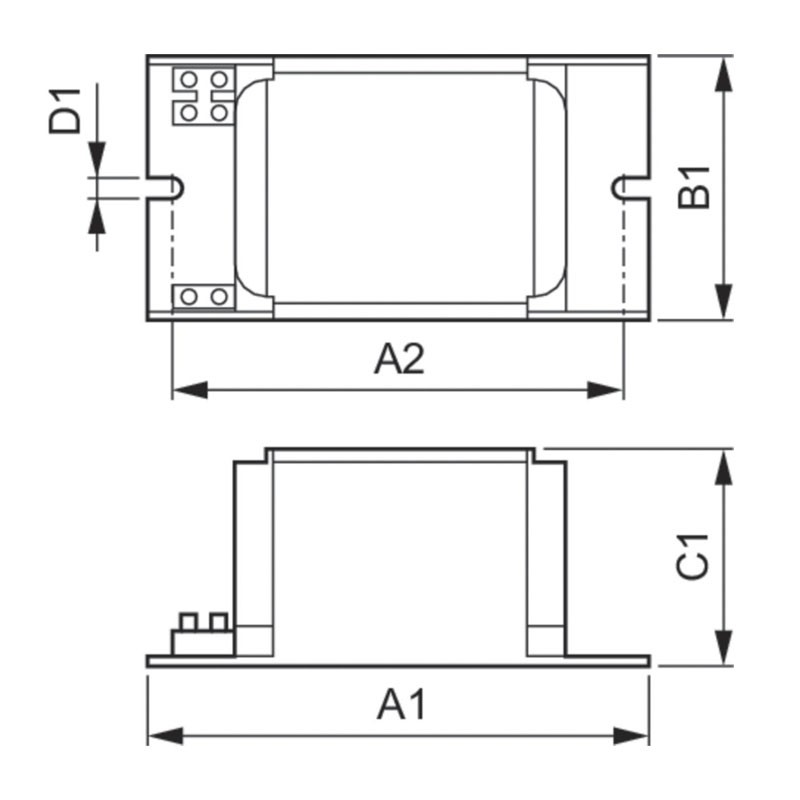

- Dimensions: D1 6.2mm - C1 65.0mm - A1 134.0mm - A2 113.0mm - B1 76.0mm
€62.98
Items Available: 9
: 3
Other technical features:
- Sheathing length 7.0 mm
- Reactor contact cable cross section 1.00-2.50 mm²
- Connector type Screw
- Capacitor 18µF/250V
- Specified ballast-lamp power 250W
- Storage temperature (Max) 130°C
- Storage temperature (Min) -30 °C
- Winding temperature (Max) 130 °C
- Delta-T Normal conditions 80 °C to 85 °C
- Approval Marks: CE Mark Certified ENEC
- Net weight: 2.245 kg
There are no reviews
Data sheet
- Type: Electronic ballasts
