TCI linear multi-lamp electronic ballast 2X21-35 137998
TCI 137998
8010703150348

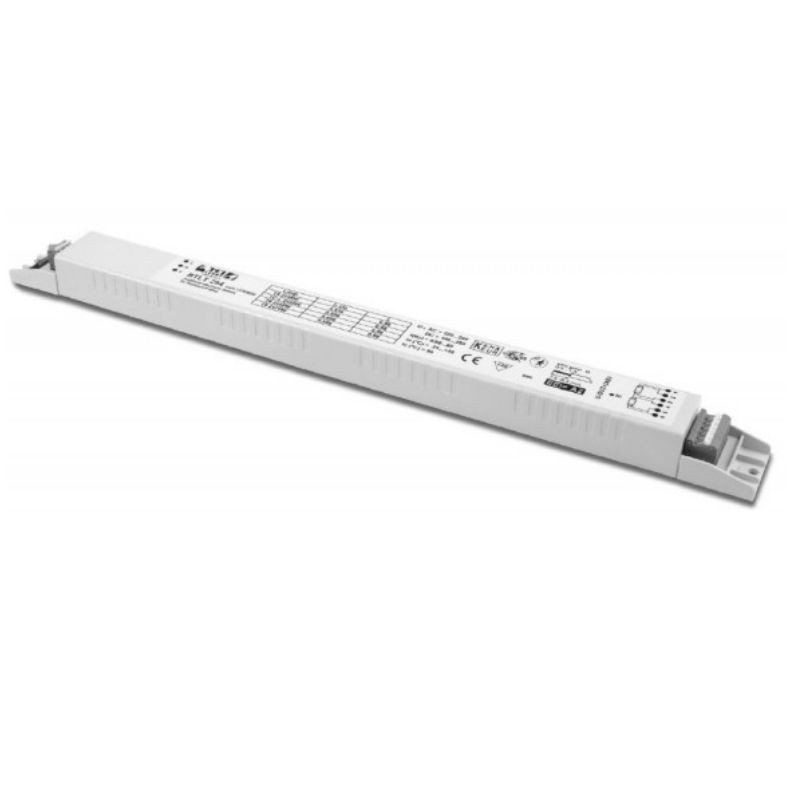

TCI BTLT 235 linear multi-lamp/multi-power electronic ballast with the following characteristics:
- Power supply: 220/240V
- Frequency: 0/50...60 Hz

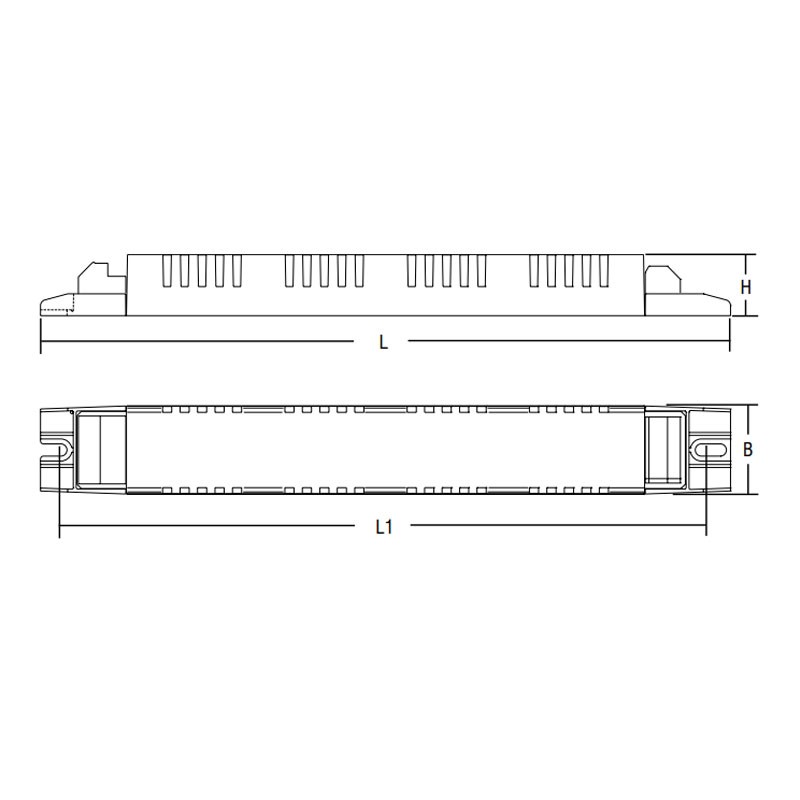

- Dimensions: L 237 - L1 220 - B 30 - H 21
- Power/consumption: 2x21, 2x28, 2x35 watts
- Lamp cap: T5
- Cap attachment: G5
- Power factor: 0.97
- CT: -25/+55°C
- TC: +85°C
- Weight: 180 grams
TCI linear multi-lamp electronic ballast 2X21-35 137998
€14.49
€14.49
Tax included
Tax included
Pay in installments with Klarna
Items Available: 45
Strengths:
- Electronic ballast to be incorporated
- Can be used for luminaires in protection class I and II (BTLT 280 class I)
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Quick-connect terminals
- Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2 )
- Fastening of the power supply via screw slots
- Ignition with preheating for long lamp life
Protections:
- Extra mains voltage
- Lamp disconnection
- Failed lamp
- Lamp end-of-life
There are no reviews
Data sheet
- Type:
- Electronic ballasts
