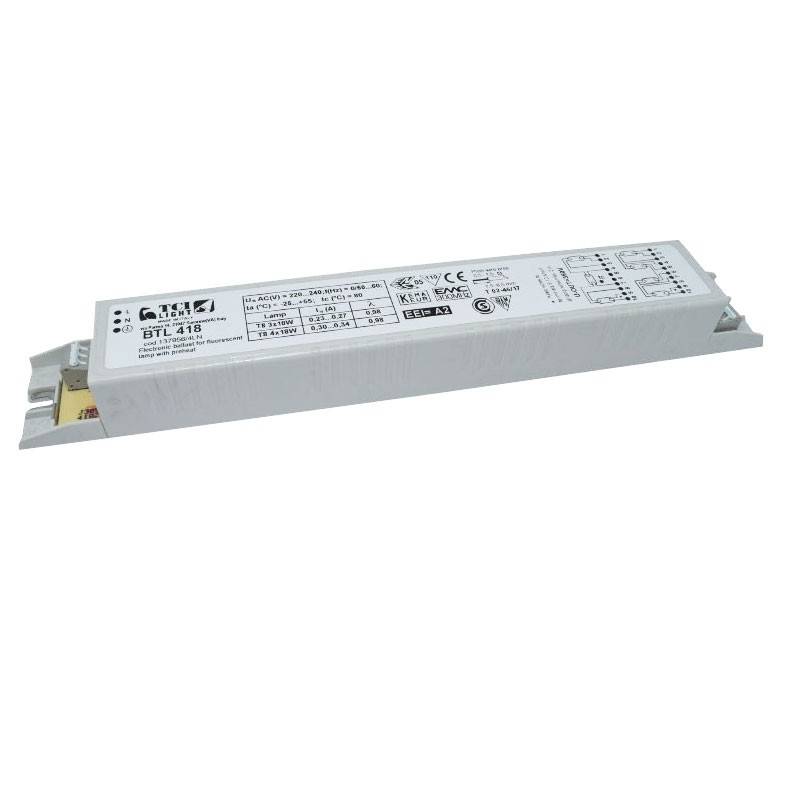

TCI BTL418 linear multi-lamp electronic ballast 4X18W T8 137956/4LN
TCI 137956/4LN
Electronic linear multi-lamp ballast TCI BTL 418, with the following characteristics:
- Rated voltage: 220/240V
- Operating voltage: 198 ÷ 264V
- DC voltage: 176 ÷ 264V
- Frequency: 50 to 60 Hz
- Power: 4x18W
- Lamp: T8
- Cap connection: G13

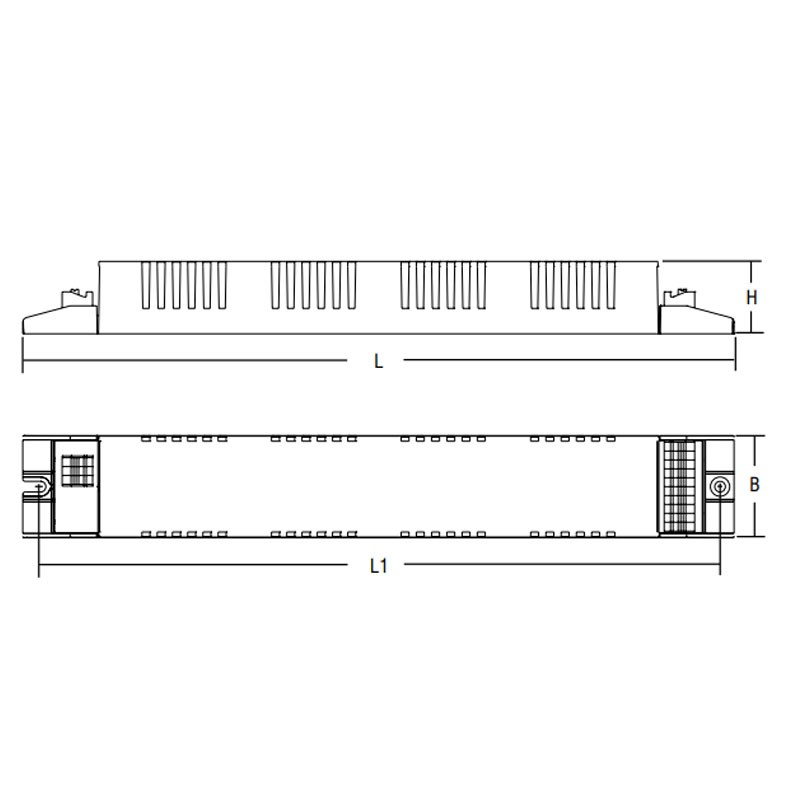

- Dimensions: L 280, L1 265, B 40, H 29
- PF: 0.98
- Working temperature: -25/+55°C
- Weight: 195 grams
TCI BTL418 linear multi-lamp electronic ballast 4X18W T8 137956/4LN
€16.01
€16.01
Tax included
Tax included
Pay in installments with Klarna
Items Available: 71
Advantages:
- Can be used for luminaires in protection class I and II (BTL 336 class I)
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Quick-connect terminals
- Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2)
- Fastening of the power supply via screw slots
- Ignition with preheating for long lamp life
Data sheet
- Type:
- Electronic ballasts
