TCI linear multi-lamp electronic ballast 1x24W to 1x40W 137998/139
TCI 137998/139

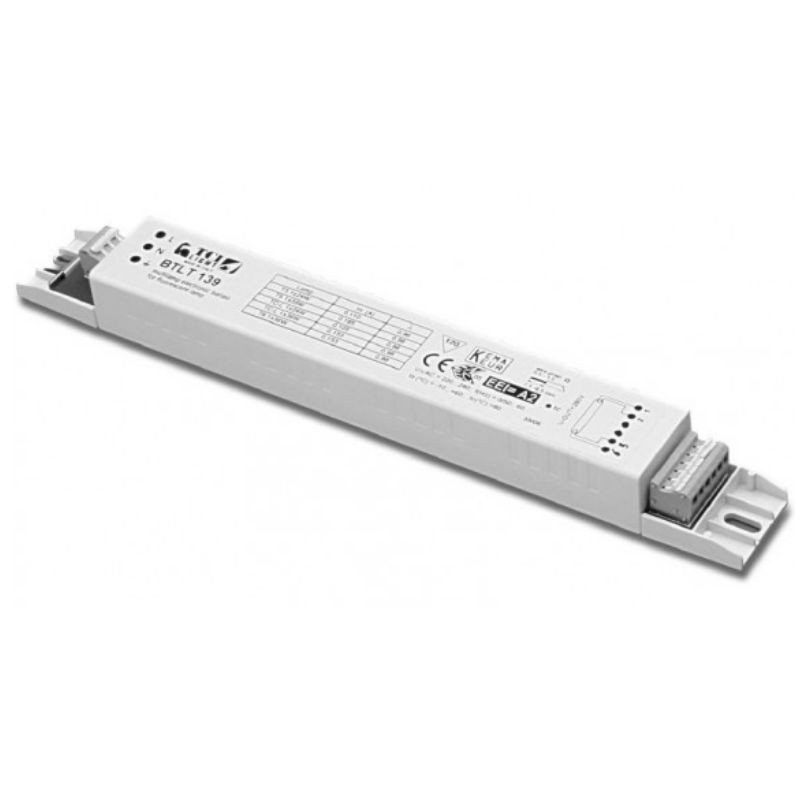

TCI BTLT 139 electronic linear multi-lamp/multi-power ballast with the following characteristics:
- Rated voltage: 200/240V
- Frequency: 0/50...60 Hz
- Wattage/Watt: 1x24W to 1x40W
- Lamps: T5, TC-L, T8
- Cap connection: G5, 2G11, G13

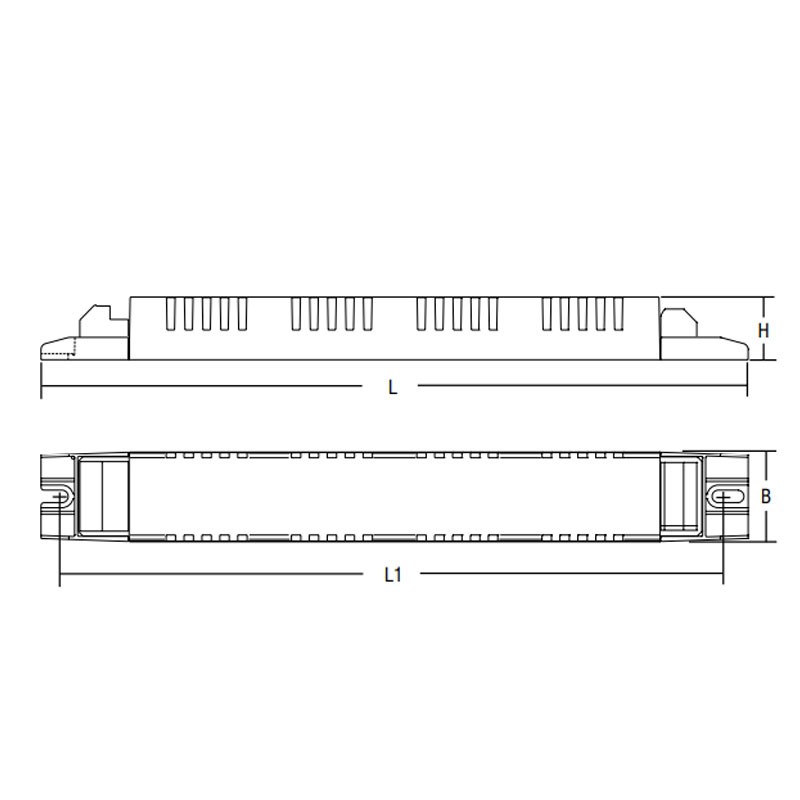

- Dimensions: L 237, L1 220, B 30, H 21
- Power factor: 0.91C
- TA: -25/+60°C
- TC: +75°C
- Net weight: 135 grams
TCI linear multi-lamp electronic ballast 1x24W to 1x40W 137998/139
€13.73
€13.73
Tax included
Tax included
Pay in installments with Klarna
Items Available: 42
Advantages:
- Electronic ballast to be incorporated
- Can be used for luminaires in protection class I and II
- Suitable for connection with emergency luminaires according to EN 60598-2-22
- Quick-connect terminals
- Opposing input and output terminals (connector cross section: 0.5÷1.5 mm2 )
- Fastening of the power supply via screw slots
- Ignition with preheating for long lamp life
There are no reviews
Data sheet
- Type:
- Electronic ballasts
